CCMHCW PWM DC Motor Speed Controller External Speed Control Knob 12V-40V Universal 10A with InsuranceItem NO.: MK00092
-
Customized Requirements
- Quantity
-
-
- Product Name: CCMHCW PWM DC Motor Speed Controller External Speed Control Knob 12V-40V Universal 10A with Insurance
- Item NO.: MK00092
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 10A , PWM DC Motor Speed Controller , 12V-40V , CCMHCW , External Speed Control Knob , with Insurance
- Creation Time: 2024-05-27

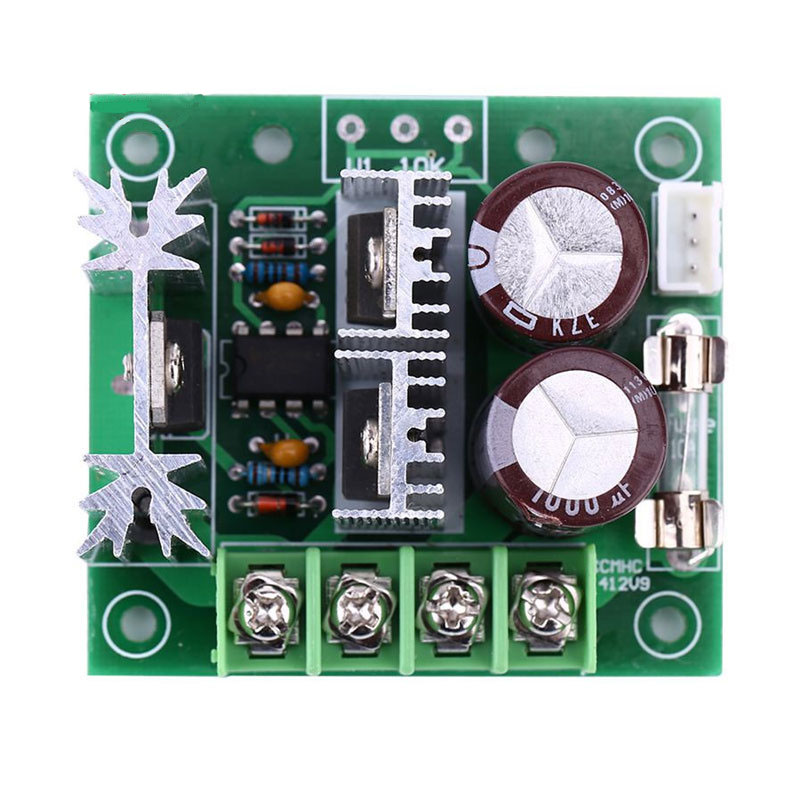

CCMHCW PWM DC Motor Speed Controller
Technical Parameter:
● Model: CCMHCW
● Working voltage: DC 12V-40V
● Control power: 0.01-400W
● Rated current: 8A
● Maximum current: 10A
● Quiescent current: 0.02A (standby state)
● PWM pulse width speed regulation range: 10%-100%
● Potentiometer: resistance value B100K, wire length 20cm, opening 8mm
● The output voltage is about 0-100% of the input voltage

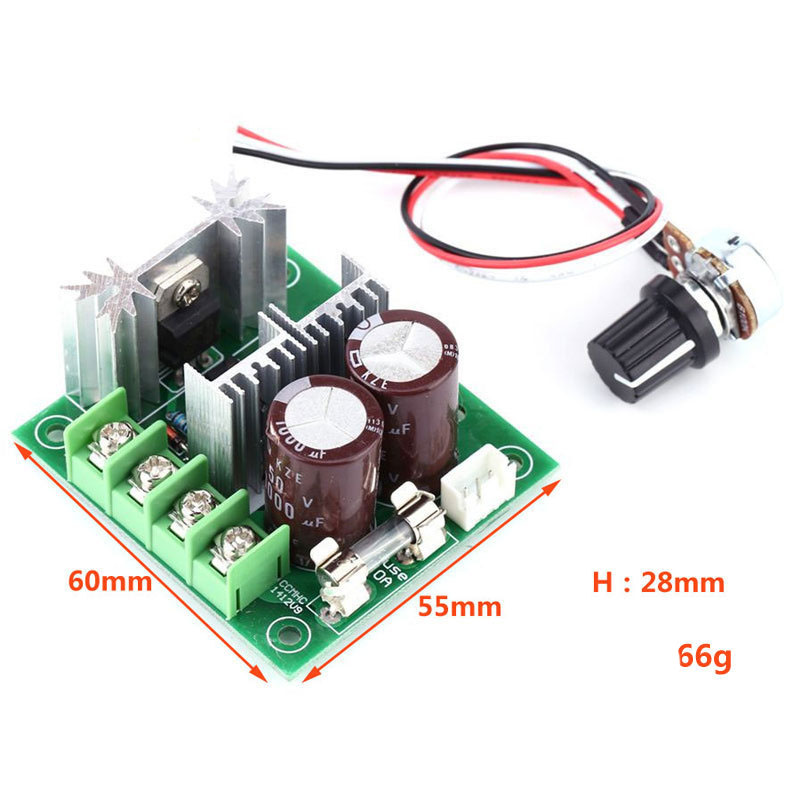

● Size: 60mm*55mm*28mm
● Weight: 66g
● PWM frequency: 13KHZ
● If forward/reverse function is required, customers can connect an external forward/reverse switch
● A lead-type potentiometer can be connected (to use this interface, the fixed potentiometer on the board needs to be removed first)

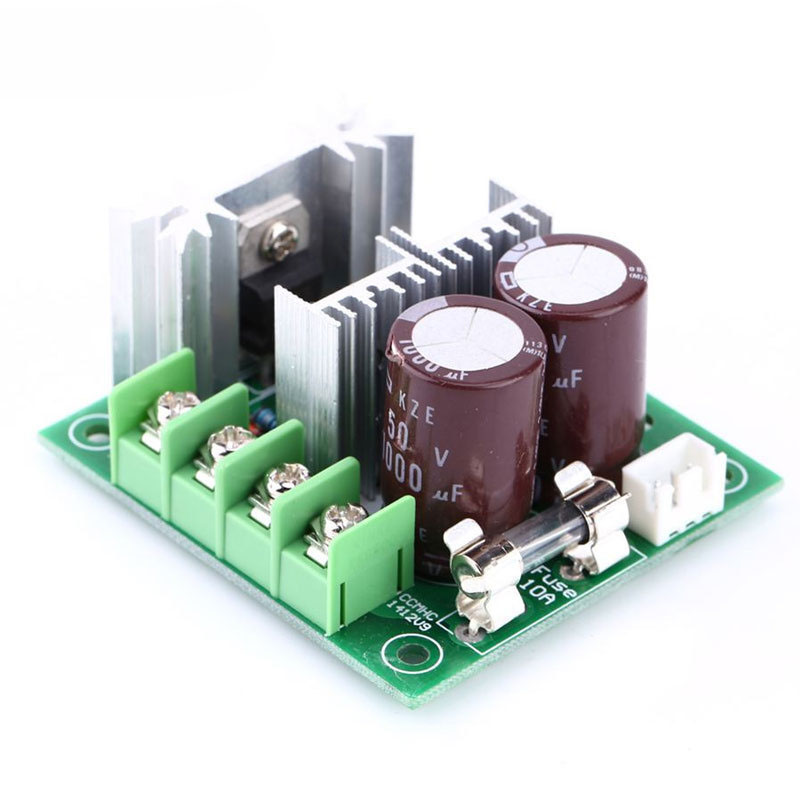

● Equipped with 10A fuse (5mm*20mm standard size), with power reverse connection protection, overvoltage protection function.
