500W DC 12V 24V to AC 18V 0-220V-380V Inverter Front Booster ModuleItem NO.: MK02064

500W Inverter DC 12V 24V to AC 18V 0-220V-380V

Product Parameters:

● Power: 500W

● Input: DC12V

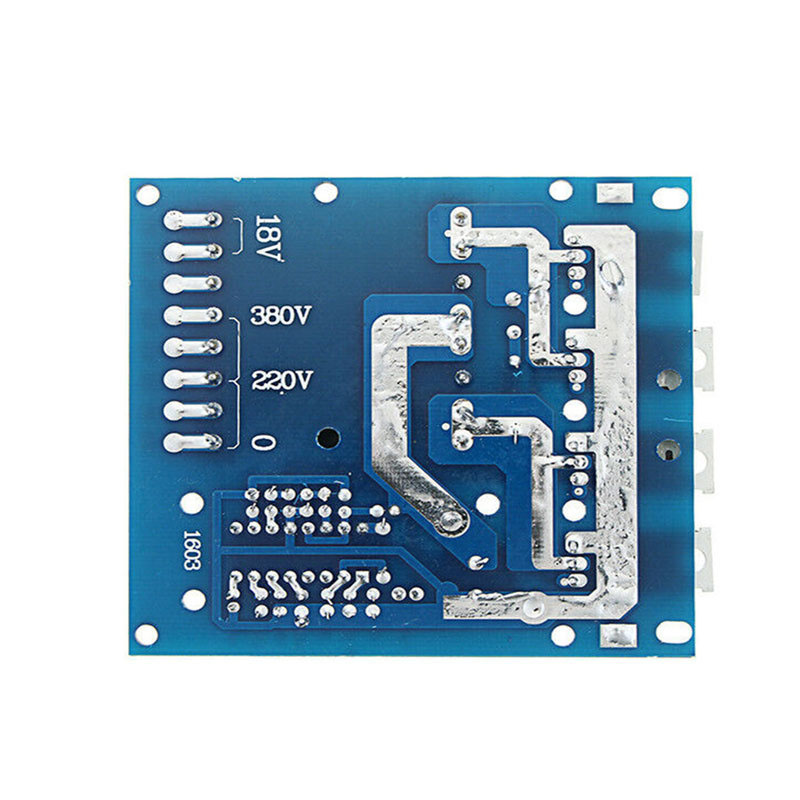

● Output: AC 0-220V -380V and AC18V

● Static no-load current: around 0.35A

● Output frequency waveform: 20KHZ high frequency square wave

● Protection: No protection

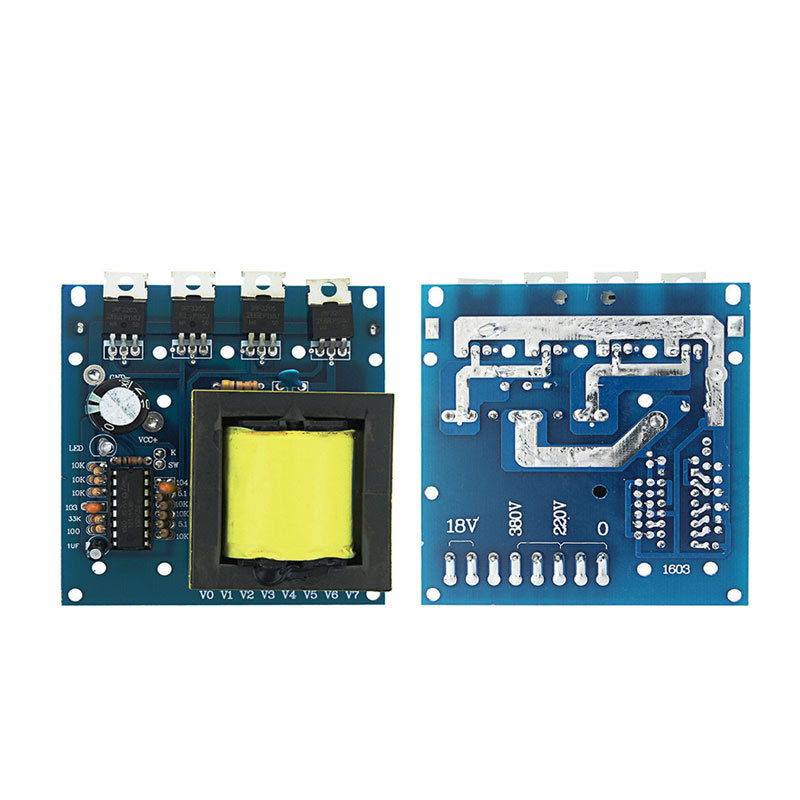

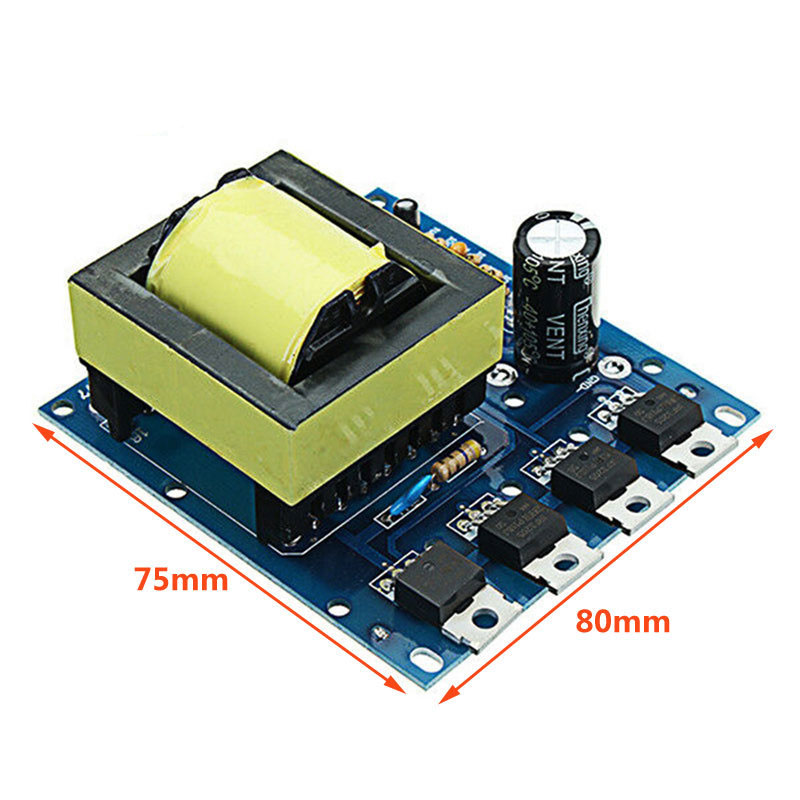

● The PCB board adopts military grade board, with a size of 8cm * 7.5cm

Performance Characteristics:

1. This product has a wide range of applications, with high energy efficiency, long lifespan, low power consumption, convenient and safe use, energy conservation and durability. It is a good helper for outdoor, night camp, night market vendors, and driving families in emergency power outages.

2. It can be used as a front-end boost inverter circuit for pure sine wave, corrected sine wave, single silicon machine, and four silicon machine. For electronic enthusiasts DIY production, maintenance replacement, manufacturer control cabinet supporting products, and so on..

3. Electrical appliances can be used: 0.1W-500W lighting fixtures, non inductive household appliances, small electric rice cookers, (note: supports all "electronic products"), such as "energy-saving lights, soldering, switch power supply, satellite TV receiver, light bulb, LED light, LED energy-saving light, fluorescent light, DVD player, VCD machine, EVD machine, liquid crystal TV, color screen TV, flat screen TV, laptop, computer, various computer monitors, all electronic charger products, etc." The above is for reference only

Attention:

1. This board is a high-frequency square wave AC output, so most inductive appliances cannot carry it!! For example, electric electromechanical fan coil transformer, etc

Additionally, simple resistive and capacitive voltage reducing small appliances, inexpensive resistive and capacitive voltage reducing LED lamps, etc. may not be usable

2. When connecting to a small load (LED light, mobile phone charger, DVD set-top box, etc.), it is recommended to connect to a gear with a low output voltage, such as 160V

3. It is recommended to increase the heat dissipation fins when working under high loads for a long time,

4. The power supply cannot be connected in reverse. Additionally, the power supply and power cord should have sufficient current

5. Do not overload or short-circuit without any protective output.

6. Many multimeter devices that output high-frequency square wave AC voltage cannot measure or display low or high (which is incorrect and not the actual voltage)

Special Reminder:

For electronic products, it is recommended to output a series of high-frequency diodes on our board for rectification into a DC output, as many switching power supplies and other electrical appliances use ordinary rectifier tubes to save costs. Therefore, connecting to the "high-frequency AC output" will cause the rectifier diodes of the electrical appliances to rapidly heat up and damage, leading to diode breakdown. Eventually, the board burned out.
