50V CNC Step-down Adjustable Power Supply Module Voltage and Current Meter Constant Voltage and Constant Current DC Stabilized Voltage LCD DisplayItem NO.: MK01929(WZ5005L)
-
Customized Requirements
- Quantity
-
-
- Product Name: 50V CNC Step-down Adjustable Power Supply Module Voltage and Current Meter Constant Voltage and Constant Current DC Stabilized Voltage LCD Display
- Item NO.: MK01929(WZ5005L)
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: CNC , LCD Display , 50V , Step-down Adjustable Power Supply Module
- Creation Time: 2024-05-13

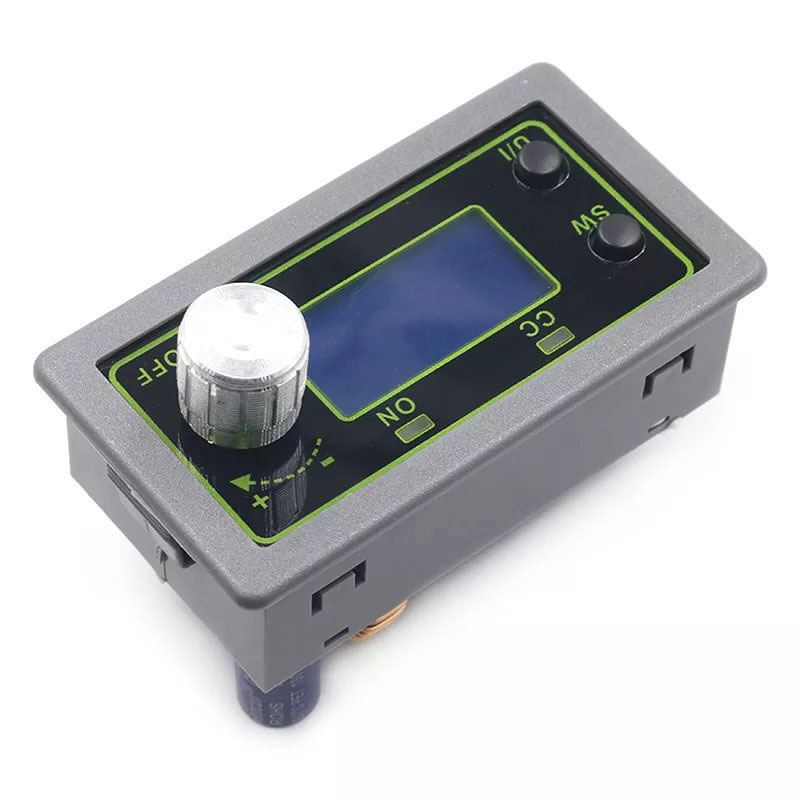

50V CNC Step-down Adjustable Power Supply Module
Product Features:

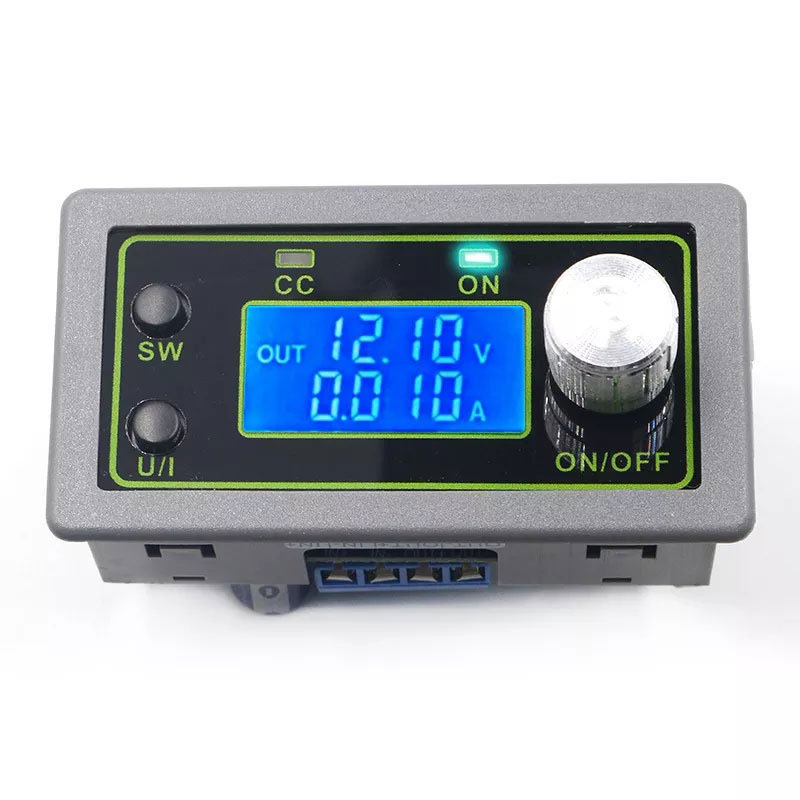

1. LCD can display input/output voltage, output current/output power/output capacity/output time;
2. CNC adjustment, precise and fast, with step-down output, output voltage of 0-50V can be adjusted arbitrarily, and limiting current of 0-5A can be adjusted arbitrarily;
3. Input end anti reverse connection protection, reverse connection will not burn out;
4. The output end is poured backwards without burning;
5. The module can be set to default on/off;
6. It has multiple software protection mechanisms and adjustable protection thresholds. When the working parameters of the module exceed the protection threshold, the output is automatically turned off.
7. Adopting synchronous rectification technology, with high conversion efficiency of over 90%;

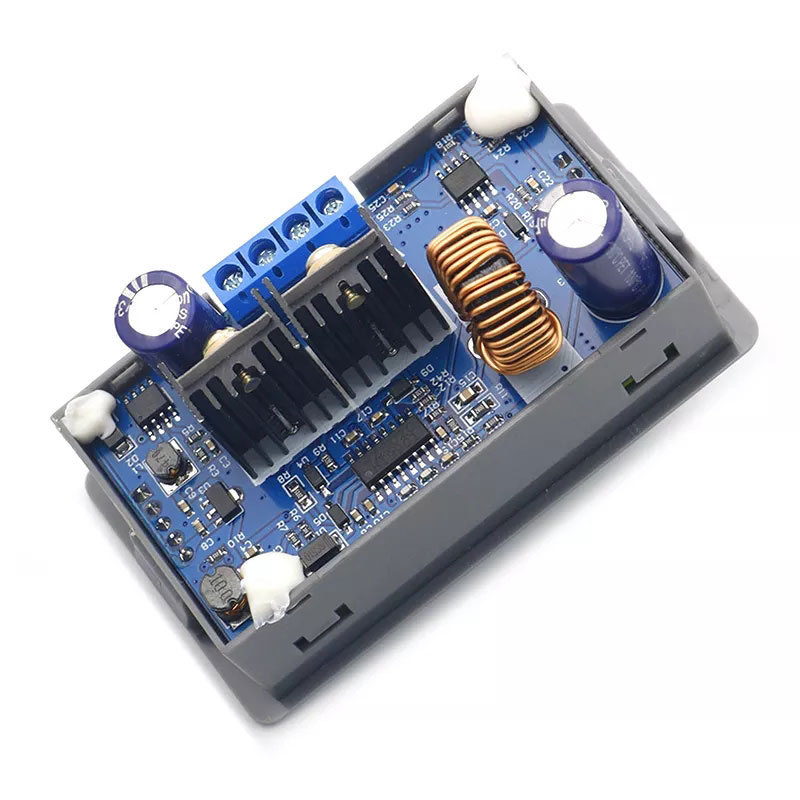

8. Add heat dissipation fins.
Product Parameters:
1. Model: WZ5005L
2. Display: LCD display
3. Input voltage range: 6-55.00V
4. Input voltage resolution: 0.01V
5. Output voltage range: 0-50.00V
6. Output voltage resolution: 0.01V
7. Output current range: 0-5.000A
8. Output current resolution: 0.001A
9. Output power range: 0-250.0W
10. Input voltage accuracy: ± (1%+5 words)
11. Output voltage accuracy: ± (0.3%+5 words)
12. Output current accuracy: ± (0.5%+5 words)
13. Typical output ripple value: 150mV peak
14. Normal operating temperature range: -10 ℃~40 ℃
15. Capacity measurement range: 0-99.99AH
16. Statistical error of capacity and energy: ± 2%
17. Statistical time range: 0-100 hours
18. Reduced voltage working mode: pressure difference>0.05%+1V
19. Product size: length * width * height 79mm * 43mm * 42mm
20. Including packaging weight: approximately 73g
21. Soft start: Yes
22. Protection mechanism:
● Input anti reverse connection;
● Input undervoltage protection (5.8-50V adjustable, default 5.8V)
● Output overvoltage protection (0-51.00V adjustable, default 51V)
● Output overcurrent protection (0-5.100A adjustable, default 5.1A)
● Output Overpower Protection (0-260W adjustable, default 260W)
● Overtime protection (adjustable from 0 to 100h, default off)
● Overcapacity protection (0-99.99Ah adjustable, default off)
