Home>Electronic Modules>Power Module>Waterproof Electricity Meter Lithium Storage Battery Digital Display Voltage Meter 12V24V36V48V60V72V84V
Waterproof Electricity Meter Lithium Storage Battery Digital Display Voltage Meter 12V24V36V48V60V72V84V

Waterproof Electricity Meter Lithium Storage Battery Digital Display Voltage Meter 12V24V36V48V60V72V84VItem NO.: MK01563

US$ 3.56
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Waterproof Electricity Meter Lithium Storage Battery Digital Display Voltage Meter 12V24V36V48V60V72V84V
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Waterproof Electricity Meter



    Product features:



    1. The dual display of power and voltage is clear at a glance. More intuitive display. The upward 8-bar color bar displays the battery level (2 red and 6 green). Downward voltmeter (displaying battery voltage), with higher precision in automatic decimal point shift of the voltmeter.

    2. It has a wide range of applications, including lead-acid batteries, automotive batteries, electric vehicle batteries, and various types of battery electric devices. The principle of the existing voltage calculation is the same as that of the electric vehicle's electric quantity display meter.

    3. The meter head automatically recognizes the voltage and quantity, and has a reverse connection protection function (reverse connection will not burn)



    Technical parameters:



    Voltage allowable error: ± 1%;

    8 battery levels: 10%, 25%, 40%, 50%, 60%, 75%, 90%, fully charged

    Working current: 5-15 ma

    Refresh speed: approximately 300mS once

    Display method: Three position 0.56 "LED digital tube

    Display color: red blue

    Lead length: 15cm

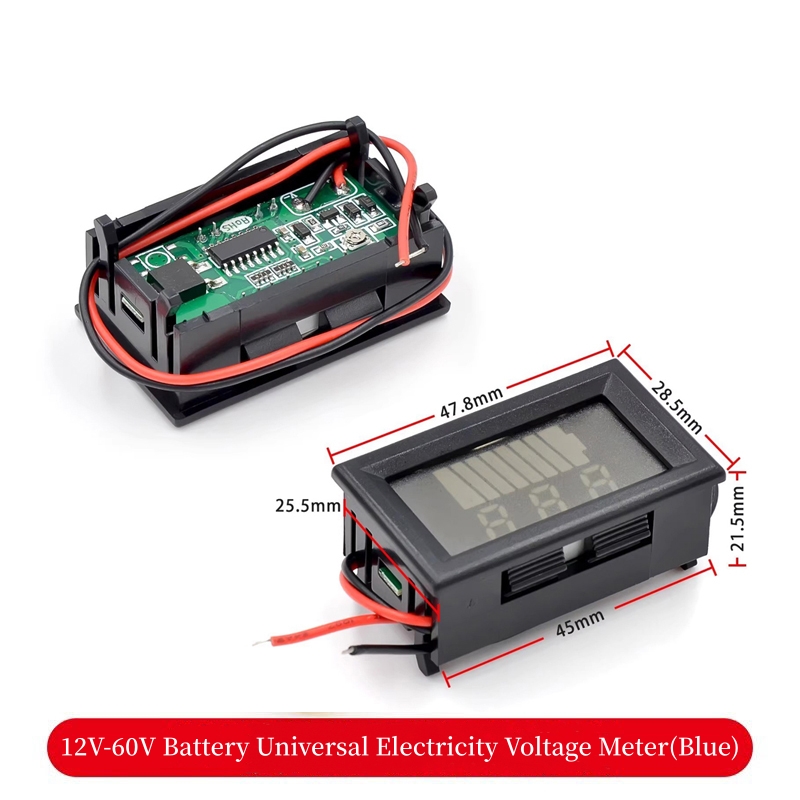

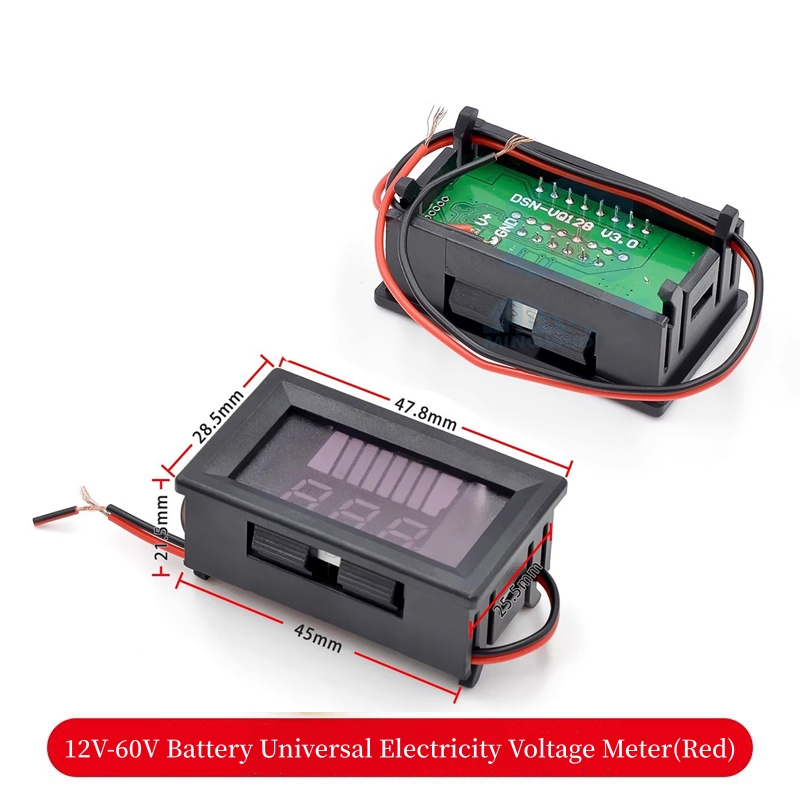

    Overall dimensions: 48 x 29 x 22 mm, length x width x thickness;

    Installation hole: 46 x 27 mm

    Net weight: 15g

    Gross weight: 17g

    Working temperature: -10 ℃~65 ℃
