- Product Name: ACS712 Module 5A 20A 30A Range Current Detection Board Hall Current Sensor 05B
- Item NO.: MK00828
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: 20A , 30A , 5A , ACS712 , ACS712 Module , Current Detection Board , Hall Current Sensor
- Creation Time: 2024-04-15

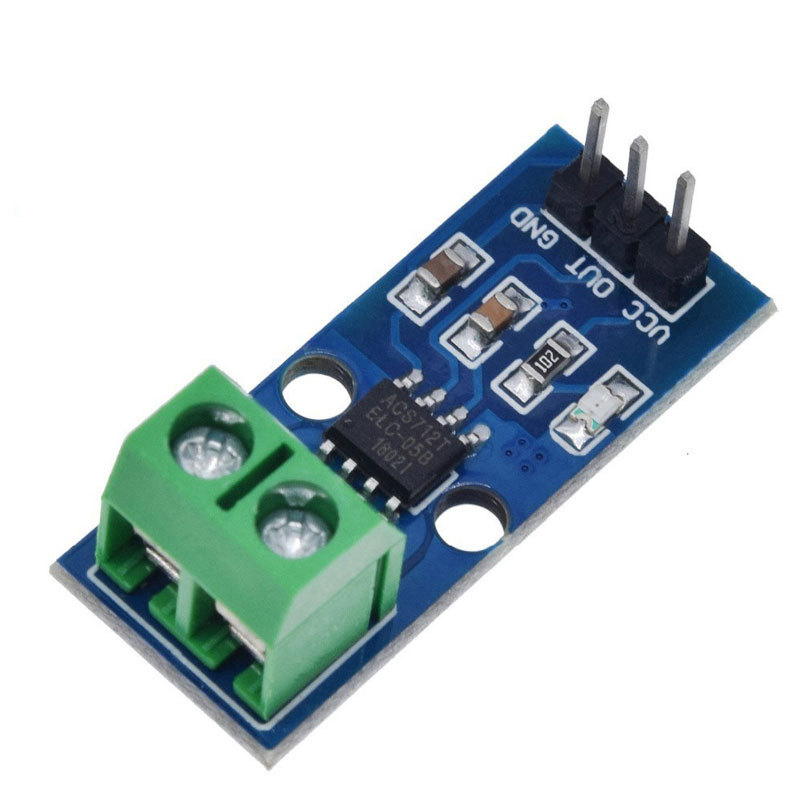

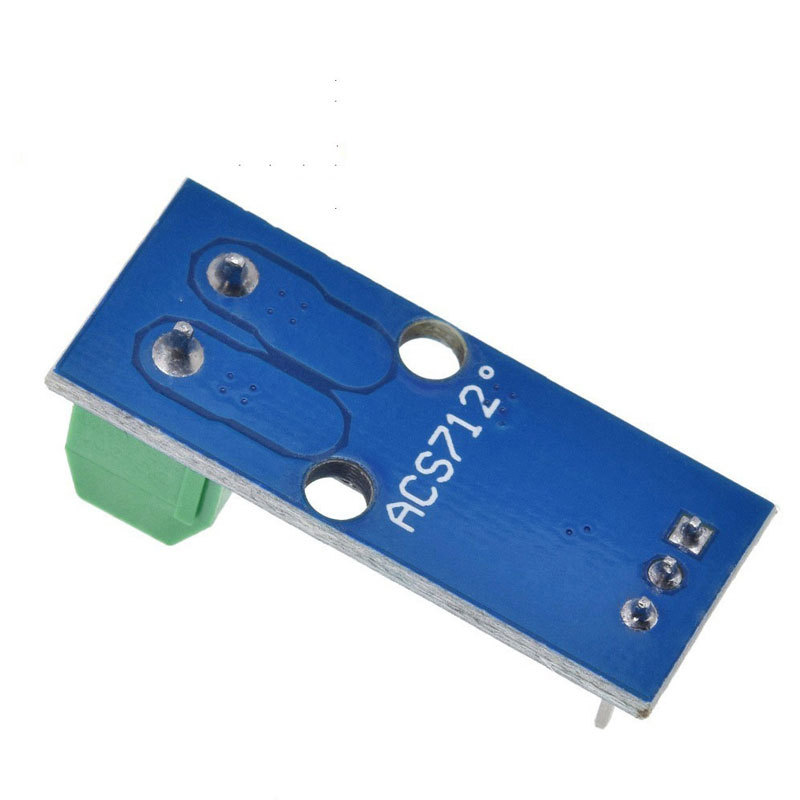

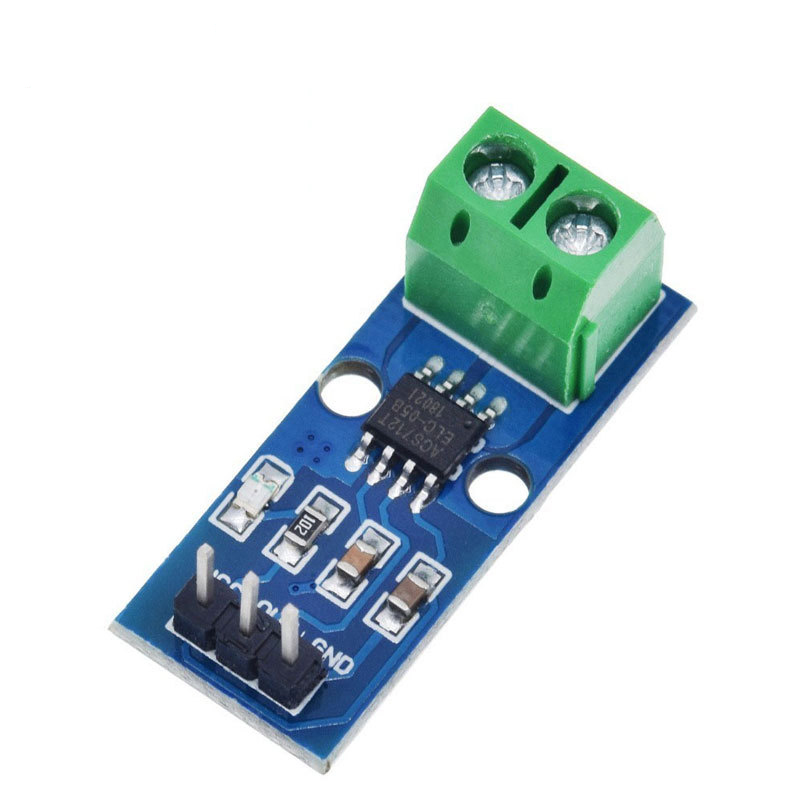

5A/20A/30A Range ACS712 Module
Product Information:
● Pin 5V power supply, onboard power indicator
● When no detection current flows, the output voltage is VCC/2

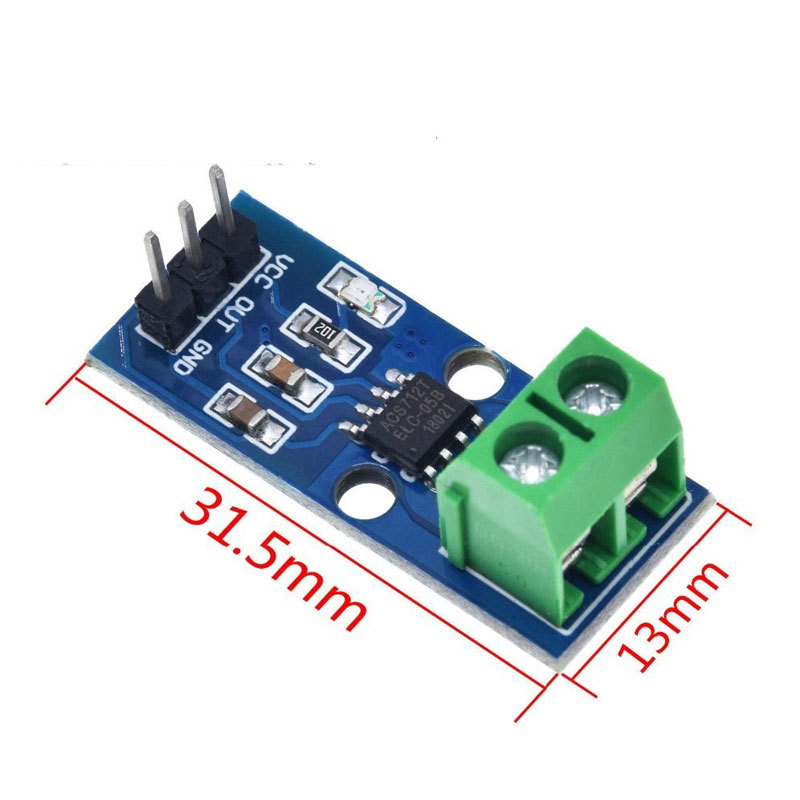

● PCB board size: 31 mm*13 mm
● Weight: 3.8g
5A Range Module Parameters:
● Current sensor chip: ACS712ELC-05B
● Module measurement: ±5A current
● Corresponding analog output: 185mV/A
● Output voltage: VCC/2
20A Range Module Parameters:
● Current sensor chip: ACS712ELC-20A
● Pin: 5V power supply
● Onboard power indicator: yes
● Module measurement: ±20A current
● Corresponding analog output: 100mV/A
● Output voltage: VCC/2
30A Range Module Parameters:
● Current sensor chip: ACS712ELC-30A
● Pin: 5V power supply
● Onboard power indicator: yes
● Module measurement: ±30A current
● Corresponding analog output: 66mV/A
● Output voltage: VCC/2
