Current to Voltage Module 0/4-20MA to 0-3.3V5V10V Voltage Transmitter Signal Conversion and ConditioningItem NO.: 04-20MA
-
Customized Requirements
- Quantity
-
-
- Product Name: Current to Voltage Module 0/4-20MA to 0-3.3V5V10V Voltage Transmitter Signal Conversion and Conditioning
- Item NO.: 04-20MA
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: Current to Voltage Module , Voltage Transmitter , Signal Conversion and Conditioning
- Creation Time: 2024-04-19

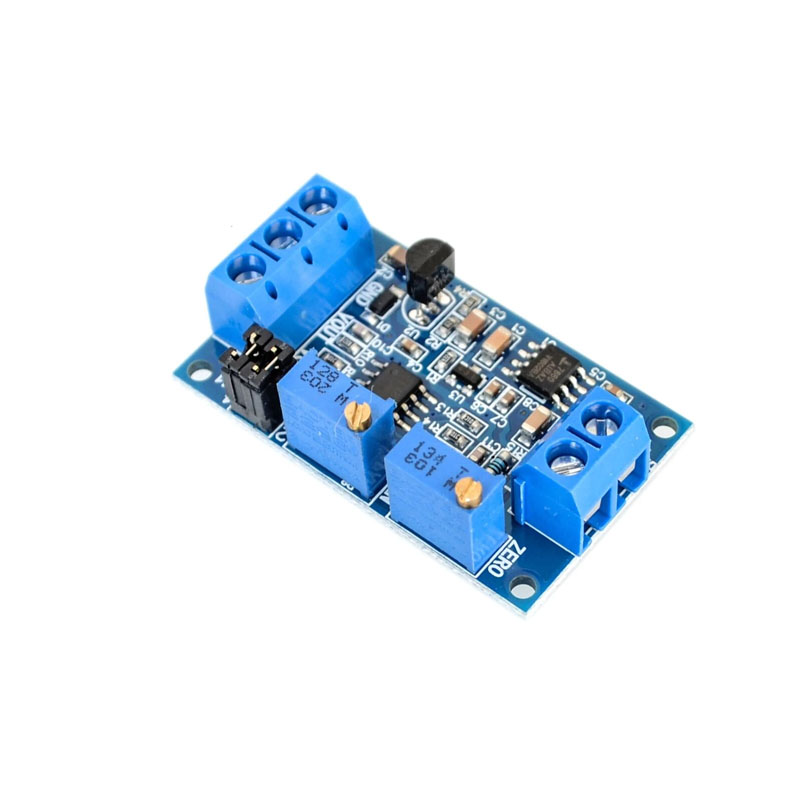

Current to Voltage Module
Product Introduction:
In the process of circuit signal transmission, the voltage signal will weaken with the increase of transmission distance, and using current transmission can avoid signal weakening. This module is used at the end of current signal transmission to convert the signal into a voltage signal for microcontroller detection. The current input supports 4-20Ma, 0-20mA, and the voltage output supports 0-3.3V 0-5V 0-10V.
Product highlights:
Wide power supply voltage range, supporting multiple output voltage ranges;
Both zero and full scale can be adjusted independently;
High stability, good linearity, industrial grade;
The current signal sampling resistor adopts high-precision color ring resistor, which has high accuracy, small temperature drift, and high power.
Instructions for use:

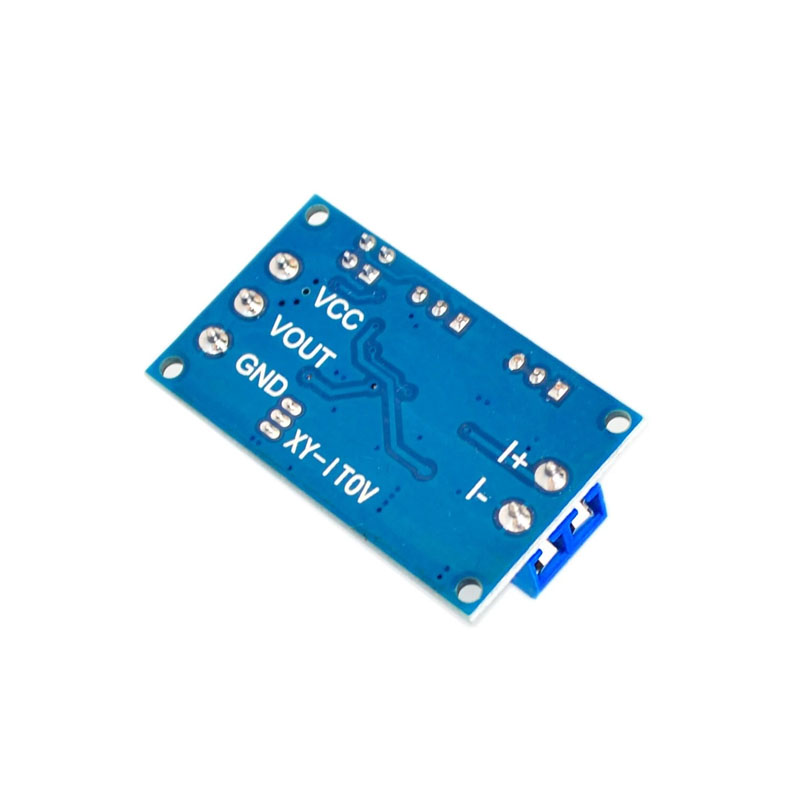

1. The module is wired according to the definition, with a power supply voltage of 7-36V (if the output is to reach 10V, the power supply voltage must be greater than 12V)
After powering on, the D2 light should be on, otherwise please check the wire connection. The board is equipped with reverse connection protection, and reverse connection does not burn.
3. When the current input is low (0mA or 4mA), adjust the ZERO potentiometer to make the VOUT output low (0.0V or other voltage)
4. When the current input is a value (20mA), adjust the SPAN potentiometer to make the VOUT output a value (3.3V or 5V or 10V, and when the input is 4-20mA, the output can be as small as 2.5V).
