GP2Y0A02YK0F Infrared Ranging Sensor 20-150CM Distance Detection Distribution CableItem NO.: GP2Y0A02YK0F
-
Customized Requirements
- Quantity
-
-
- Product Name: GP2Y0A02YK0F Infrared Ranging Sensor 20-150CM Distance Detection Distribution Cable
- Item NO.: GP2Y0A02YK0F
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: GP2Y0A02YK0F , Infrared Ranging Sensor , 20-150CM , Distance Detection
- Creation Time: 2024-04-15

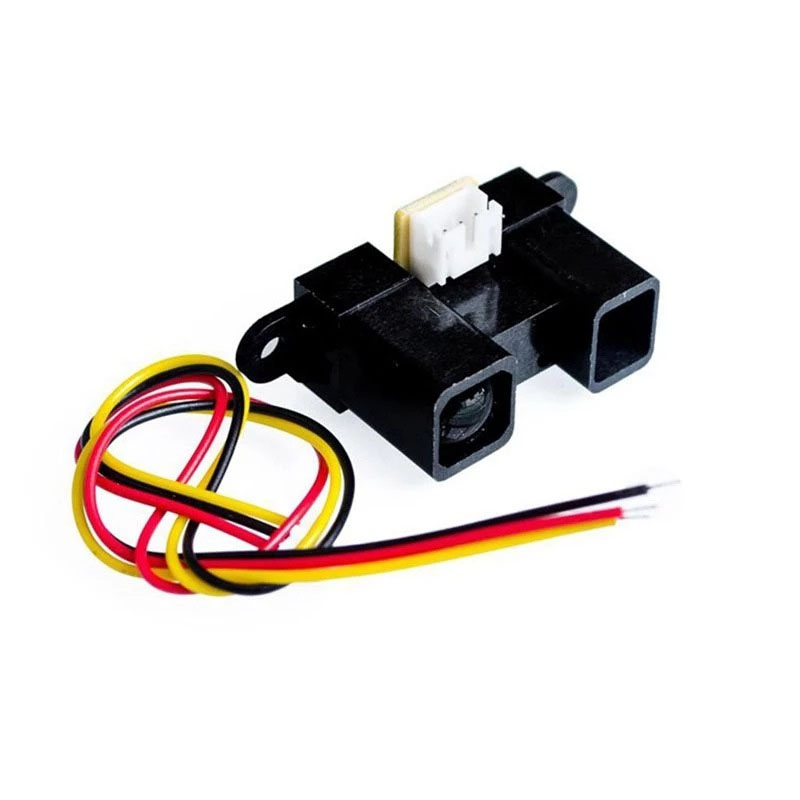

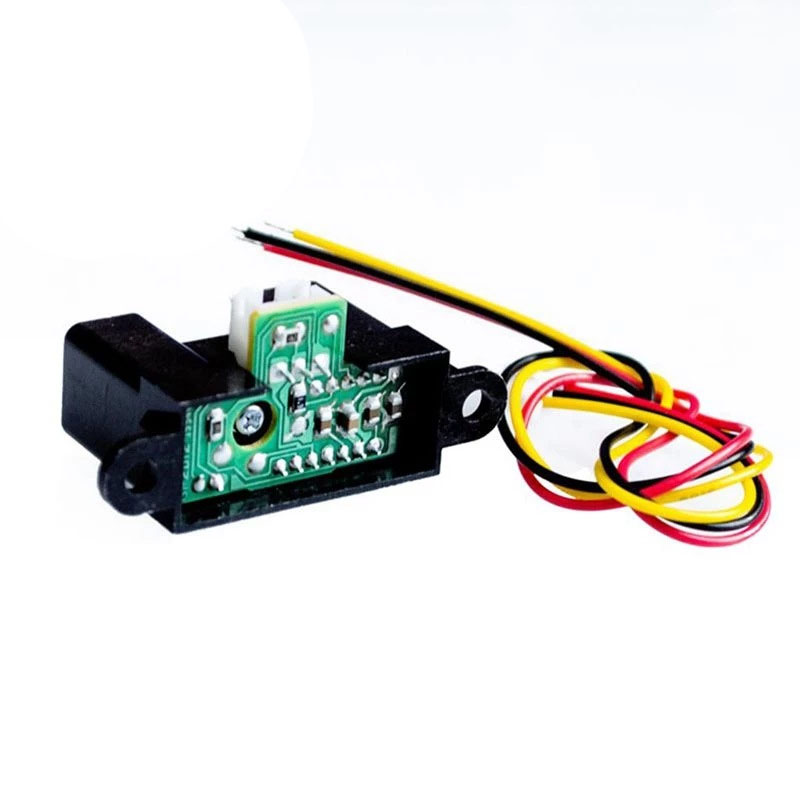

GP2Y0A02YK0F Infrared Ranging Sensor
Information:
GP2Y0A02YK0F is a distance measurement sensor module. It consists of three parts: PSD (position sensitive detector), IRED (infrared emitting diode), and signal processing circuit. Due to the use of the triangulation method, the material, ambient temperature, and measurement time of the measured object will not affect the measurement accuracy of the sensor. The sensor output voltage value corresponds to the detected distance. The distance of the detected object can be obtained by measuring the voltage value, so this sensor can be used for distance measurement, obstacle avoidance, and other occasions.
Technical Parameters:
1. Distance measurement range: 20 to 150 cm
2. Signal output type: voltage analog signal
3. Size:44.4mm × 19 mm
4. Power consumption: nominal value 33 mA
5. Power supply voltage: 4.5 to 5.5 V
6. The accuracy is related to the number of AD bits collected and the conversion calculation formula. Generally, 10 AD can reach 0.1 CM
