RCWL-1670 Waterproof Transceiver Split Ultrasonic Ranging Module 1.5uA@3.3V Ultra Low Power ConsumptionItem NO.: RCWL-1670
-
Customized Requirements
- Quantity
-
-
- Product Name: RCWL-1670 Waterproof Transceiver Split Ultrasonic Ranging Module 1.5uA@3.3V Ultra Low Power Consumption
- Item NO.: RCWL-1670
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Waterproof , RCWL-1670 , Transceiver Split Ultrasonic Ranging Module
- Creation Time: 2024-04-12

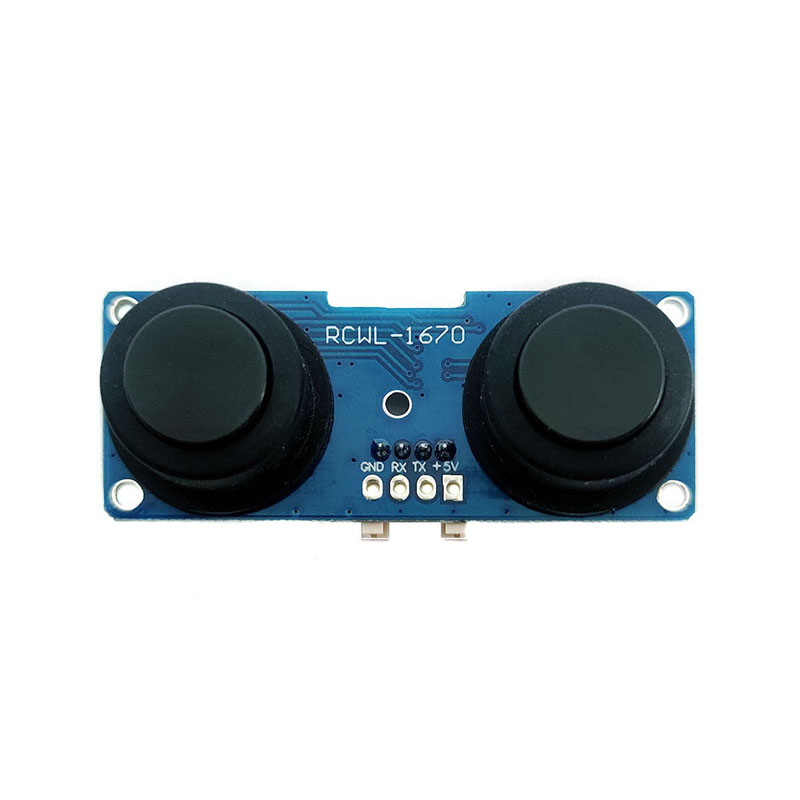

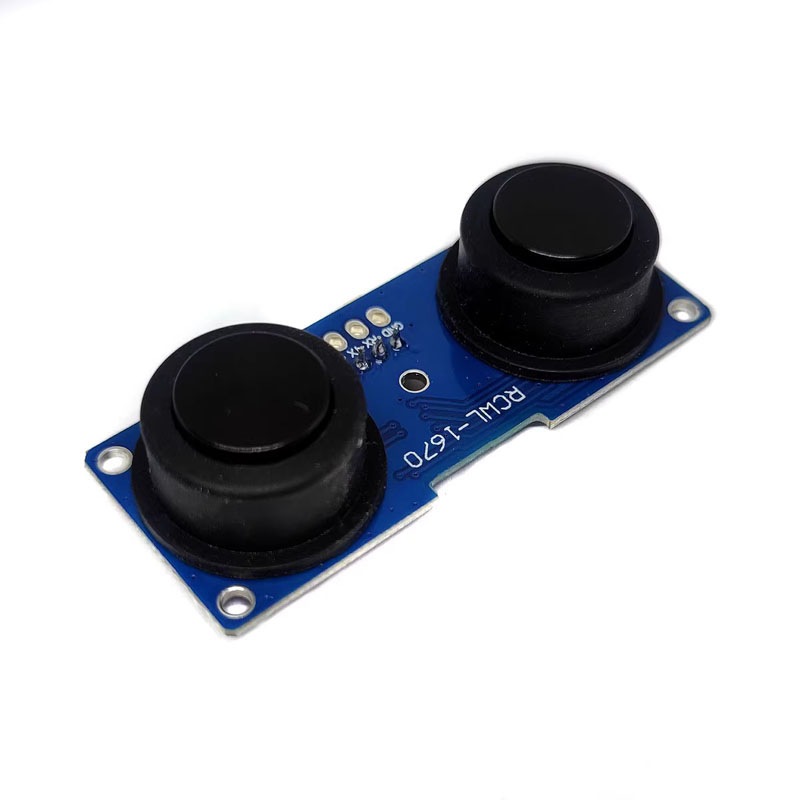

RCWL-1670 Waterproof Ultrasonic Ranging Module
Product Overview:

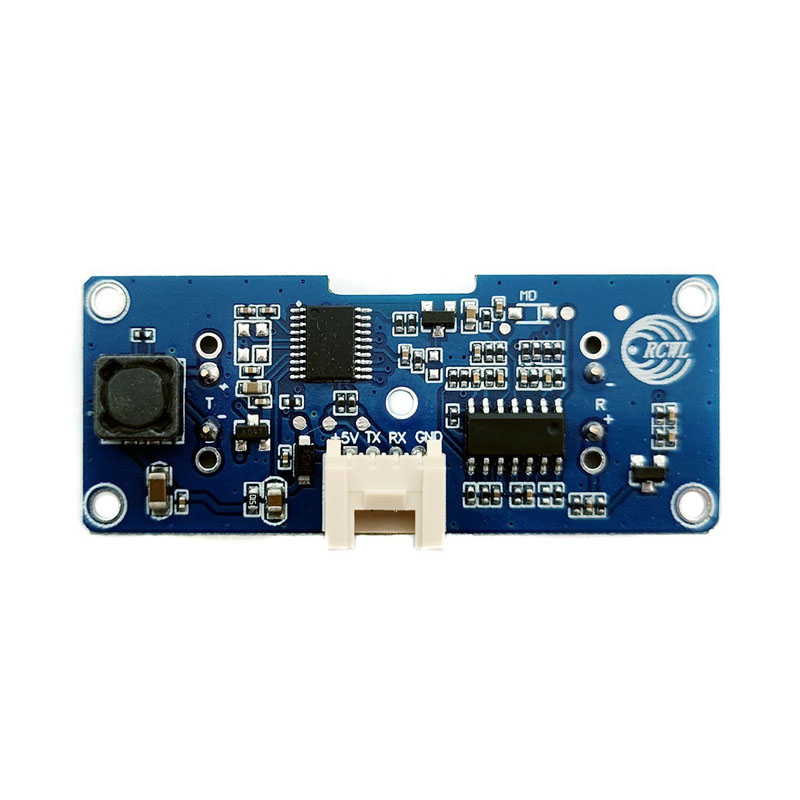

The 1670 is a waterproof, transmitter and receiver split ultrasonic ranging module. 2CM-400CM ranging range, 3-5 V wide voltage operation, 1.5uA@3.3V / 3.5uA@5V Ultra low standby power consumption. The module includes a transceiver split waterproof ultrasonic sensor and a control circuit. The external control software is compatible with the HC-SR04 module.
The module has a waterproof and dustproof function, suitable for wet and harsh measurement occasions. The module has ultra-low standby power consumption and is suitable for battery applications.
Main Features:
● Working voltage: 3-5. 5V
● Working current: 6mA
● Standby current: 1.5uA@3.3V / 3.5uA@5V
● Software compatible with HC-SR04
● 2CM blind zone, 4M typical farthest ranging
● 50mS measurement cycle
Typical Applications:
● Outdoor robot obstacle avoidance
● Liquid level, water level measurement
● Garbage can detection
● Other ranging applications
