Home>Electronic Modules>Other Electronic Modules>Rotary Encoder Encoding Switch/EC11/Audio Digital Potentiometer With Switch Five Pin Handle Length 20MM

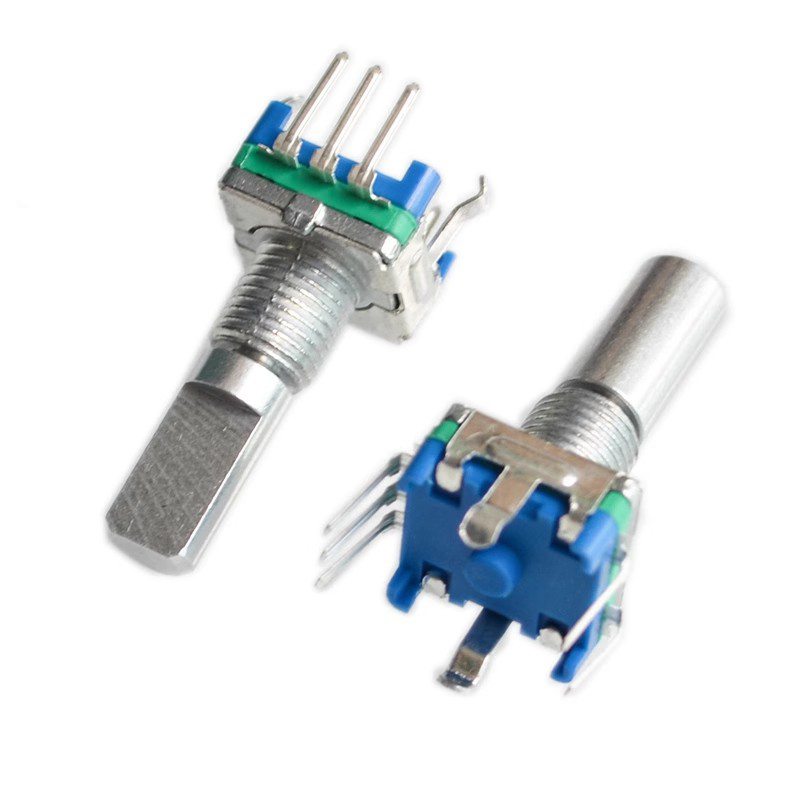

Rotary Encoder Encoding Switch/EC11/Audio Digital Potentiometer With Switch Five Pin Handle Length 20MM

Rotary Encoder Encoding Switch/EC11/Audio Digital Potentiometer With Switch Five Pin Handle Length 20MMItem NO.: MK00881

US$ 2.74
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Rotary Encoder Encoding Switch/EC11/Audio Digital Potentiometer With Switch Five Pin Handle Length 20MM
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Rotary Encoder Encoding Switch EC11



    Product Introduction:



    EC11I encoders are also known as chip mounted encoders, switch encoders, rotary encoders, automotive encoders, etc. The EC11I encoder has 20 pulse 20 positioning points, packaged in 250pcs/box, adjustable shaft half handle/threaded handle, and other types, with a shaft length range of 20mm. No screws provided



    The EC11I series encoder is mainly used in fields such as automotive electronics, multimedia audio, instruments and meters, household appliances, smart homes, computer peripherals, medical devices, etc. Please note that the encoder should not be stored in high temperature, humidity, or corrosive areas. Any unused products after unpacking should be stored in a moisture-proof and gas proof environment.



    Product parameters:



    Operating temperature range: -30 ℃ to+80 ℃

    Storage temperature range: -40 ℃ to+85 ℃

    Rated voltage: DC 5V

    Full rotation angle: 360 degrees (without stop)

    Slewing life: 30000+200 Cycles

    Contact resistance: ≤ 100m Ω

    Insulation impedance: above 100M Ω

    Oscillation: ≤ 10mS press

    Service life: 20000 ± 200 cycles (0.5 stroke)

    15000 ± 200 times (1.5 stroke)
