Home>Electronic Modules>Power Module>DC-DC LTC1871 Booster Power Module High Power 100W Adjustable Output 3.5-35V Digital Display
DC-DC LTC1871 Booster Power Module High Power 100W Adjustable Output 3.5-35V Digital Display

DC-DC LTC1871 Booster Power Module High Power 100W Adjustable Output 3.5-35V Digital DisplayItem NO.: LTC1871

US$ 7.42
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
DC-DC LTC1871 Booster Power Module High Power 100W Adjustable Output 3.5-35V Digital Display
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

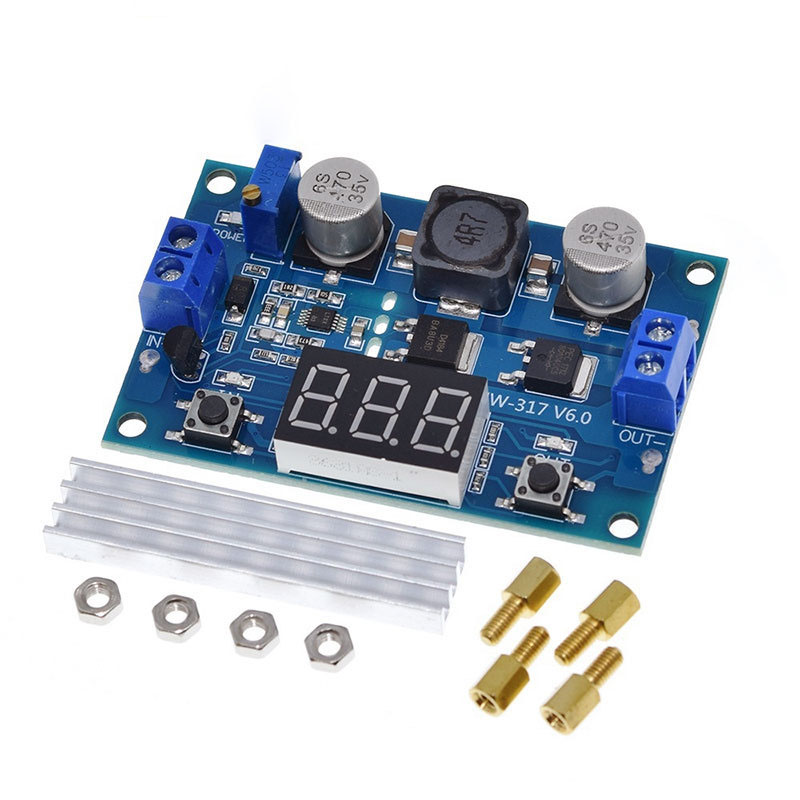

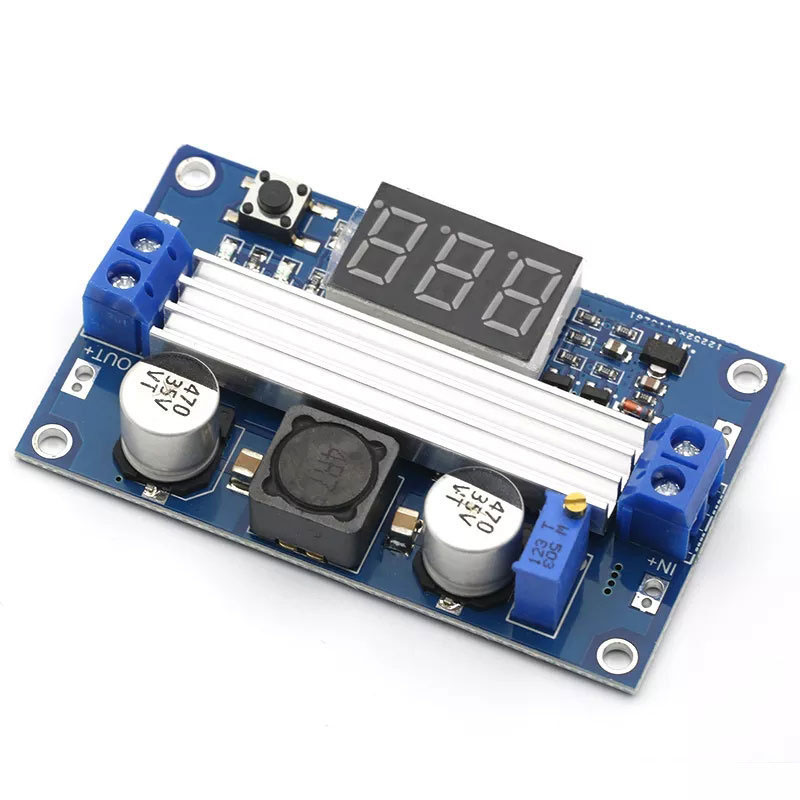

  • DC-DC LTC1871 Booster Power Module



    Performance Parameters:



    1. Input voltage: 3-35V DC (note: if the input voltage is less than 4V, the onboard voltmeter will fail)

    2. Input current: 9A (max)

    3. Output voltage: 3.5-35V DC (this board is a boost board, and the output voltage should be>=input voltage)

    4. Output current: 6A (max)

    5. Output power: 75W (up to 128W when both input and output voltages are greater than 20V)

    6. Conversion efficiency: 96.7%

    7. Output ripple: 24mV (TYP)

    8. Range of onboard voltmeter: 4~40V, error+-0.1V

    9. Short circuit protection: Yes (limited current 14A). Kind reminder: When connecting to high-power loads, it is recommended to start the machine first before connecting to the load due to the high impact current of current limiting and self-locking protection when starting the machine.

    10. Input reverse protection: None (please connect a high current diode in series with the input if necessary).

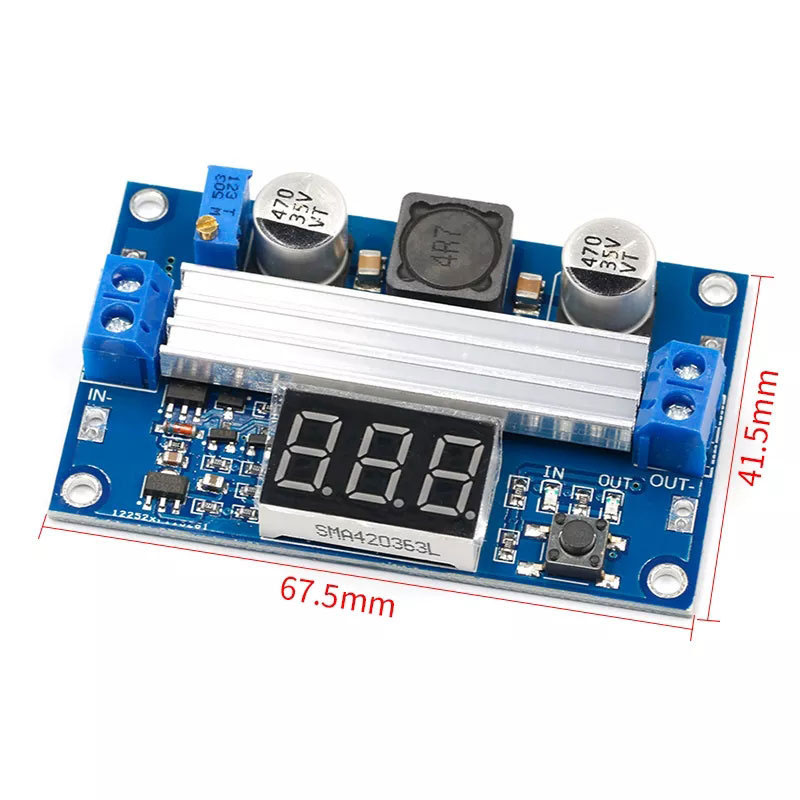

    11. Length x width x height=67 * 43 * 12MM (excluding copper pillars)
