SX1308 Adjustable Booster Module High Current 2A Power Supply Module DC-DC Booster ModuleItem NO.: SX1308
-
Customized Requirements
- Quantity
-
-
- Product Name: SX1308 Adjustable Booster Module High Current 2A Power Supply Module DC-DC Booster Module
- Item NO.: SX1308
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC-DC , SX1308 , Adjustable Booster Module , High Current 2A , Power Supply Module , Booster Module
- Creation Time: 2024-04-10

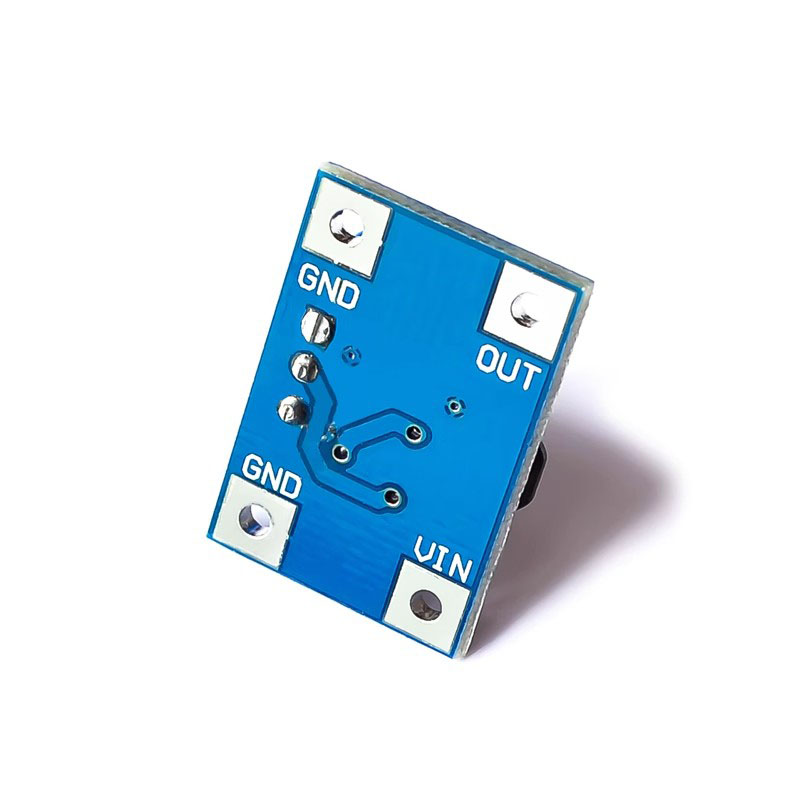

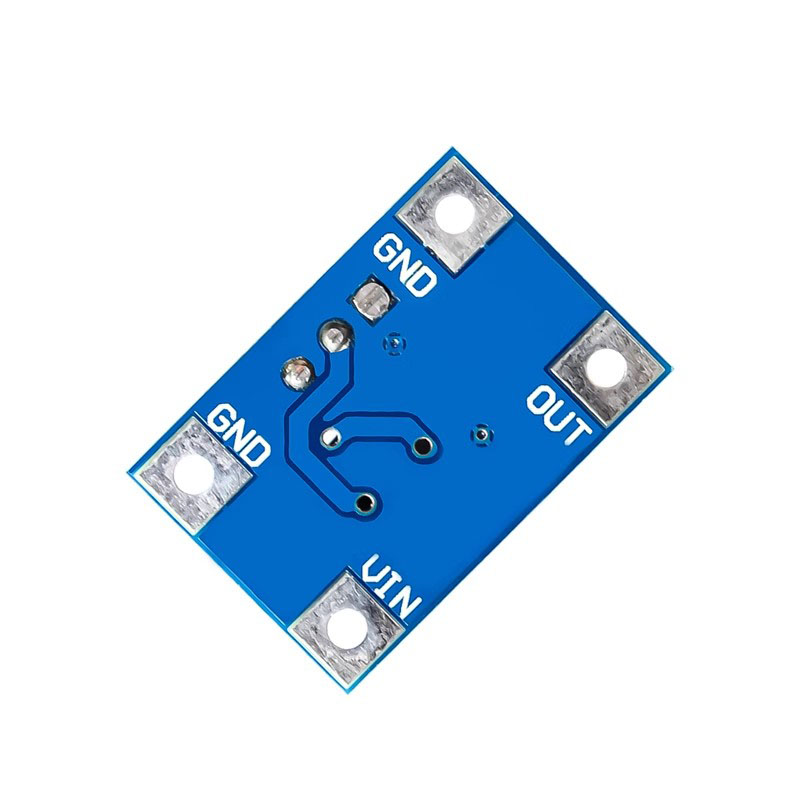

SX1308 Adjustable Booster Module
Product Introduction:
The SX1308 boost module is equipped with an SX1308 chip, which has a small packaging and high efficiency. The output voltage is adjustable and can reach 28V, with an extremely low RDS internal resistance of 100m Ω metal oxide semiconductor field-effect transistor (MOSFET) integrated internally, which can achieve high current output within 2A. Widely used in 3G network products, digital products, mobile power supplies, battery powered devices, etc.
Functional Features:
● Oscillation frequency 1.2MHz, efficiency up to 95%
● The circuit has functions such as short circuit protection and overheating protection
● 10K price regulating potentiometer, regulating voltage output
Technical Parameters:
● Input voltage range: DC 2V-24V
● Output voltage range: DC2V-28V
● Switching frequency: 1.2MHz
● Output current: ≤ 2A
