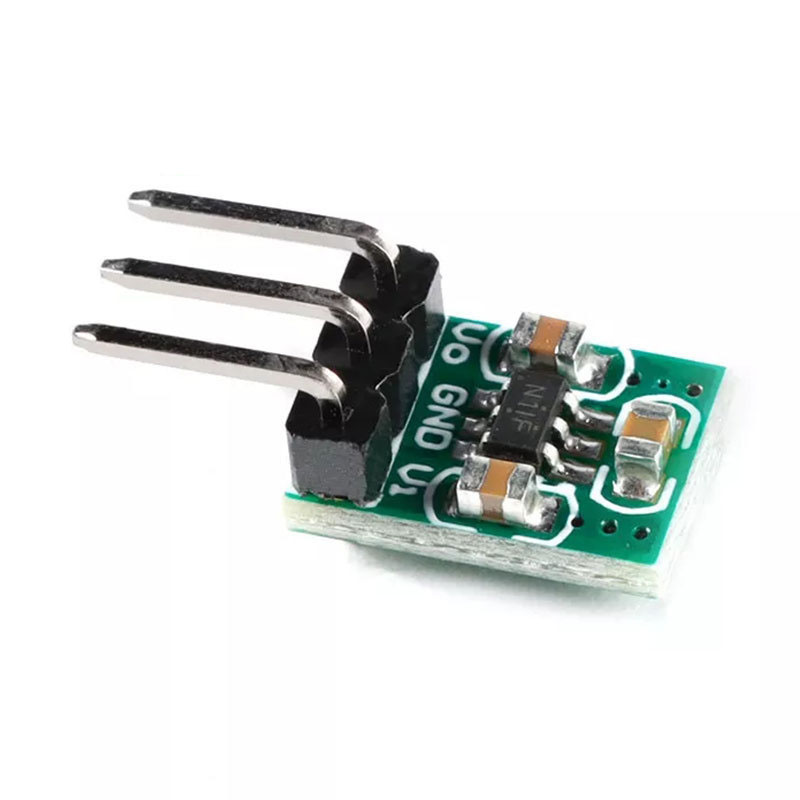

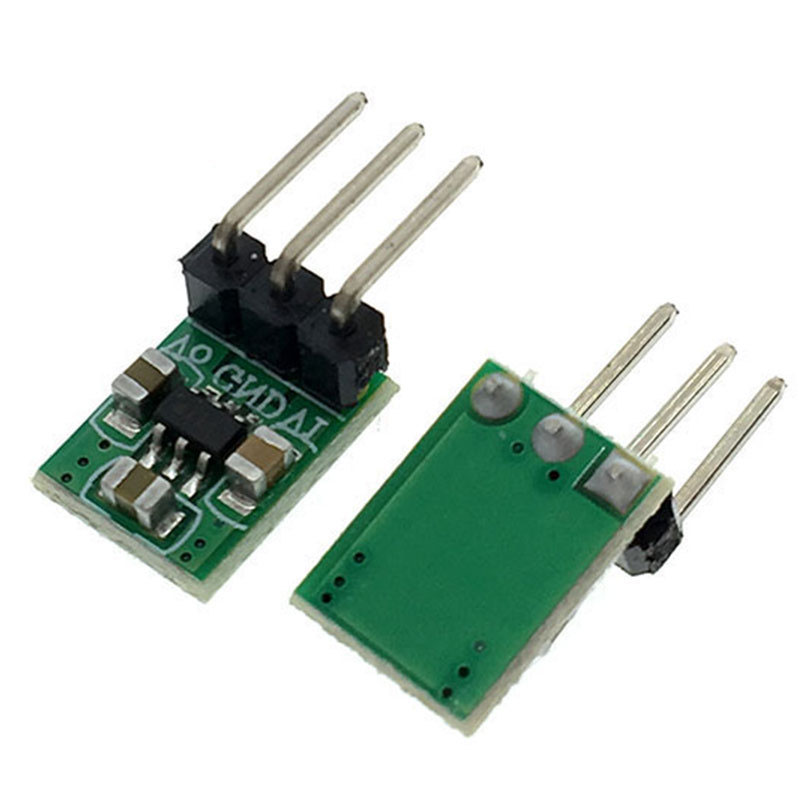

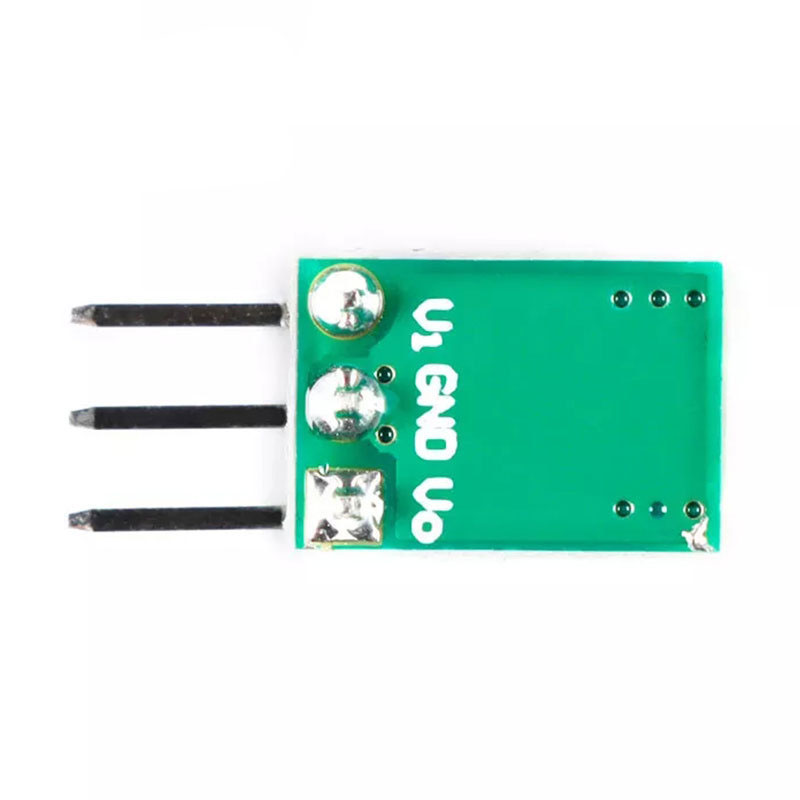

DCDC Power Module Voltage Up and Down Conversion Module 1.8V-5V to 3.3V Power Module

DCDC Power Module Voltage Up and Down Conversion Module 1.8V-5V to 3.3V Power ModuleItem NO.: DC DC Converter Module

US$ 2.57
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
DCDC Power Module Voltage Up and Down Conversion Module 1.8V-5V to 3.3V Power Module
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • DC Power Module Voltage Up and Down Conversion Module

    Application:



    ● Low power WiFi module: ESP8266

    ● Low power Bluetooth module: HC-05 HC-06

    ● Low power wireless UART module: HC-11 HC-12

    ● Low power wireless module: CC1101 CC2500 Nrf24l01+

    ● Low power LED driver



    Description:



    ● Low noise, regulated charge pump DC/DC converter

    ● 2 in 1 DC-DC buck and boost converter module

    1. Fixed 3.3V+-4% output

    2. Voltage input range: 1.8-5V (this module can use two 1.2V nickel hydrogen batteries).

    3. Long term maximum output current 100mA

    4. Short term maximum output current 150mA

    5. Working frequency 1.2MHz.

    6. Short circuit protection

    7. No-load input current: 0.65mA

    8. 2.54mm pin spacing, friendly to the MCU development board on the opposite packaging board

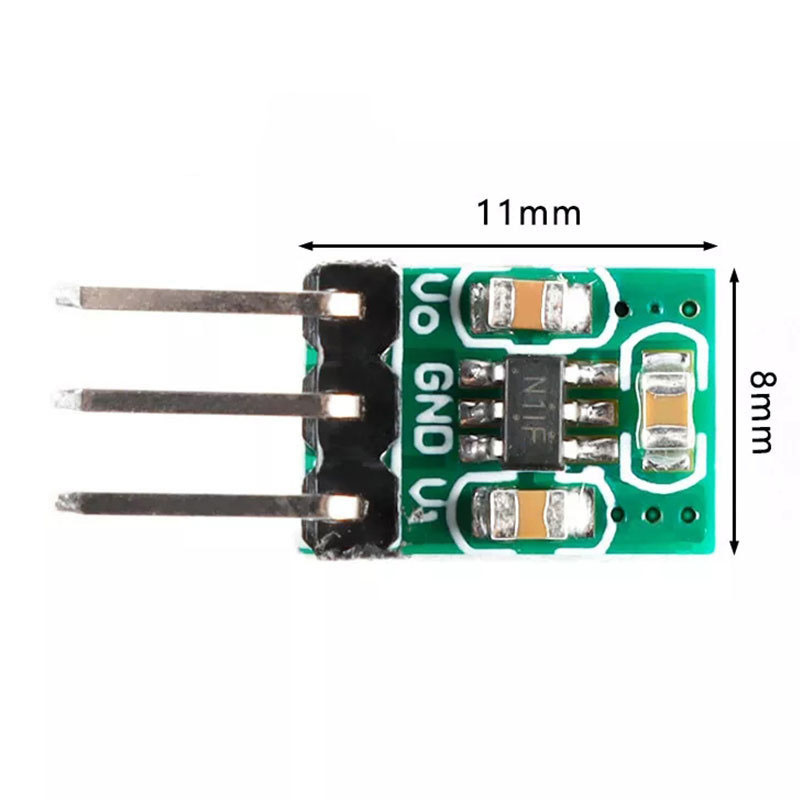

    9. Pinless size 11mm x 7.62mm x 4.5mm (small)

    10. Weight: approximately 0.5g



    Attention:



    This is a DC-DC voltage converter module, which must be noted when using:

    1. The input voltage cannot exceed the maximum input range

    2. The output power cannot exceed the maximum load for a long time

    3. The input power must be greater than the power because of the power consumption of the module itself.
