DC-DC Buck Board 3A Stabilized Power Module MP1584EN 24V12V9V to 3.3V5V9V12V Fixed Adjustable OutputItem NO.: MP1584EN

DC-DC Buck Board 3A Stabilized Power Module

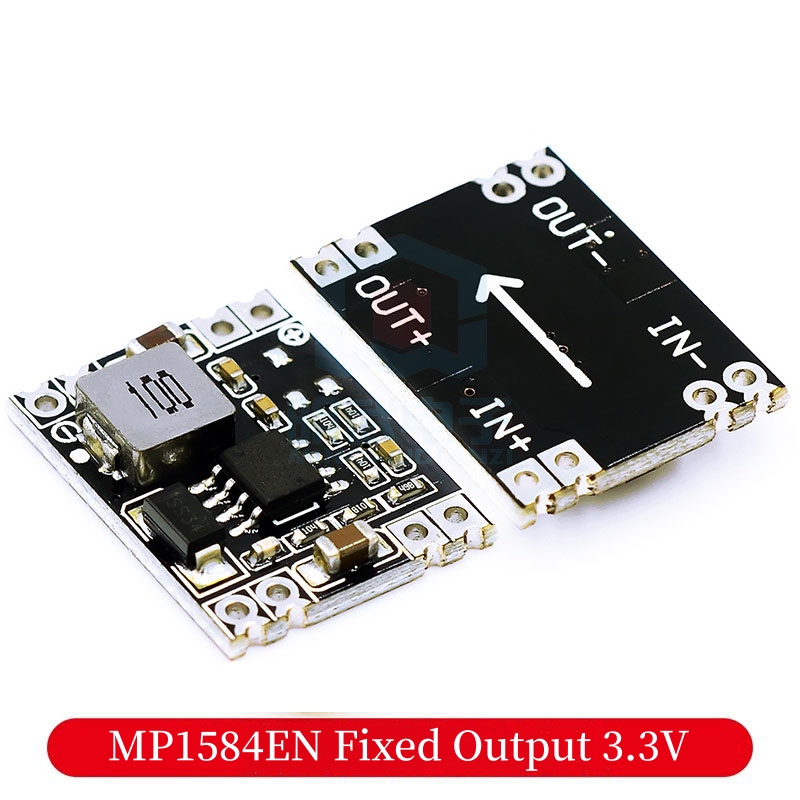

MP1584EN 3.3V Fixed Output:

● Output current: 3A (peak), controlled within 1.8A for long-term operation

●Conversion efficiency: 96% (peak) (Vin Vout>2V) The smaller the value, the higher the efficiency

● Input voltage: 5.3V-26V

● Output voltage: 3.3V

● Output ripple:<30mV

● Operating temperature: -40 ℃~+85 ℃

● Module size: 22.3mm * 17mm

● Weight: 3g

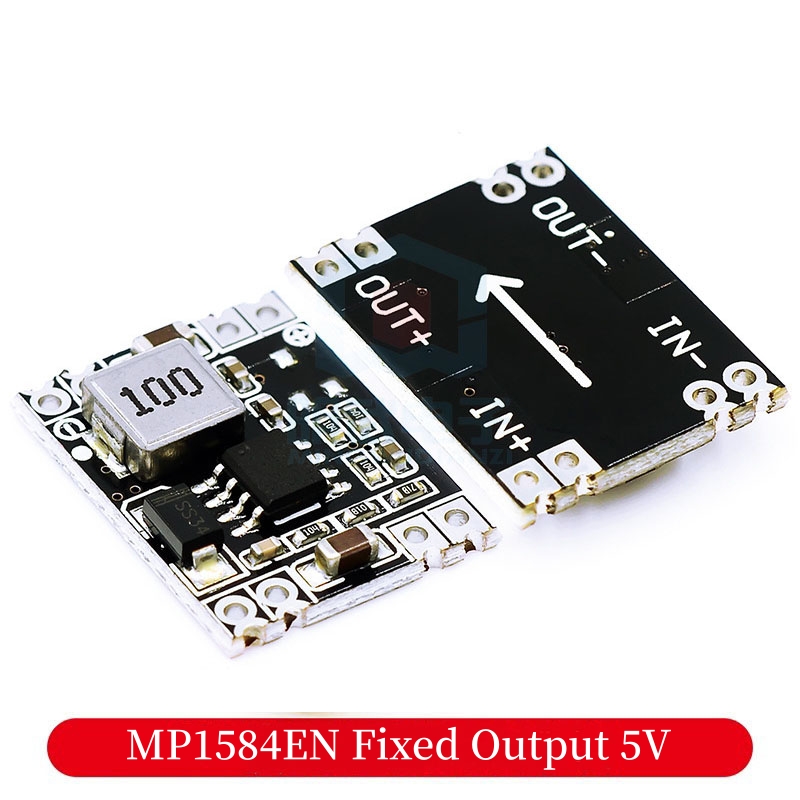

MP1584EN 5V Fixed Output:

● Output current: 3A (peak), controlled within 1.6A for long-term operation

● Conversion efficiency: 96% (peak) (Vin Vout>2V) The smaller the value, the higher the efficiency

● Input voltage: 7V-26V

● Output voltage: 5V

● Output ripple:<30mV

● Operating temperature: -40 ℃~+85 ℃

● Module size: 22.3mm * 17mm

● Weight: 3g

MP1584EN 9V Fixed Output:

● Output current: 3A (peak), controlled within 1.1A for long-term operation

● Conversion efficiency: 96% (peak) (Vin Vout>2V) The smaller the value, the higher the efficiency

● Input voltage: 11V-26V

● Output voltage: 9V

● Output ripple:<30mV

● Operating temperature: -40 ℃~+85 ℃

● Module size: 22.3mm * 17mm

● Weight: 3g

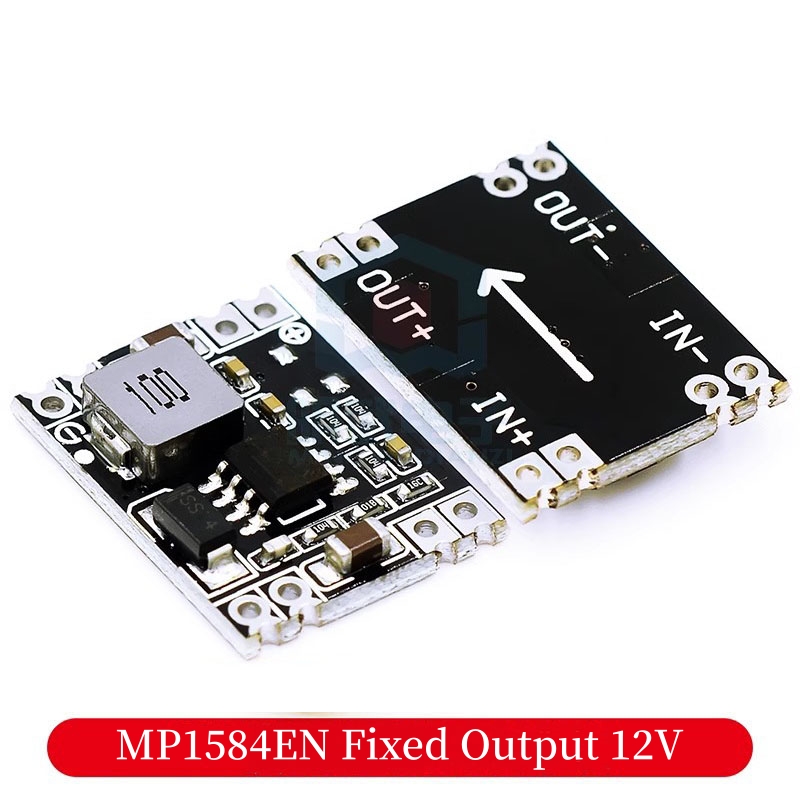

MP1584EN 12V Fixed Output:

● Output current: 3A (peak), controlled within 0.8A for long-term operation

● Conversion efficiency: 96% (peak) (Vin Vout>2V) The smaller the value, the higher the efficiency

● Input voltage: 14V-26V

● Output voltage: 12V

● Output ripple:<30mV

● Operating temperature: -40 ℃~+85 ℃

● Module size: 22.3mm * 17mm

● Weight: 3g

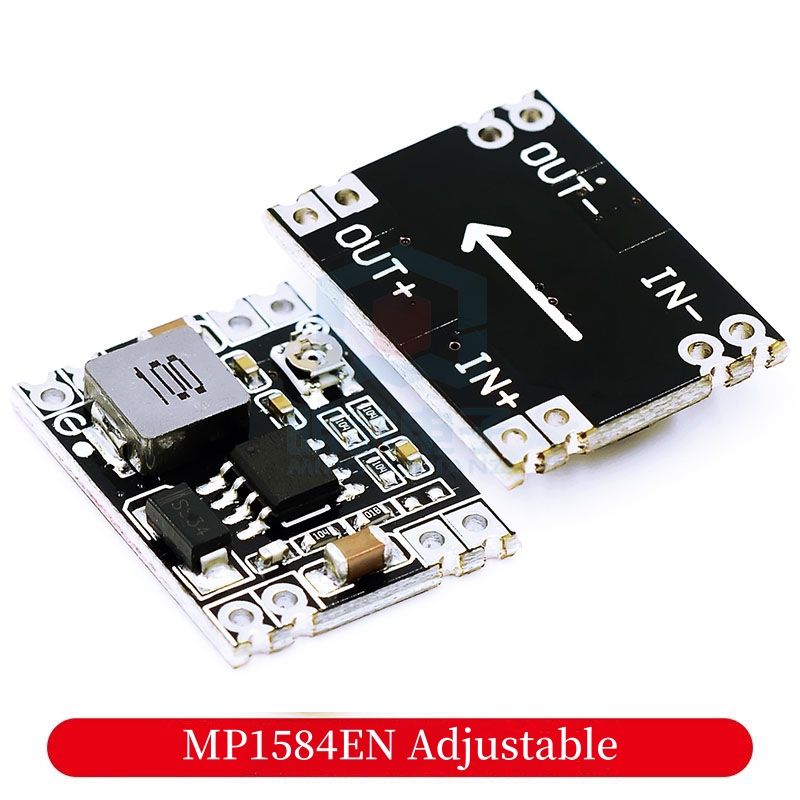

MP1584EN Adjustable Output:

● Conversion efficiency: 96% (peak) (Vin Vout>2V) The smaller the value, the higher the efficiency

● Output ripple:<30mV

● Operating temperature: -40 ℃~+85 ℃

● Module size: 22.3mm * 17mm

● Weight: 3g
