Bluetooth Digital Power Amplifier Board Dual-Channel 50W*2 Audio Amplifier Board With No POP Sound XY-502BItem NO.: XY-502B
-
Customized Requirements
- Quantity
-
-
- Product Name: Bluetooth Digital Power Amplifier Board Dual-Channel 50W*2 Audio Amplifier Board With No POP Sound XY-502B
- Item NO.: XY-502B
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Audio Amplifier Board , Dual-Channel , Bluetooth Digital Power Amplifier Board , 50W*2 , XY-502B
- Creation Time: 2024-05-03

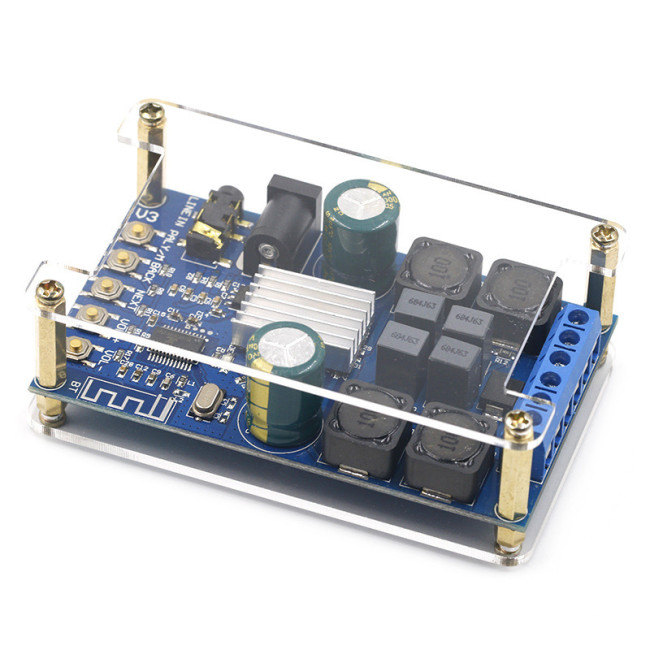

Bluetooth Digital Power Amplifier Board
XY-502B Dual Channel 50W*2
Product Parameters:
● Product name: Bluetooth digital power amplifier board
● Product model: XY-502B
● Power supply voltage: DC4.5~27V
● Output power: 50W * 2
● Protection function: reverse connection, overvoltage, undervoltage, overheating, short circuit
● SNR: 102dB
● Number of channels: two-channel stereo

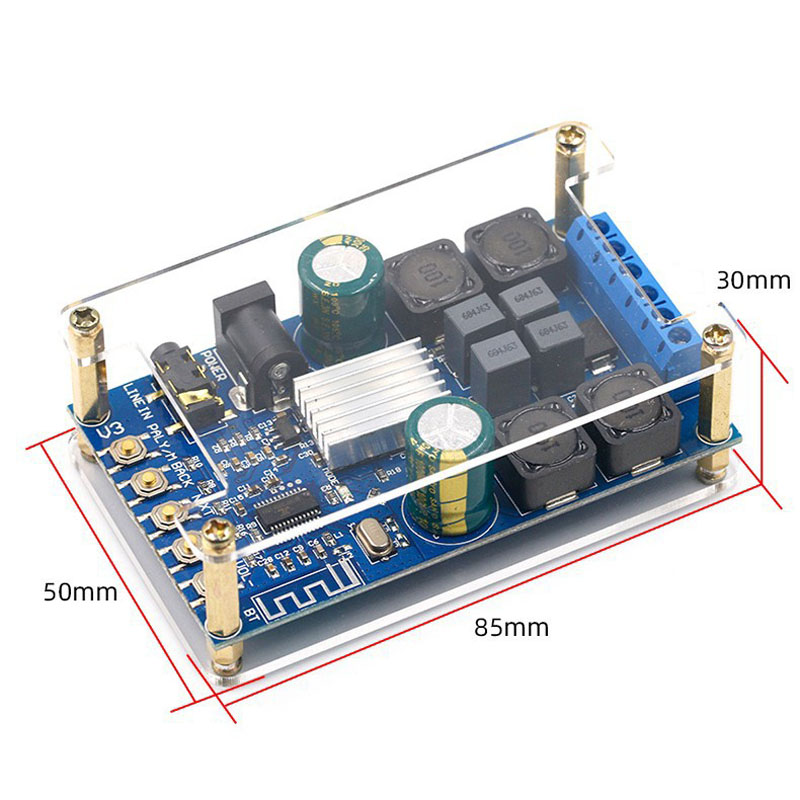

● Product size: 87 * 53 * 29mm (with shell)
● Product weight: 87g (with shell)
Product Highlights:
1. There is no annoying POP sound during power-on, song cutting and pause;
2. Wide power supply voltage: DC4.5-27V;

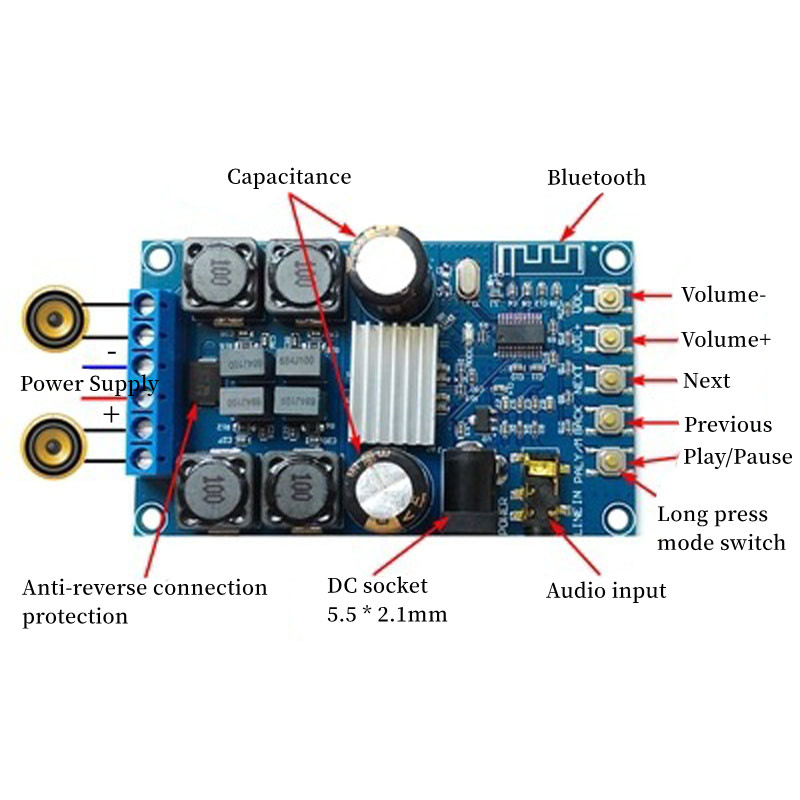

3. Two audio input modes: Bluetooth mode and LINE IN mode;
4. Two power supply interfaces: terminal block and DC2.1MM socket (compatible with most notebook power supply interfaces);
5. Power input anti-reverse connection function;
6. Acrylic shell protection;
