AD828/TDA1308 Operational Amplifier Front Stage Amplifier Board Audio Amplifier Module Single Power Supply 5V-15V

AD828/TDA1308 Operational Amplifier Front Stage Amplifier Board Audio Amplifier Module Single Power Supply 5V-15VItem NO.: AD828

US$ 2.99
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
AD828/TDA1308 Operational Amplifier Front Stage Amplifier Board Audio Amplifier Module Single Power Supply 5V-15V
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • AD828/TDA1308 Preamplifier Audio Amplifier Module



    Product Information:



    ● Small volume design, full chip process, imported non-polar brand capacitors are used as input and output coupling capacitors, and fever grade AD828/TDA1308 chips are used as operational amplifiers.



    ● If you feel that the default magnification is inappropriate, you can change the magnification yourself, as follows:

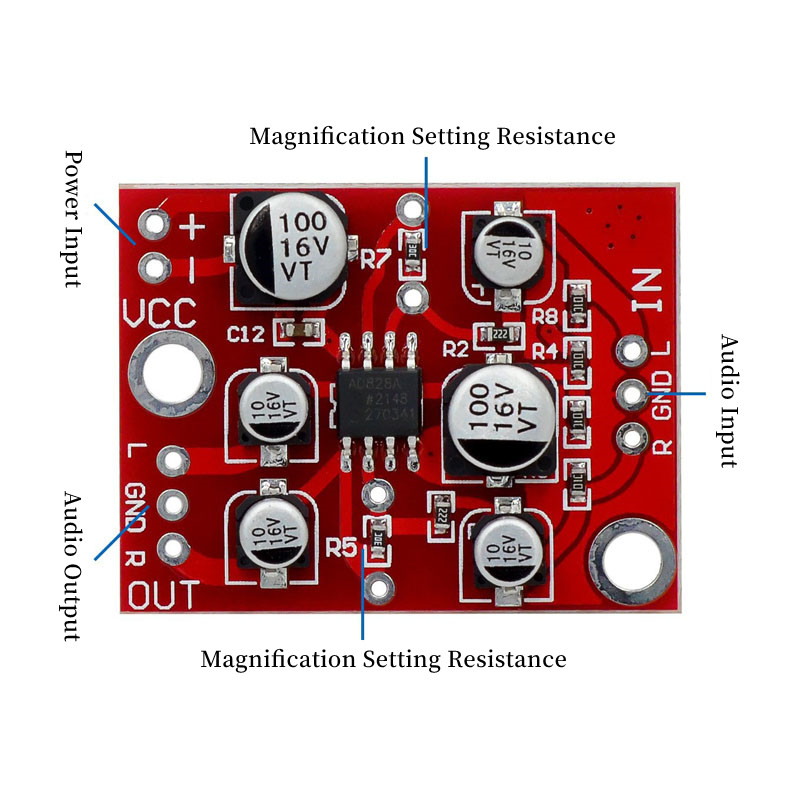

    Adjustment of magnification: R7 and R5 are the set resistances for magnification (the default magnification for shipment is about 5 times, and the magnification can be changed according to your own needs. The resistance can be selected from 5k-47k. The greater the resistance, the higher the magnification. If plug-in resistors are used, the original patch resistors can be removed, and the plug-in resistors can be soldered on the reserved pads at both ends of the placement)

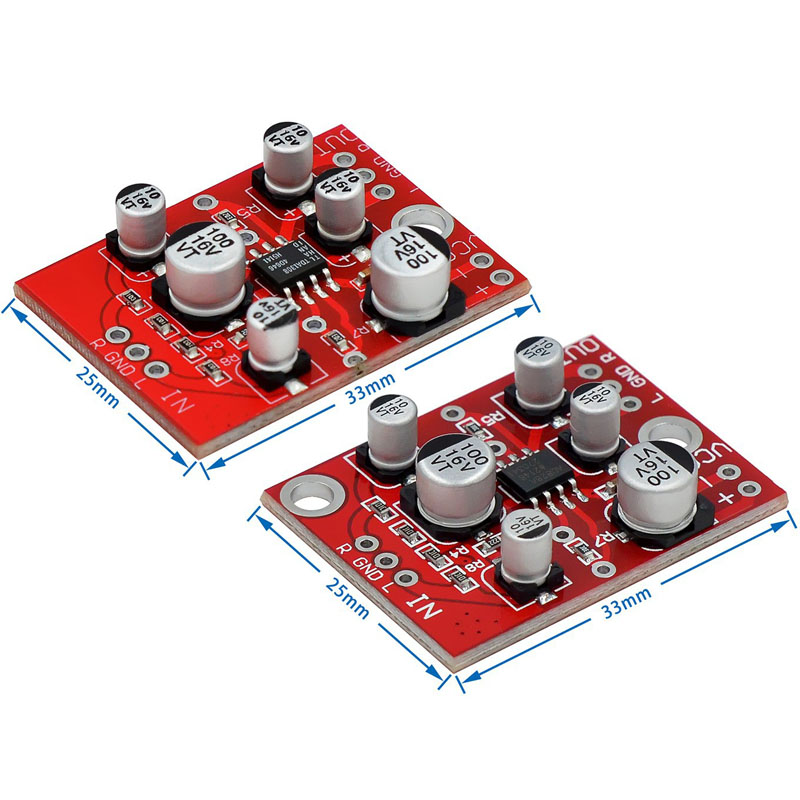

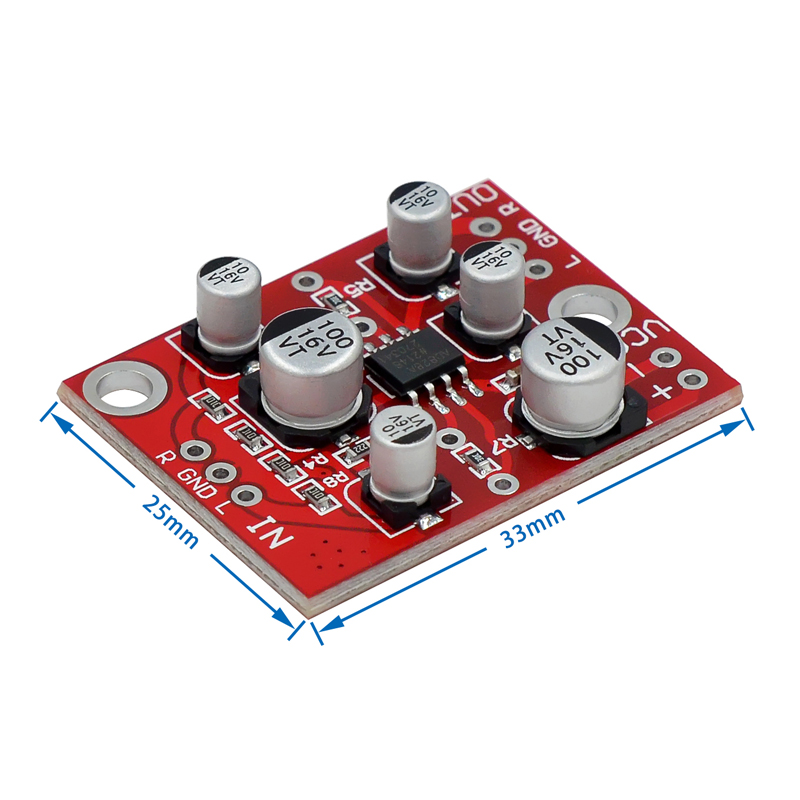

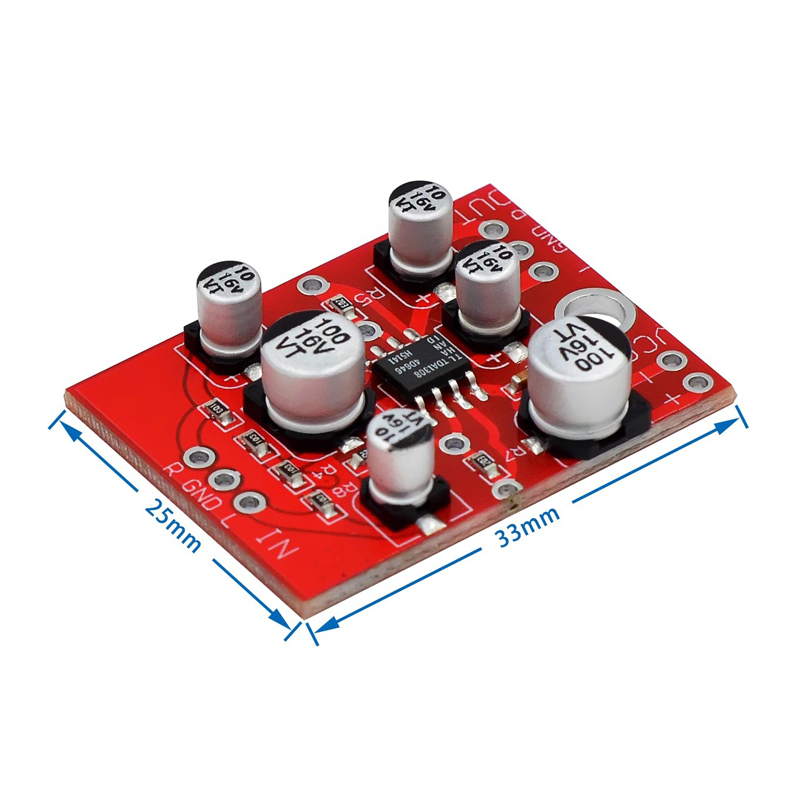

    ● Plate size: 33mm * 25mm



    ● Working voltage: DC 5v-15v



    ● Note: The board is not provided with regulated power supply, so it is better to use regulated power supply or battery power supply during installation, otherwise there may be interference.
