Capacitive Soil Humidity Sensor Is Not Easy To Corrode And Works At Wide Voltage With WireItem NO.: Capacitive Soil Moisture Sensor
-
Customized Requirements
- Quantity
-
-
- Product Name: Capacitive Soil Humidity Sensor Is Not Easy To Corrode And Works At Wide Voltage With Wire
- Item NO.: Capacitive Soil Moisture Sensor
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Wide Voltage , Capacitive Soil Humidity Sensor , With Wire
- Creation Time: 2024-03-25

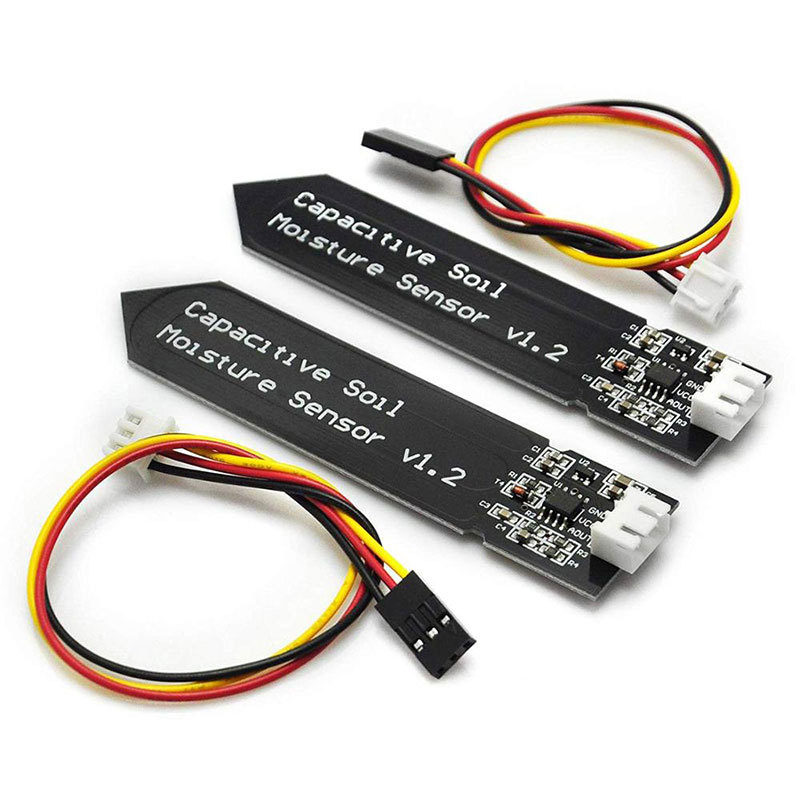

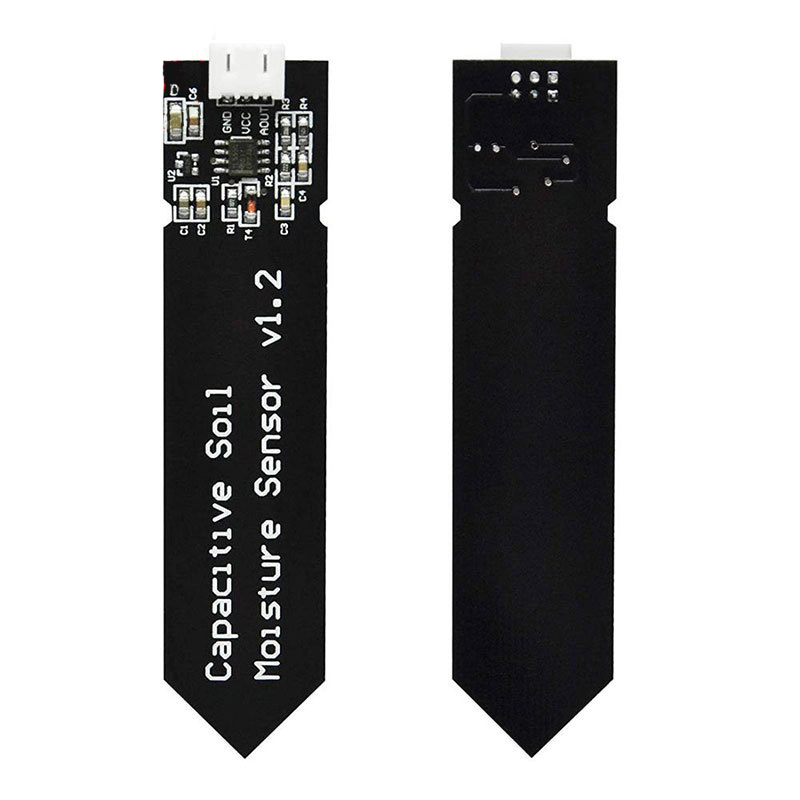

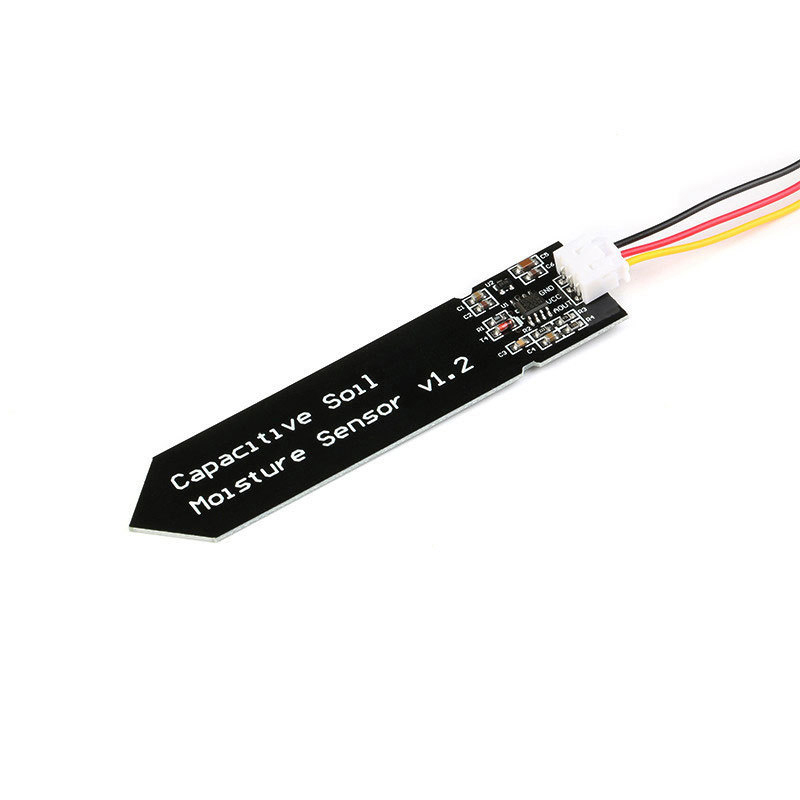

Capacitive Soil Humidity Sensor
Product Information:
New soil moisture sensor! This capacitive soil moisture sensor is different from most of the resistance sensors on the market. It uses the capacitive induction principle to detect soil moisture. The utility model avoids the problem that the resistance sensor is easy to be corroded, and greatly prolongs its working life.
The built-in voltage regulator chip of the sensor supports a 3.3~5.5V wide voltage working environment, which means that it can work normally even on the 3.3V Arduino main control board. Micro PCs such as Raspberry Pie only need an ADC (analog to digital signal) conversion module to work.
With an external screen and a motherboard, you can talk with your plants! See if the beloved is thirsty and needs more water.
Module Parameters:
● Working voltage: 3.3~5.5 VDC
● Output voltage: 0~3.0 VDC
● Interface: PH2.54-3P

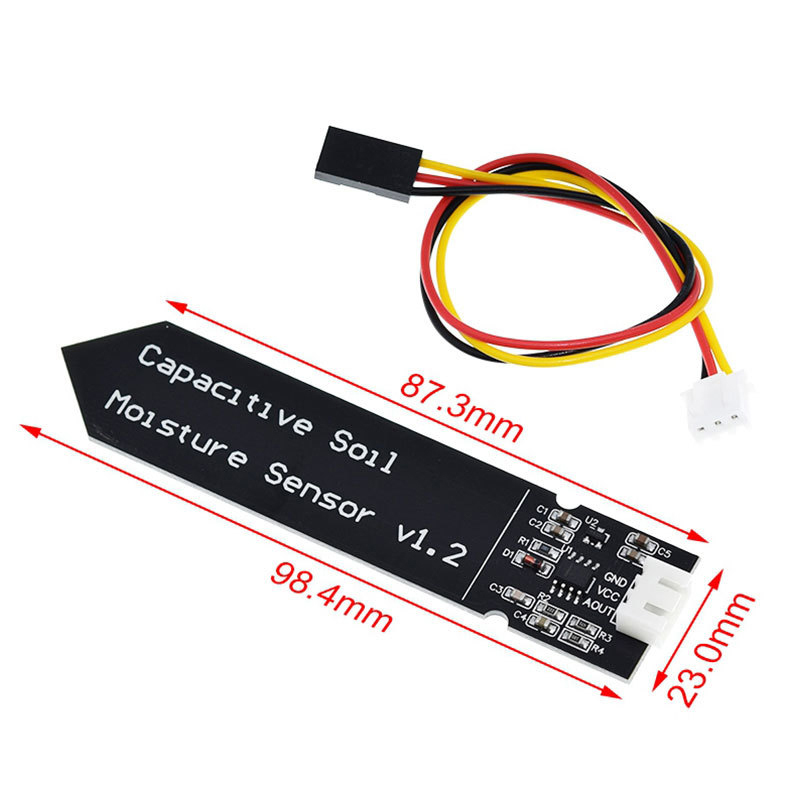

● Size: 98 x 23mm (LxW)
When the humidity is high, the voltage is low. When the humidity is low, the voltage is high. Please go back and use a multimeter to measure and confirm.
