DC Motor Governor Pump PWM Stepless Variable Speed Switch High Efficiency 12V-40V 10AItem NO.: MK00999
-
Customized Requirements
- Quantity
-
-
- Product Name: DC Motor Governor Pump PWM Stepless Variable Speed Switch High Efficiency 12V-40V 10A
- Item NO.: MK00999
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 10A , DC Motor Governor , Pump PWM Stepless Variable , Speed Switch , High Efficiency , 12V-40V
- Creation Time: 2024-04-09
DC Motor Governor Pump PWM 12V-40V 10A
Product Features:

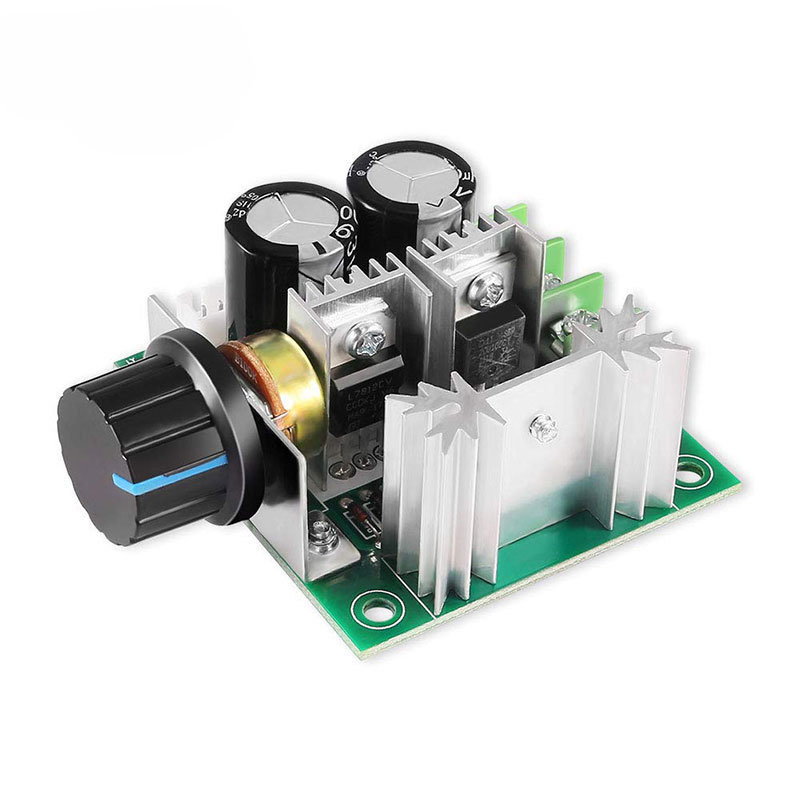

The circuit board uses military grade boards! All chips use imported original packaging, which is not comparable to domestic ICs, disassembly, or refurbishment. Imported 50V1000uF large capacitor. Compared to other types of governors, the capacity advantage of 100-220uF is significant. The power transistor uses IRF3205, which is a big bull, and you definitely don't have to worry about taking your motor with you. (Maximum value of drain current Id: 82A; maximum voltage Vds: 75V; open state resistance, Rds (on): 0.013ohm). Terminals use 8500 high current terminals, labeled 300V20A!
Technical Parameters:
● Input voltage: DC 12V-40V
● Power: 0.01-400W
● Current: Rated current 8A, maximum passing current 10A, static current 0.02A (standby state)
● Frequency: 13khz
● PWM pulse width speed regulation range: 10% -100%
● Equipped with a 10A fuse, with power reverse connection and control voltage overvoltage protection function
● Equipped with high-quality Potentiometer (similar products of Quantaobao, such high-quality Potentiometer are only used by our store)
● If the forward and reverse functions are required, customers can connect the forward and reverse switches externally.

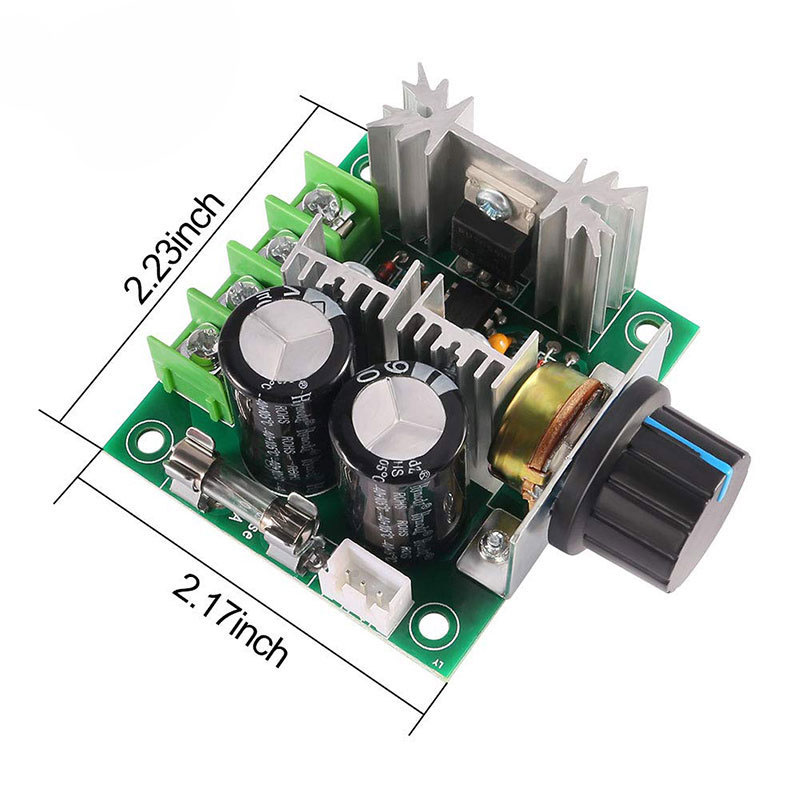

● Size: 60 * 55 * 28mm, four positioning holes are 5mm away from the edge of the board, and the diameter of the positioning hole is 3.2mm.
● Weight: 69g
● On board 10A fuse, fuse is 5 * 20mm standard size
