DC Motor Speed Controller Pump 6V12V24V30V PWM Stepless Speed Switch High Power Drive Board 20AItem NO.: CCM6CU4
-
Customized Requirements
- Quantity
-
-
- Product Name: DC Motor Speed Controller Pump 6V12V24V30V PWM Stepless Speed Switch High Power Drive Board 20A
- Item NO.: CCM6CU4
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 20A , DC Motor Speed Controller , Pump , 6V12V24V30V , PWM Stepless Speed Switch , High Power Drive Board
- Creation Time: 2024-05-27

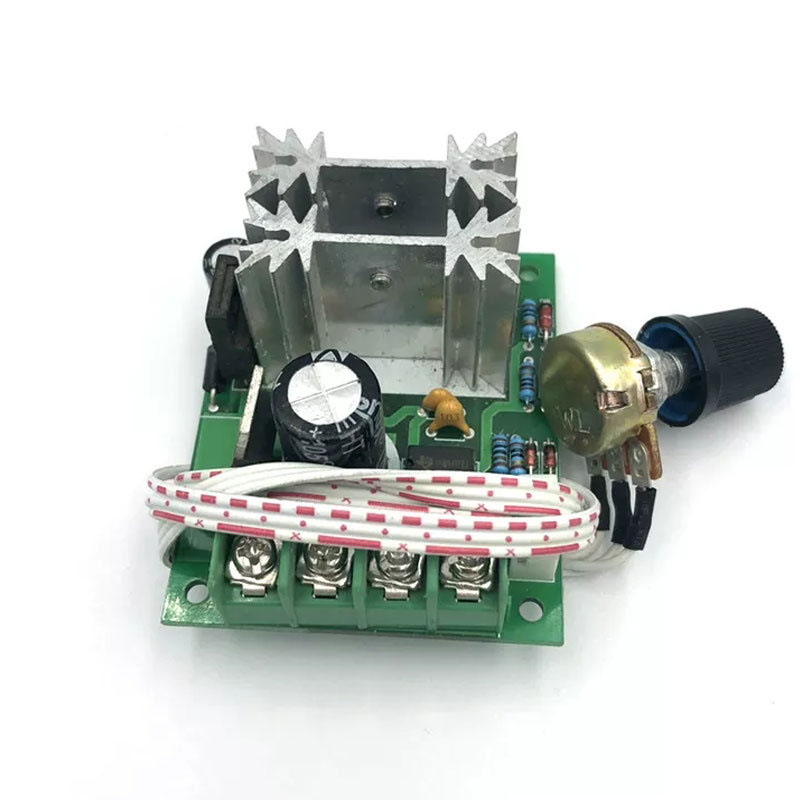

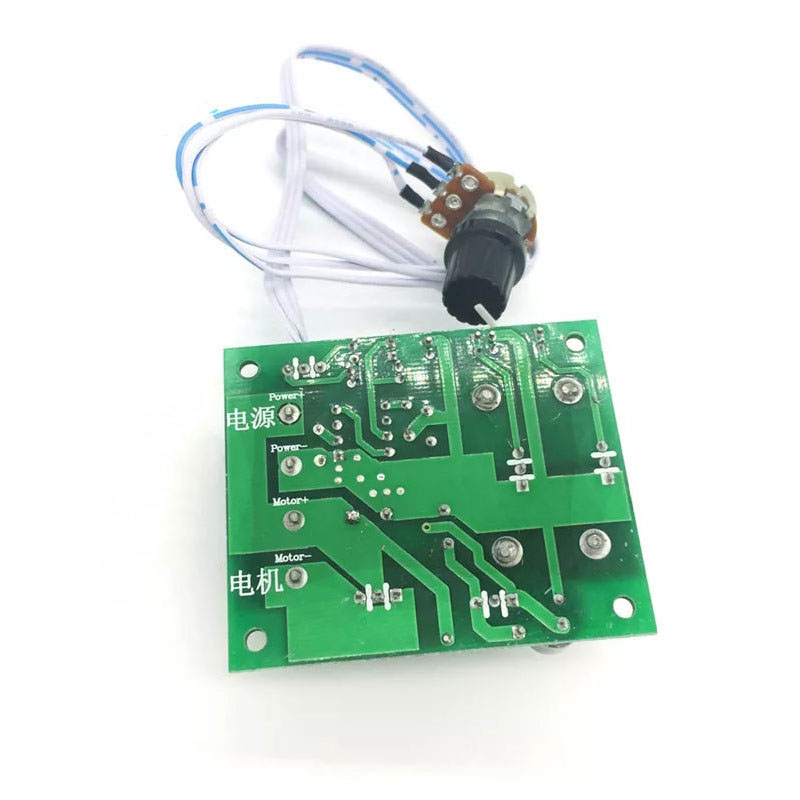

DC Motor Speed Controller Pump 6V12V24V30V 20A
Product Information:
Double the length of the speed control knob wire, with a wire length of 40cm
This governor has undergone technological upgrades on previous versions of products, and its advantages over similar products are:
6.5-30V wide voltage power supply, compatible with various parameters of low-voltage motors, 6V12V24V universal!
Using dual high-power MOSFETs at all costs is the only one in the same price range.
Technical indicators:
1) Working voltage: DC6.5V-DC30V wide range
2) Rated current: 10A, maximum current: 20A
3) Speed regulation range: 5% -100%
4) PWM frequency: 21kHz
Input a DC power supply or battery, and the voltage value should be equal to the rated voltage of the motor.
Motors within 24V and 200W, 12V120W and 6V60W are all acceptable;
Size: 60mm * 50mm * 28mm
Weight: 61g
