GP2Y1014AU0F Dust Sensor Detects Smoke and Pollen Indoor and Outdoor Dust Concentration with CableItem NO.: GP2Y1014AU0F
-
Customized Requirements
- Quantity
-
-
- Product Name: GP2Y1014AU0F Dust Sensor Detects Smoke and Pollen Indoor and Outdoor Dust Concentration with Cable
- Item NO.: GP2Y1014AU0F
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: GP2Y1014AU0F , Dust Sensor , Detects Smoke and Pollen , Indoor and Outdoor Dust Concentration
- Creation Time: 2024-04-15

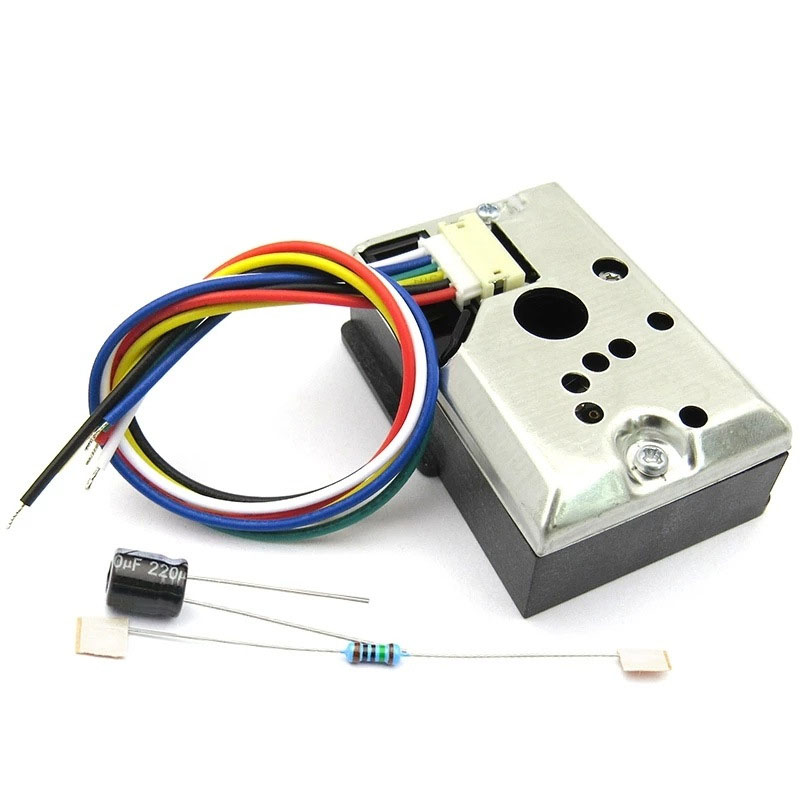

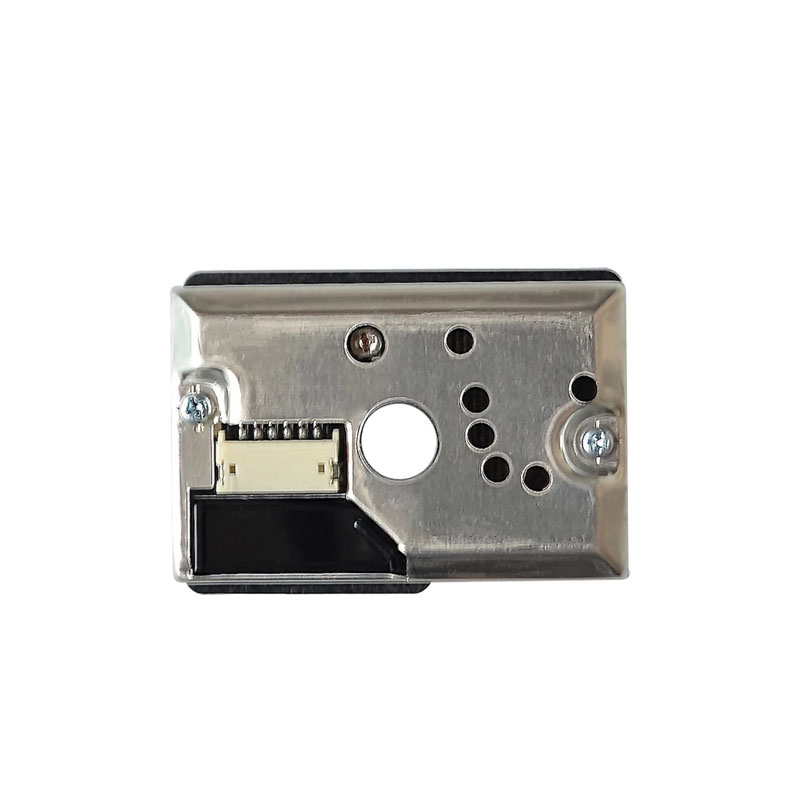

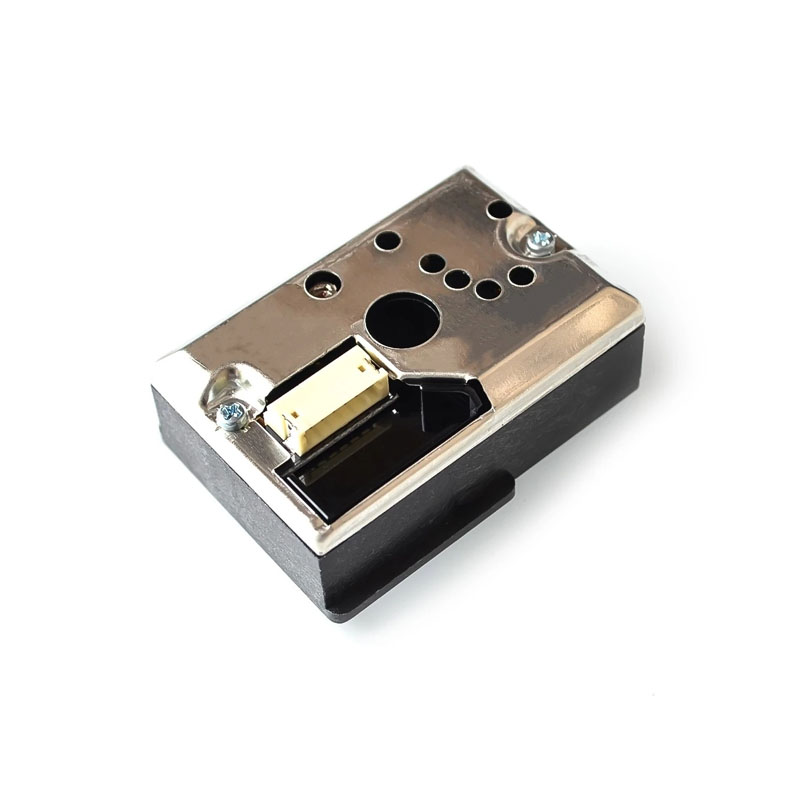

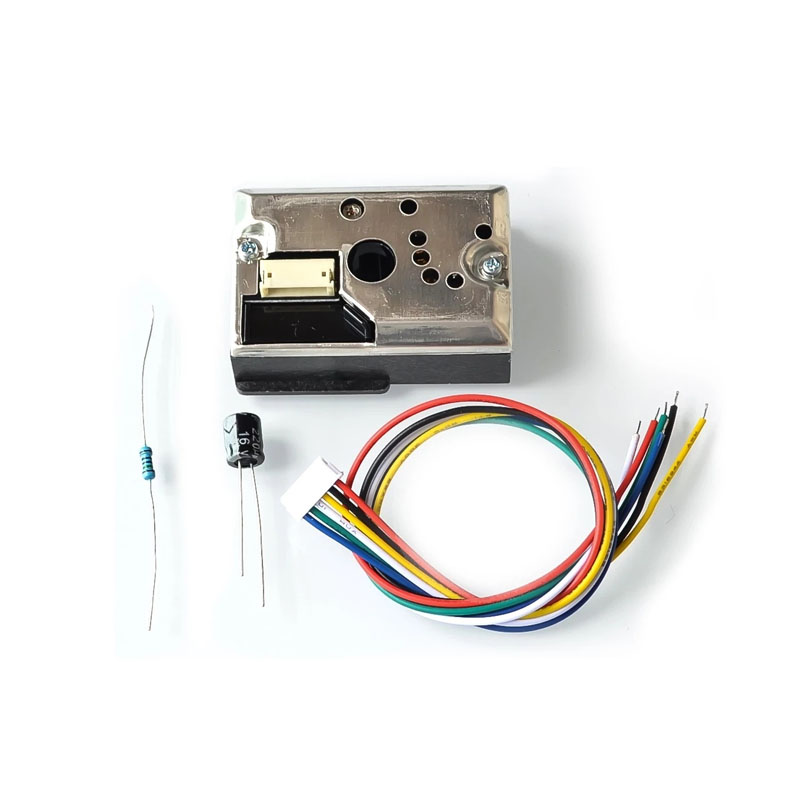

GP2Y1014AU0F Dust Sensor
Introduction:
Optical dust sensors (GP2Y1014AU0F) are particularly effective in detecting very fine particles, such as cigarette smoke, and are commonly used in air purifier systems. In this device, an infrared light emitting diode and a phototransistor are arranged diagonally to allow them to detect reflected light from dust in the air. With extremely low current consumption (20mA, 11mA typical), it can carry sensors up to 7VDC. The output is an analog voltage proportional to the measured dust concentration, with a sensitivity of 0.5V/0.1mg/m ³。
Specifications:
● Power supply voltage: 5-7V
● Operating temperature: - 10-65 degrees Celsius
● Consumption current: 20mA
● Particle detection value: 0.8 microns
● Sensitivity: 0.5V (0.1mg/m ³)
● Voltage in clean air: 0.9V typical value
● Working temperature: - 10~65 ℃
● Storage temperature: - 20~80 ℃
● Weight and size: 20g
● Size: 46mm × 34mm
