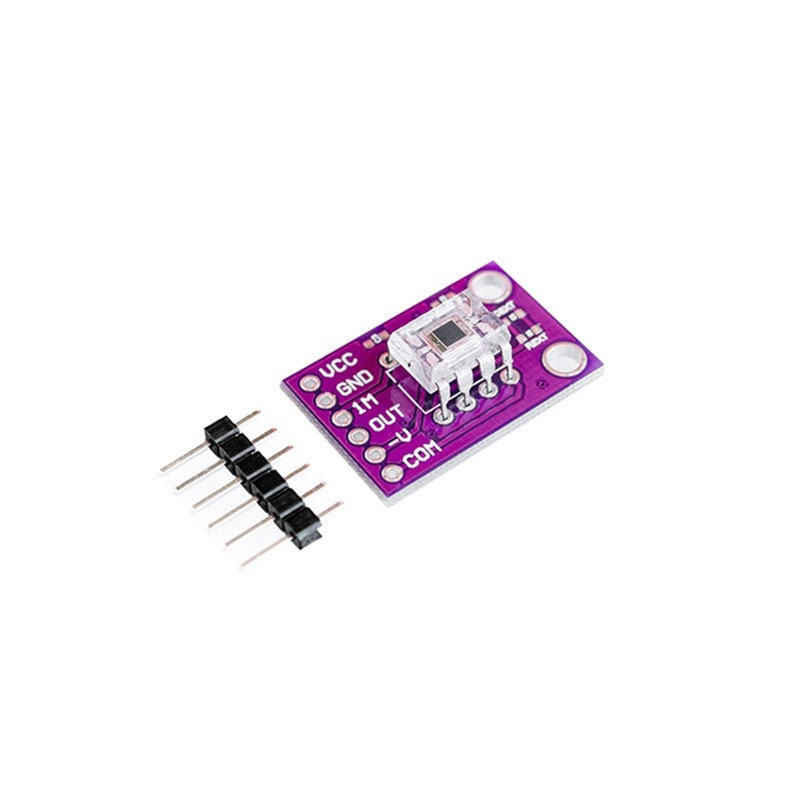

  • OPT101 Analog Light Sensor



    Product Description:



    OPT101 is a monolithic photodiode with an on-chip trans-impedance amplifier. The combination of photodiodes and transimpedance amplifiers on a single chip eliminates the problems often encountered in discrete design, such as leakage current error, noise pickup and the result of gain peaking stray capacitance. The output voltage increases linearly with light intensity. The amplifier is designed for single or dual power operation.



    Product Features:



    1. Single power supply: 2.7-36V

    2. Photodiode size: 2.29mm * 2.29mm

    3. Internal 1Mohm feedback resistance

    4. High response: 0.45A/W (650nm)

    5. Width: 14Khz

    6. Low peak current: 120UA

    7. Packaging: Remove plastic 8-pin PDIP and J-lead SOP



    Product Application:



    1. Medical instruments

    2. Experimental instruments

    3. Position and proximity sensor

    4. Photographic analyzer

    5. Barcode scanner

    6. Smoke detector

    7. Currency exchange
