GY-302 Module Digital Light Intensity Illumination Sensor BH1750FVI Ambient Light Sensor Module Illumination ModuleItem NO.: GY-302
-
Customized Requirements
- Quantity
-
-
- Product Name: GY-302 Module Digital Light Intensity Illumination Sensor BH1750FVI Ambient Light Sensor Module Illumination Module
- Item NO.: GY-302
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: BH1750FVI , GY-302 , Digital Light Intensity Illumination Sensor , Ambient Light Sensor Module , Illumination Module
- Creation Time: 2024-04-16

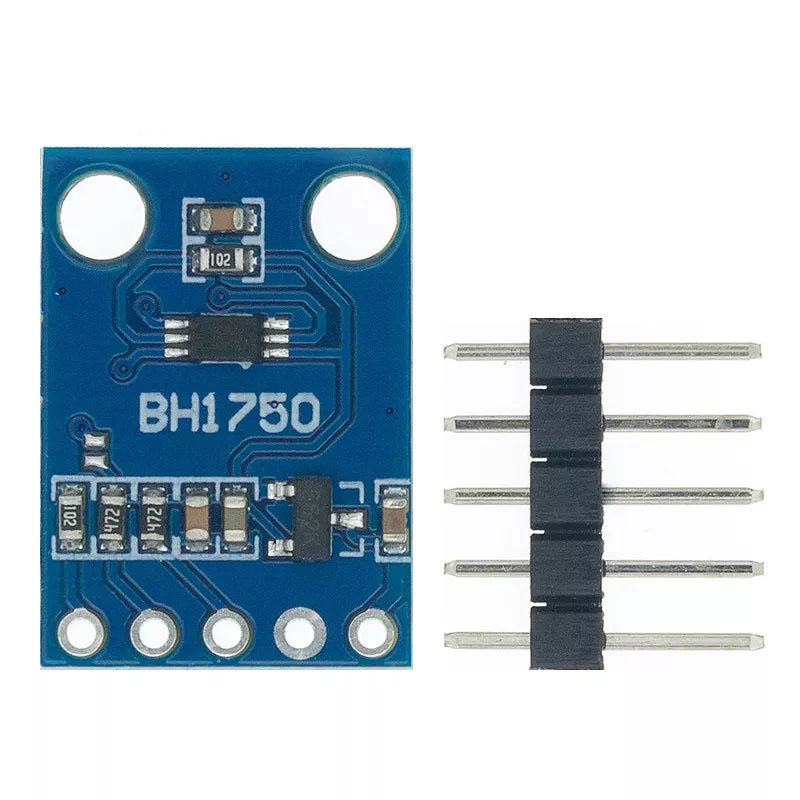

GY-302 Digital Light Intensity Light Sensor Module
Product Information:
The BH1750FV is a digital ambient light sensor IC for the 12C bus interface. The integrated circuit is most suitable for obtaining ambient light data, and is used to adjust the backlight power of mobile phone LCD screen and keyboard. Wide range can be detected at high resolution (1-65535lx).
Product Parameters:
●Working voltage: 3~5V
●Operating temperature: - 40 ℃~ 85 ℃
●Storage temperature: - 40 ℃~ 100 ℃
●Data range: 0 ~ 65535
●Communication interface: 12C interface

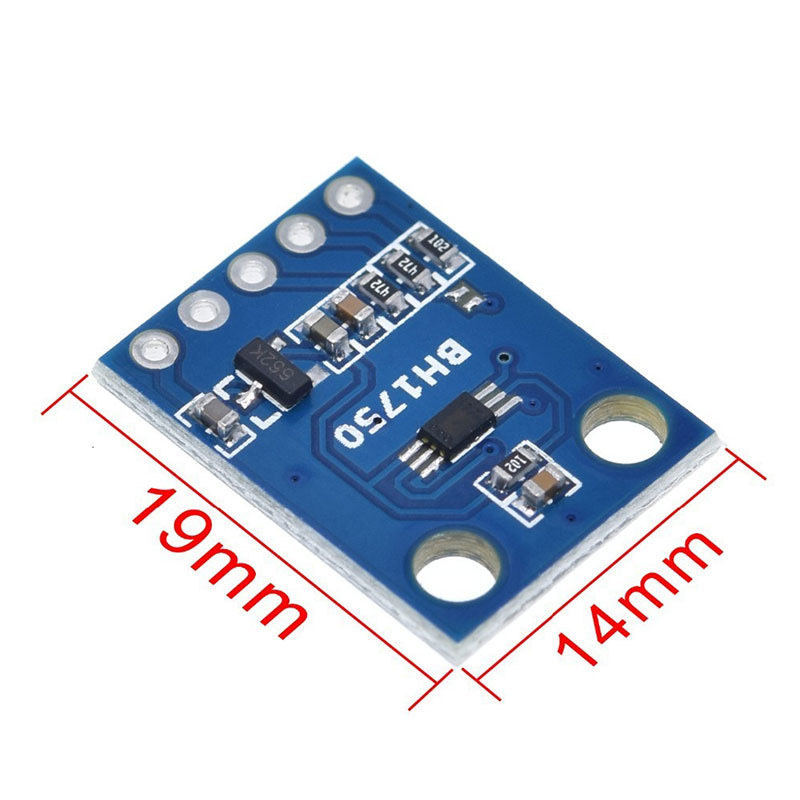

●Module size: 13.9 * 18.5mm

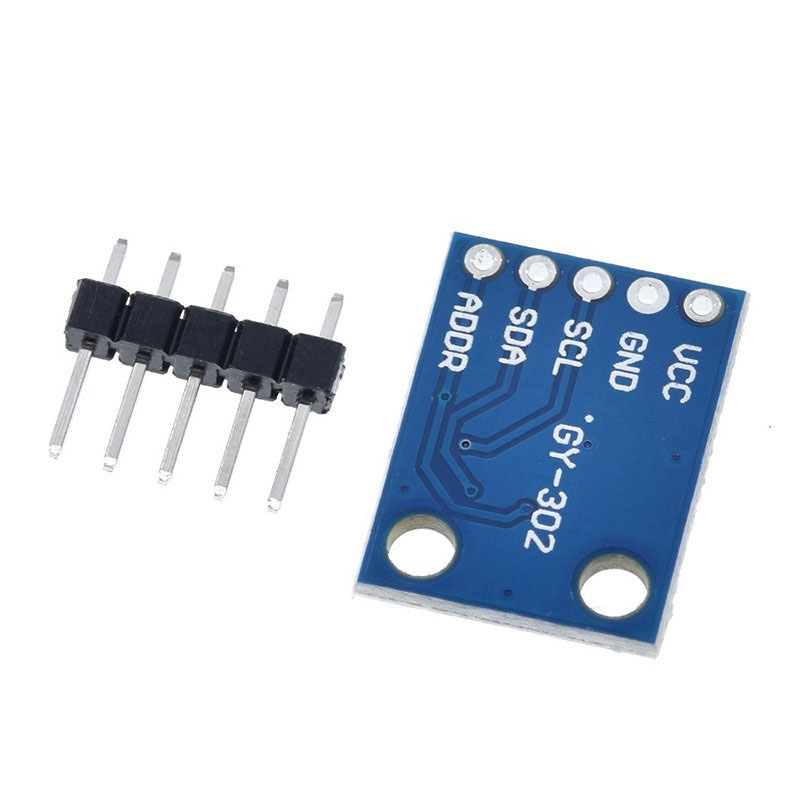

Pin Definition:
●VCC: power supply positive
●GND: ground
●SCL: 12C serial clock cable
●SDA: 12C serial data cable
●ADDR: 12C address selection pin
●When the ADDR is high level, the 7-bit 12C device address is 1011100
●When the ADDR is low level, the 7-bit 12C device address is 0100011
Instructions:
The 12C pin of the module has pulled up the resistance, so the user does not need to pull up again. When using, pay attention to the device address corresponding to the level of the ADDR pin. The ADDR pin pulls down the 4.7K resistance by default.
