- Product Name: GY-MS5837 02BA High-Precision Gas Liquid Waterproof Pressure Sensor Module
- Item NO.: GY-MS5837
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: GY-MS5837 , 02BA , Pressure Sensor Module
- Creation Time: 2024-05-07

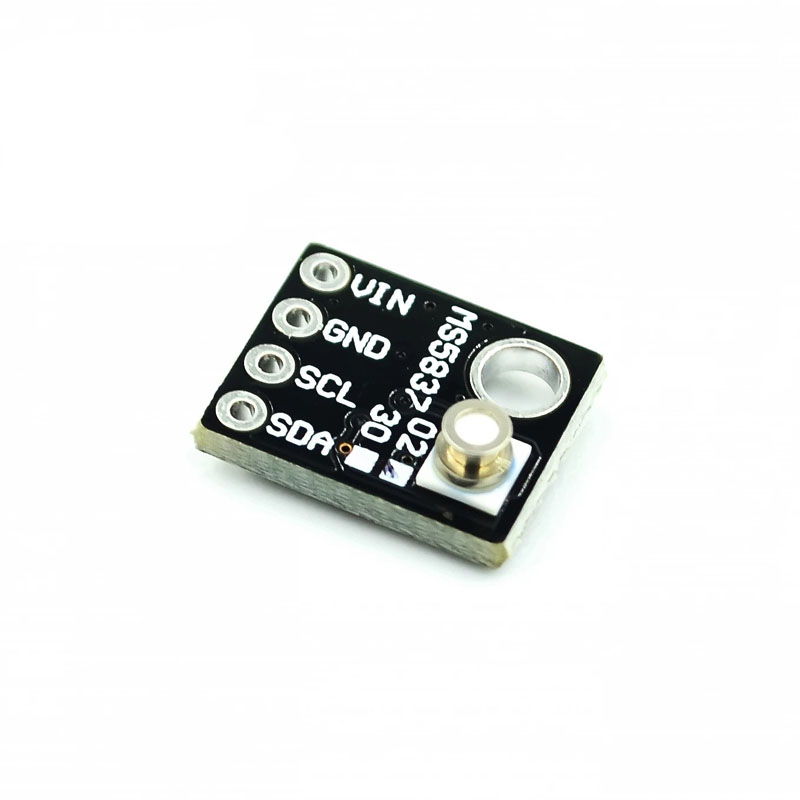

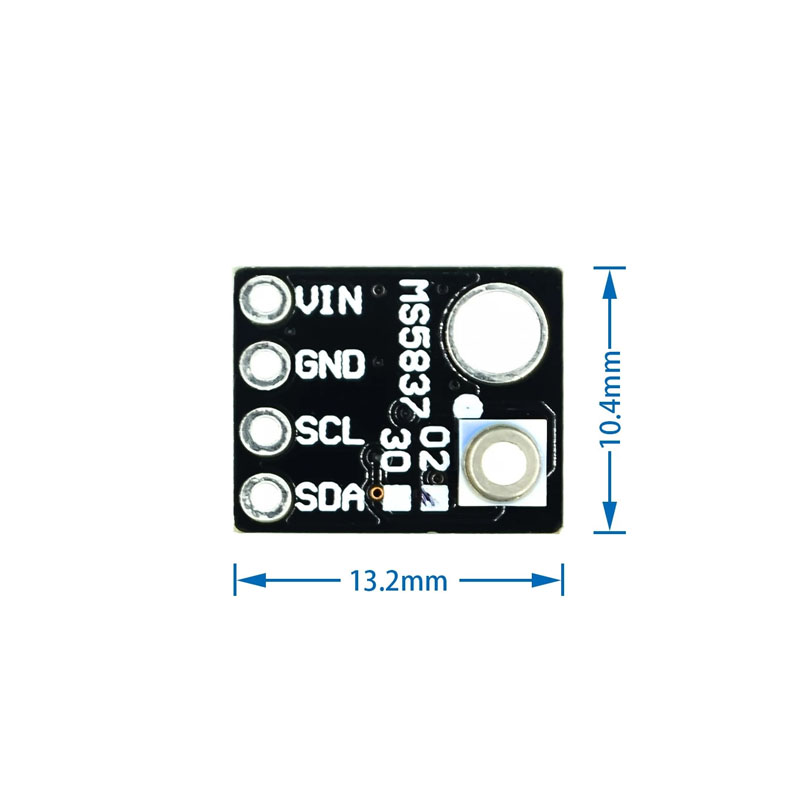

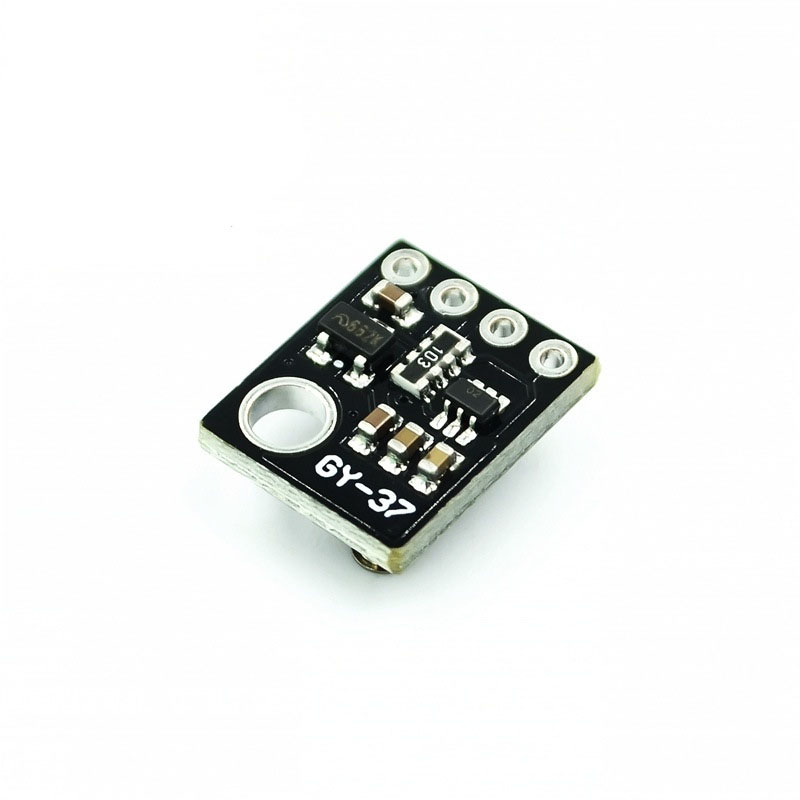

GY-MS5837 02BA Pressure Sensor Module
Product Summary:
The MS5837 is a high-resolution hydraulic sensor. It can measure water depth with a resolution of about 2mm and has an I2C interface.
The sensor itself is equipped with stainless steel and gel, and is designed to be waterproof. (The module is not waterproof) supporting 3.3V.
Product Characteristics:
● High resolution module, 0.2 mbar fast conversion, up to 0.5 ms low power consumption, 0.6 μ A (standby power<0.1 at 25 ° C μ A）
● Integrated digital pressure sensor (24 bit ADC)
● Power supply voltage: 1.5 to 3.6 V
● Temperature range: 20 to+85 degrees Celsius
● Interface: I2C interface
● No external components (internal oscillator)
● Excellent long-term stability
● Can be completely sealed, suitable for outdoor equipment
● Sealing design for 1.8 x 0.8 mm O-ring
● 02BA range 300mbar -------- 1200mbar
Package Includes:
1 x X GY-MS5837 02BA gas liquid pressure sensor module
