- Product Name: XY-L10A Battery Battery Charging Control Module Digital Full Charge Power Off Overcharge Protection Switch 6-60V
- Item NO.: XY-L10A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 6-60V , XY-L10A , Battery Battery Charging Control Module , Digital Full Charge Power Off Overcharge Protection Switch
- Creation Time: 2024-04-09

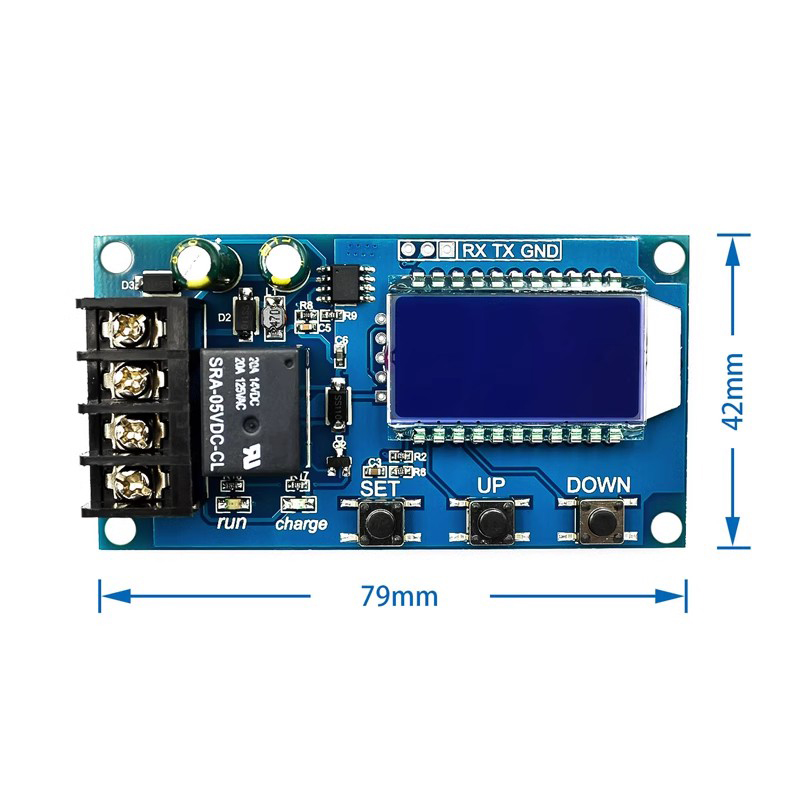

XY-L10A Battery Battery Charging Control Module

Module highlights:

1. Any 6-60V battery, lithium battery can be used;

2. LCD display, clear battery voltage, charging percentage, and charging time at a glance;

3. The function is very powerful, it can automatically charge and control the charging time, and corresponding parameters can be set and uploaded through the serial port;

Parameter settings:

a) Press and hold the SET key to enter the parameter setting interface, and the LCD will display SET;

b) After entering the parameter setting interface, briefly press the SET key to switch between the set parameters;

c) After selecting parameters, you can set them using the UP/DOWN key, which supports short and long pressing (quick increase or decrease);

d) To set other parameters, repeat steps b) and c);

e) After setting all parameters, press and hold the SET key to exit and save;

Key function description:

In the running interface (main interface),

Short press the SET button to display the current set parameters;

Short press the UP button to switch between displaying charging percentage and charging time;

Short press the DOWN button to select on/off relay enable. If the relay enable is off, 'OFF' will be displayed as a reminder, indicating that the relay is disconnected;

Press and hold the UP button to set the status of the LCD backlight (L-P). OFF: the backlight remains on, on: the backlight automatically turns off after 5-10 minutes;

Long press the SET button to enter parameter settings.
