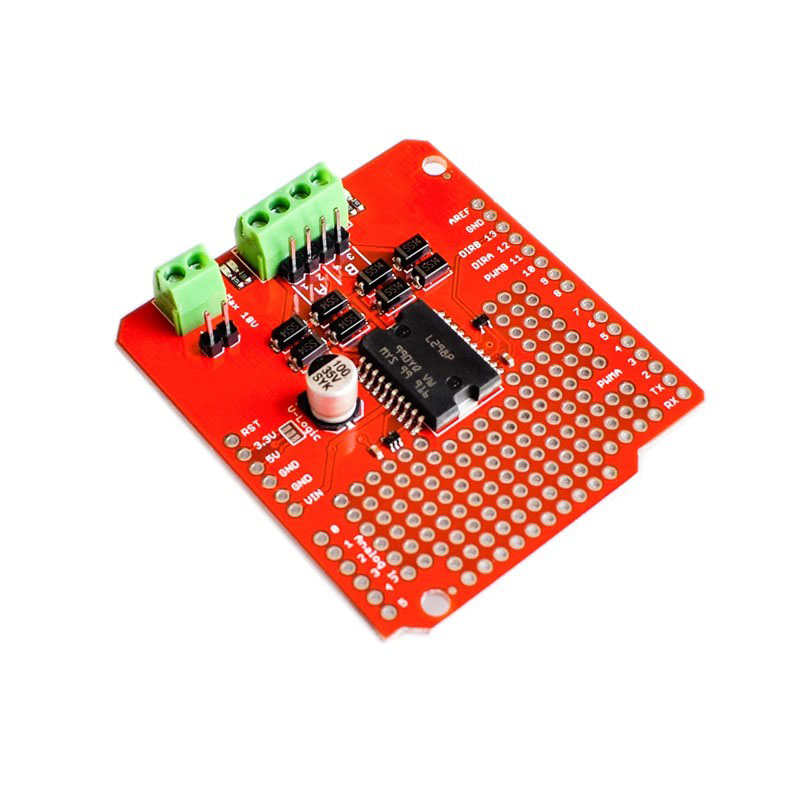

  • L298P High Current Dual Circuit Trolley Motor Drive Board



    Product Introduction:



    The Arduino motor drive board can control two DC motors.

    Based on the L298P H-bridge chip, Ardumoto can drive up to 2A current per circuit.

    The driving power supply and Arduino main control board have the same VIN, and the on-board ED indicates the driving direction and speed

    All drive lines have back electromotive force protection diodes.

    Ardumoto is a driver board with L298 H-bridge drive

    Mainly used to drive small DC motors.

    Ardumoto allows you to use small currents to control large currents (which can directly drive the current of the motor).



    Description:



    The new version of this shield allows for either 3.3 or 5v logic, a separate and more robust VIN connection, and the PWM input has been moved to pin 3

    This is a motor shield for Arduino that will control two DC motors Based on the L298 H-bridge, the Ardumoto can drive up to 2 amps per channel The board takes its power from the same Vin line as the Arduino board, including blue and yellow LEDs to indicate active direction, and all driver lines are protected from back EMF

    Control for motor attached to OUT1/2 is connected to digital line 12 (direction A) and digital line 3 (PWM A)

    Control for motor attached to OUT3/4 is connected to digital line 13 (direction B) and digital line 11 (PWM B) CJMCU

    Compatible screw terminals and connectors are listed below They are not included in this SKU You will need to add them to your car separately
