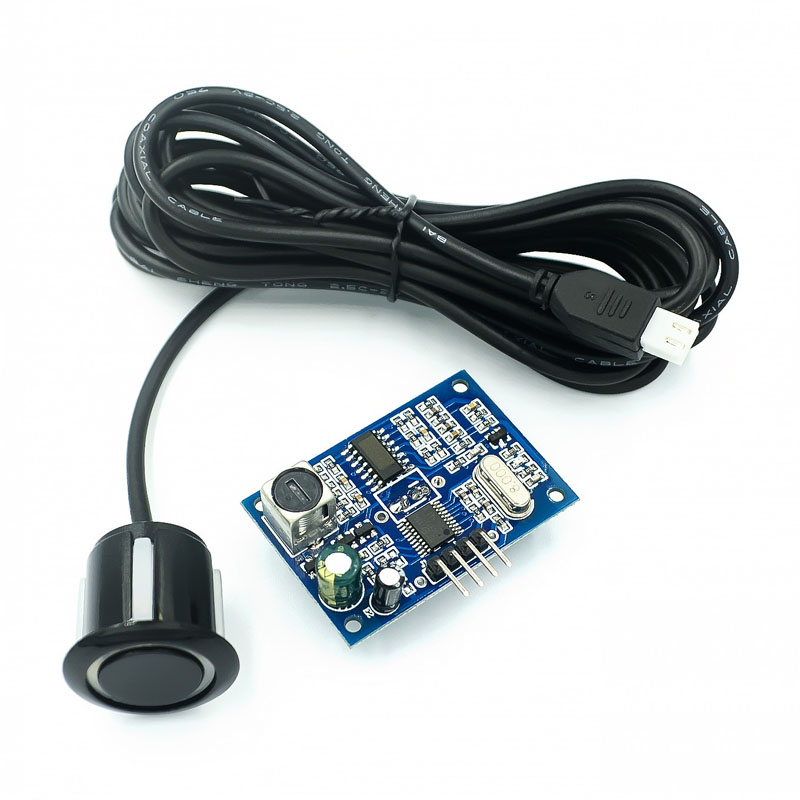

JSN-SR04T Integrated Ultrasonic Ranging Module

Product Description:

● This module is simple to use. If a control port sends a high level of more than 10US, you can wait for a high level output at the receiving port As soon as there is an output, you can turn on the timer for timing. When this port becomes low, you can read the value of the timer. At this time, it is the time of this distance measurement, and then you can calculate the distance. With such continuous periodic measurement, you can move the measured value.

● Stable performance, measuring distance. It can be connected with SRF05, SRF02 and other acoustic ranging modules abroad. High precision module, blind zone (25cm) and stable ranging are the strong basis for this product to successfully enter the market.

Product Parameters:

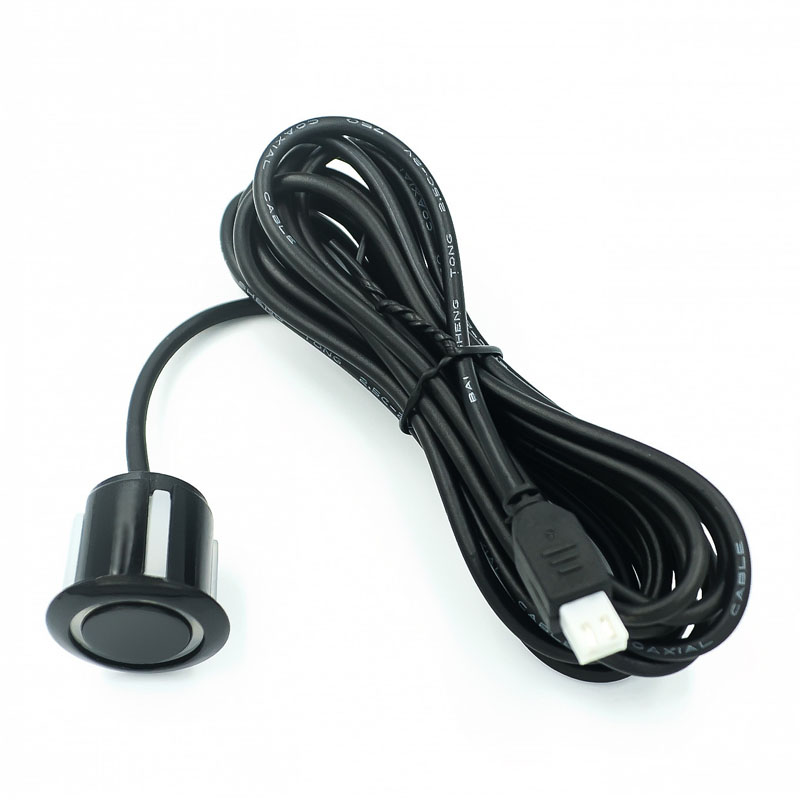

● Lead wire length: 2.5M

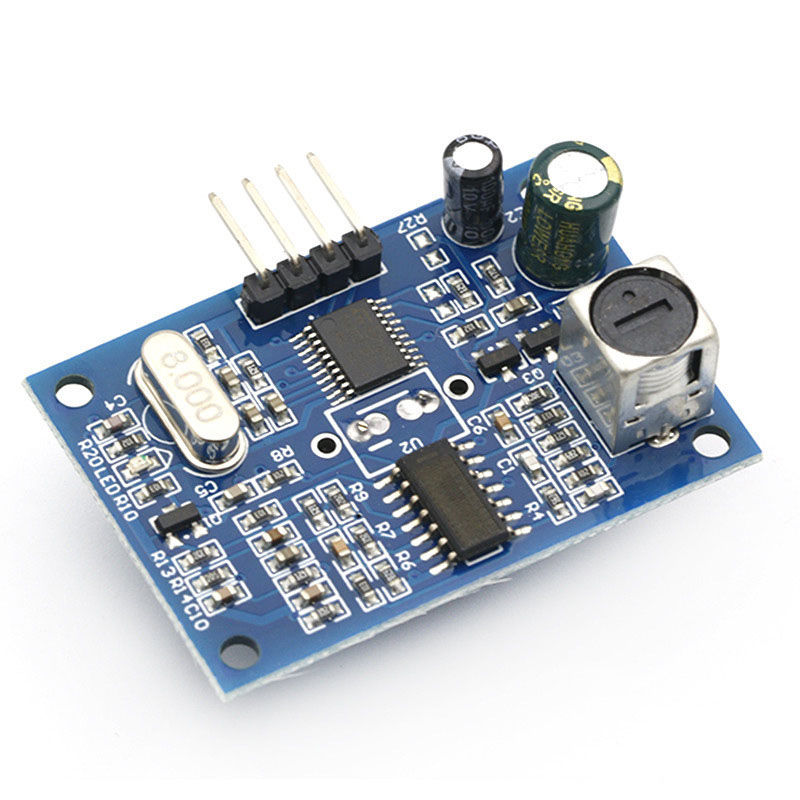

● Electrical parameters: JSN-SR04T

● Working voltage: DC 5V

● Static working current: 5mA

● Total working current: 30mA

● Acoustic wave transmission frequency: 40KHz

● Maximum distance of ranging: 5m

● Blind area: 25cm

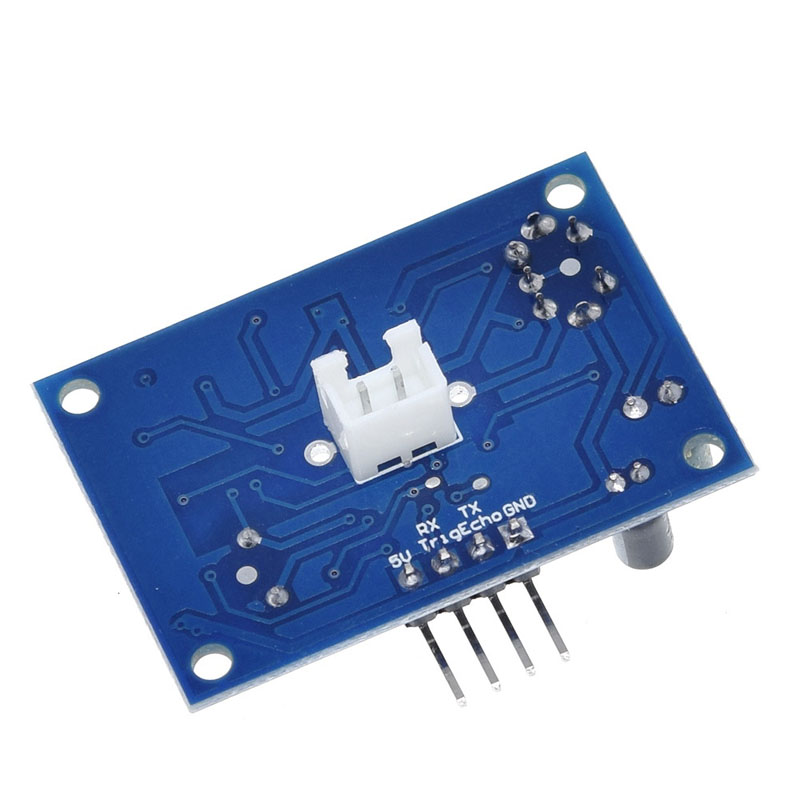

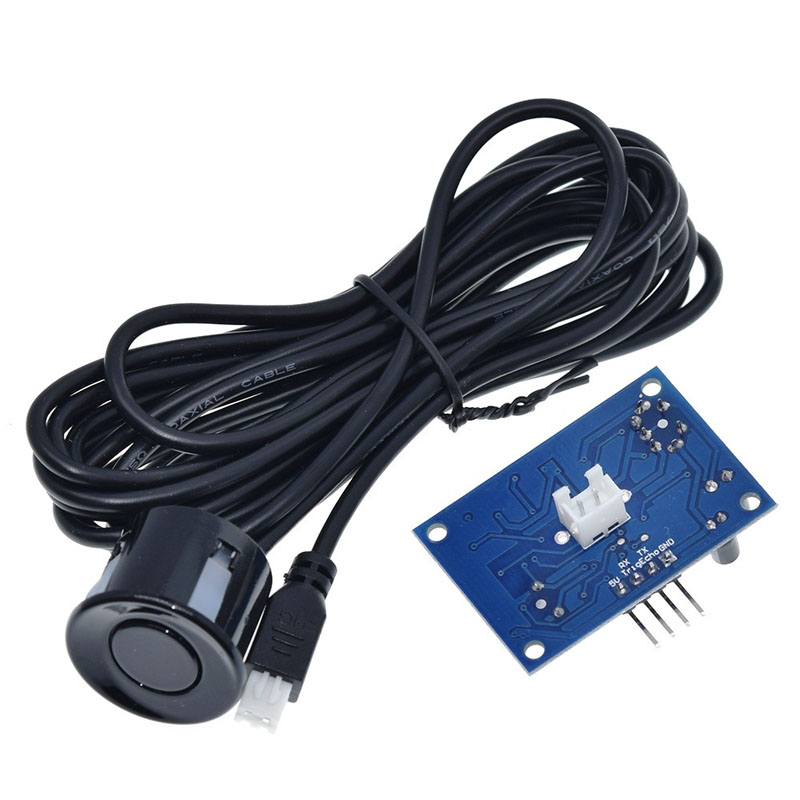

● Wiring mode:

+5V (positive pole of power supply)

Trig (control end) RX

Echo TX

GND (negative pole of power supply)

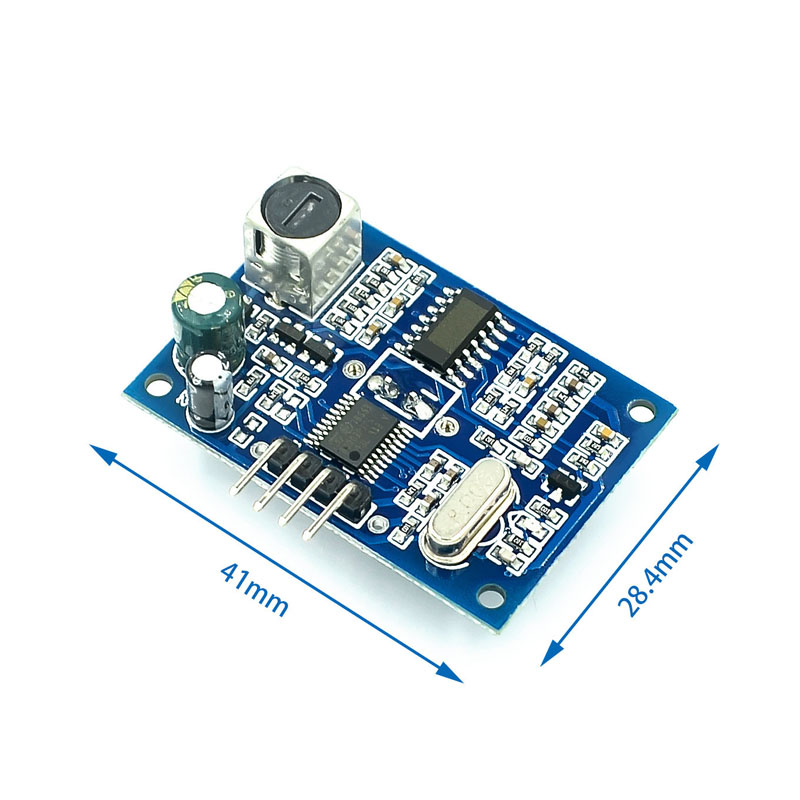

● Module size: 41mm * 28.5mm

● Resolution: about 0.5mm

● Angle: less than 50 degrees

● Operating temperature: - 10-70 ℃

● Storage temperature: - 20-80 ℃

Product Features:

1. Small size, easy to use;

2. Low voltage, low power consumption;

3. High measurement accuracy;

4. Strong interference;

5. The integrated closed waterproof tape line probe is suitable for wet and harsh measuring occasions.

Product Application:

1. Horizontal ranging;

2. Obstacle avoidance and automatic control;

3. Object approaching, presence detection

4. Traffic control;

5. Security and industrial control;

6. Artificial intelligence, teaching and research
