LIS3DSH Three-Axis High-Resolution Accelerometer Sensor Module LIS3DH 3-Axis AccelerationItem NO.: HW-664
-
Customized Requirements
- Quantity
-
-
- Product Name: LIS3DSH Three-Axis High-Resolution Accelerometer Sensor Module LIS3DH 3-Axis Acceleration
- Item NO.: HW-664
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Three-Axis , LIS3DSH , High-Resolution , Accelerometer Sensor Module , 3-Axis Acceleration
- Creation Time: 2024-04-13

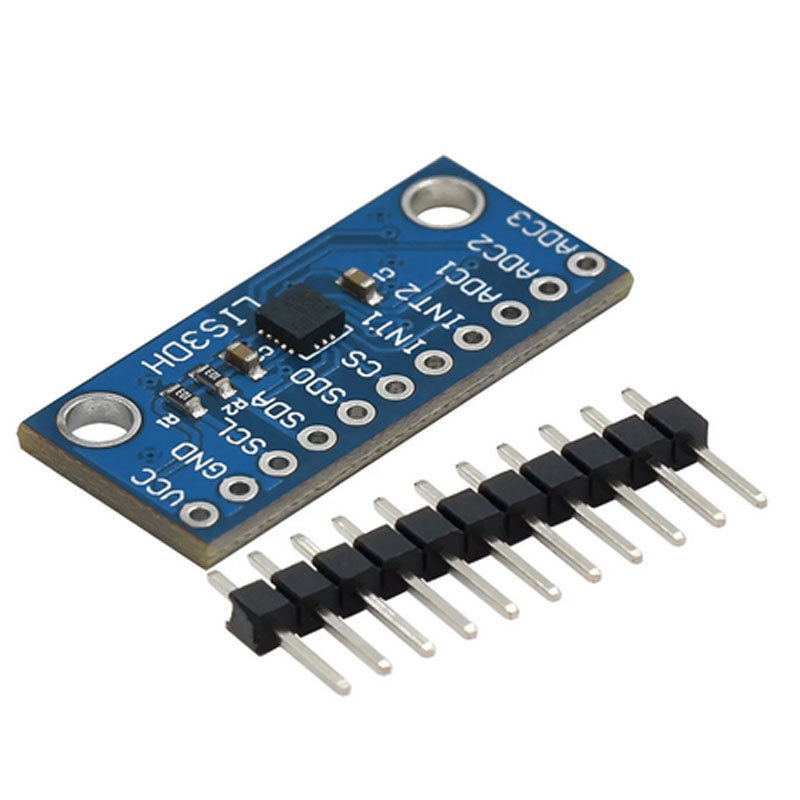

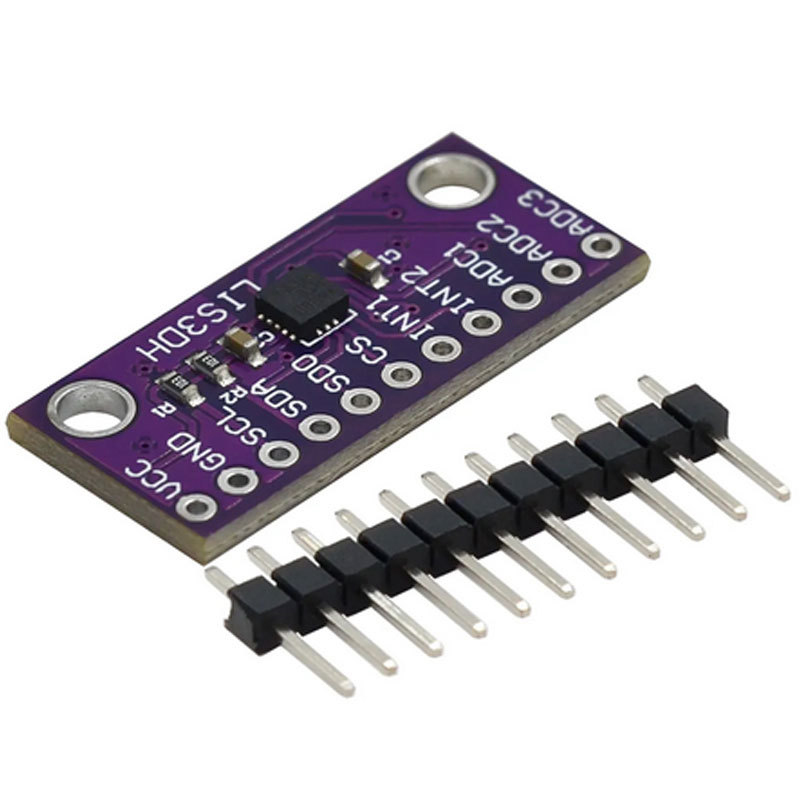

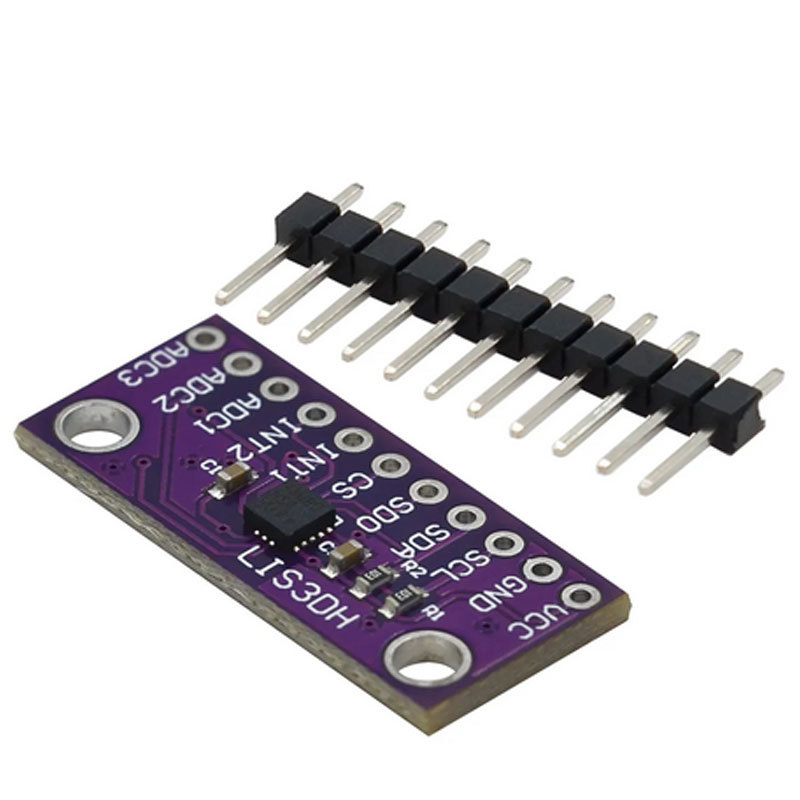

LIS3DSH Accelerator Sensor Module
Product Information:
LIS3DSH has two built-in finite state machine three axis high-resolution accelerometer modules
LIS3DSH is a family of ultra low power and high-performance triaxial linear accelerators belonging to the "nano" embedded state machine, which can be independently applied through programming.
The LIS3DSH has a dynamically selectable full scale of ± 2g/± 4G/± 6g/± 8G/± 16g, and is capable of measuring acceleration at output data rates ranging from 3.125 Hz to 1.6 kHz.
The self check function allows the user to check the functionality of the sensor in the final application.
This device can be configured to generate interrupt signals for user-defined motion mode activation.
The LIS3DSH has a comprehensive first, first out (FIFO) buffer that allows users to store data to reduce host processor intervention.
LIS3DSH is packaged in a small thin plastic grid array (LGA), which ensures operation in an extended temperature range from -40 ° C to+85 ° C
Main Features:
● Wide power supply voltage 1.71 V to 3.6 V
● Independent IO power supply (1.8V) and compatible with power supply voltage
● Ultra low power consumption of ± 2g/± 4G/± 6g/± 8G/± 16g dynamically selectable full scale
● IIC/SPI digital output interface
● 16 bit data output
● Programmable embedded state machine
● Embedded temperature sensor
● Embedded self testing
● Embedded first in, first out
● 10000 g high impact resistance
