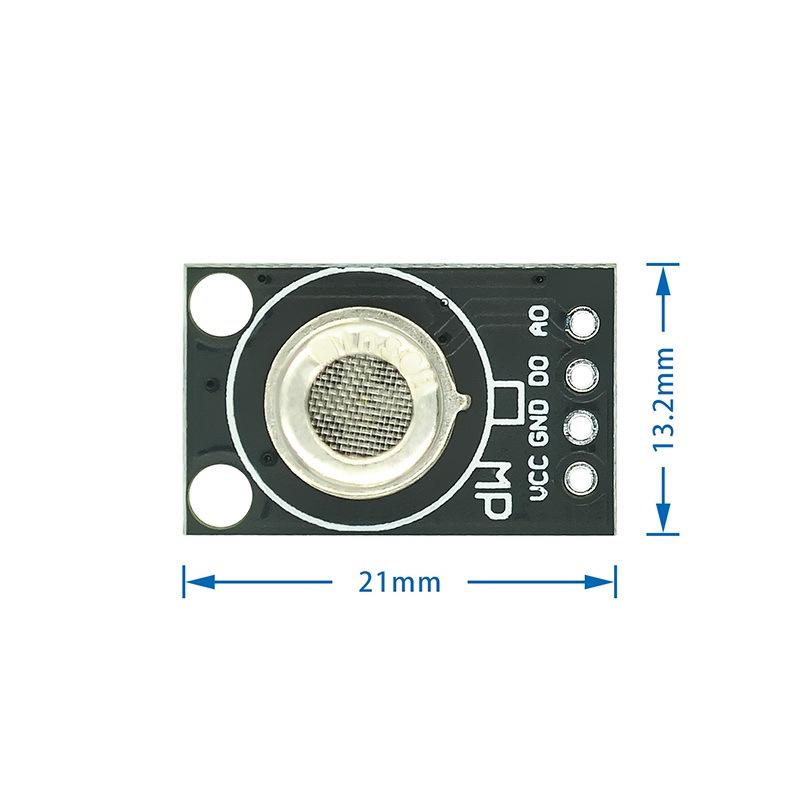

MP-2 MP-4 MP-135 Air Quality Smoke Natural Gas Combustible Gas Detection Sensor ModuleItem NO.: MP24135

MP-2 MP-4 MP-135 Gas Detection Sensor Module

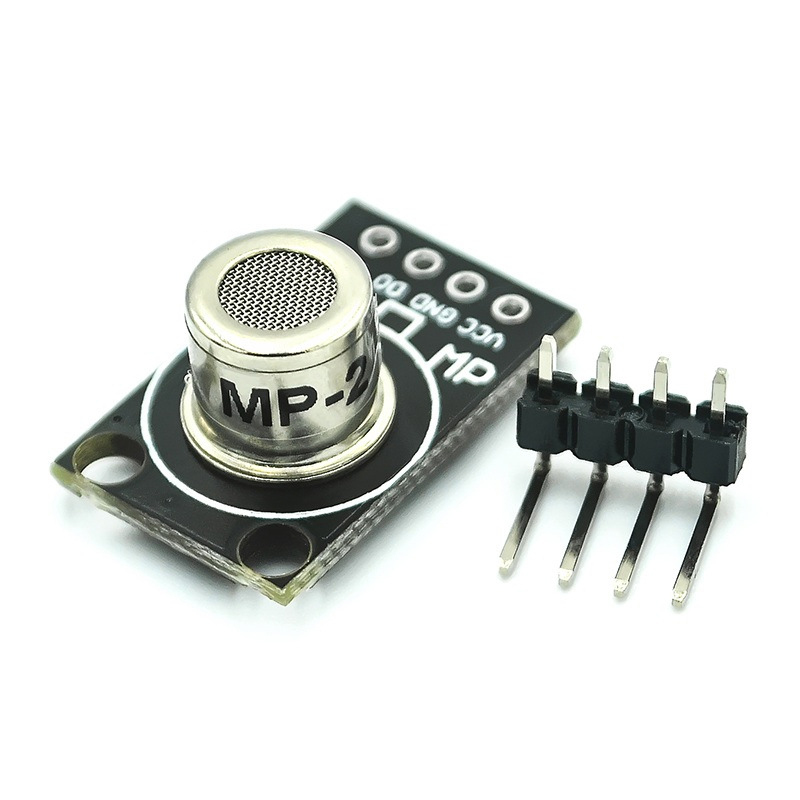

MP-2 Parameters:

● Product model: MP-2

● Product type: planar semiconductor gas sensor

● Standard packaging: metal packaging

● Detection gas: propane, smoke

● Detection concentration: 200~10000ppm C3H8

● Main features: This product has good sensitivity to propane, smoke, etc. over a wide concentration range, and is characterized by small size, long life, low cost, and simple driving circuit.

● Main applications: Widely applicable to household smoke alarms, industrial smoke alarms, and portable smoke detection instruments.

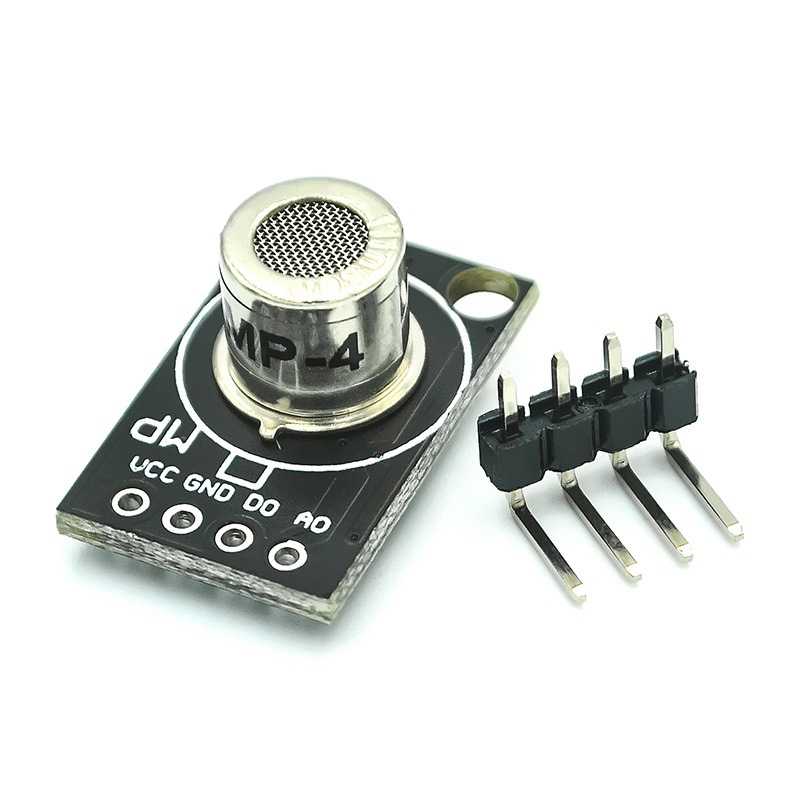

MP-4 Parameters:

● Product model: MP-4

● Product type: planar semiconductor gas sensor

● Standard packaging: metal packaging

● Detection gas: methane, natural gas, biogas

● Detection concentration: 300~10000ppm (methane, natural gas)

● Main features: This product has good sensitivity to methane within a wide concentration range, and has advantages such as strong anti-interference ability, low power consumption, fast response recovery, good stability, long life, low cost, and simple driving circuit.

● Main applications: 1. Combustible gas leakage monitoring devices and fire/safety detection systems for household, factory, and commercial use. 2. Combustible gas leakage alarm and gas leakage detector.

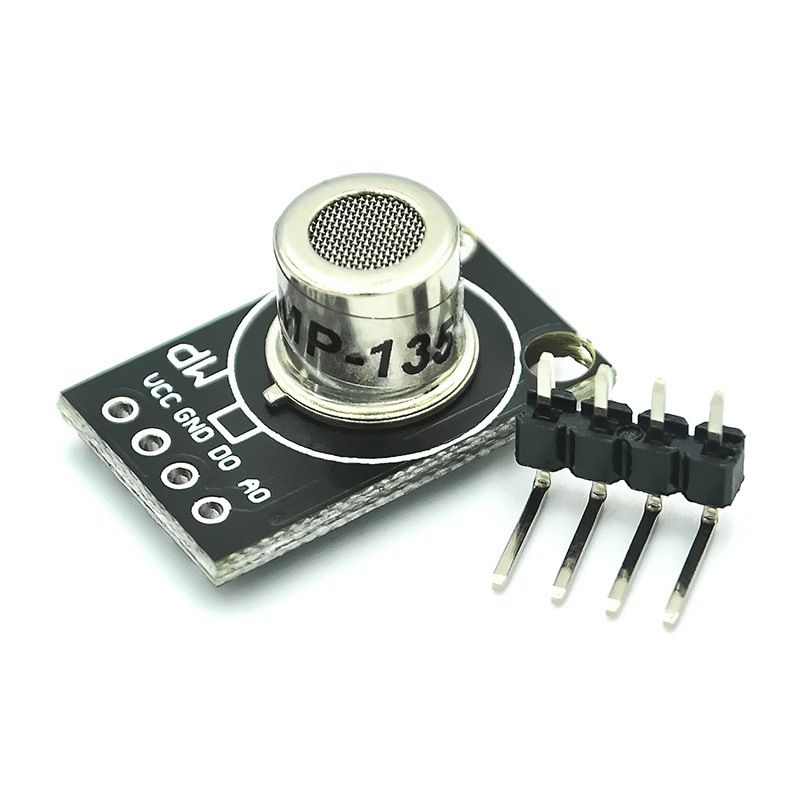

MP-135 Parameters:

● Product model: MP-135

● Product type: planar semiconductor gas sensor

● Standard packaging: metal packaging

● Detected gases: alcohol, smoke, isobutane, formaldehyde

● Detection concentration: 1~1000ppm C3H8 (alcohol)

● Main characteristics: This product has high sensitivity to alcohol, smoke, isobutane, and formaldehyde; It has the advantages of fast response recovery, low power consumption, simple detection circuit, good stability, and long service life.

● Main applications: for detecting harmful gases in the home environment and offices, automatic exhaust devices, air fresheners, etc
