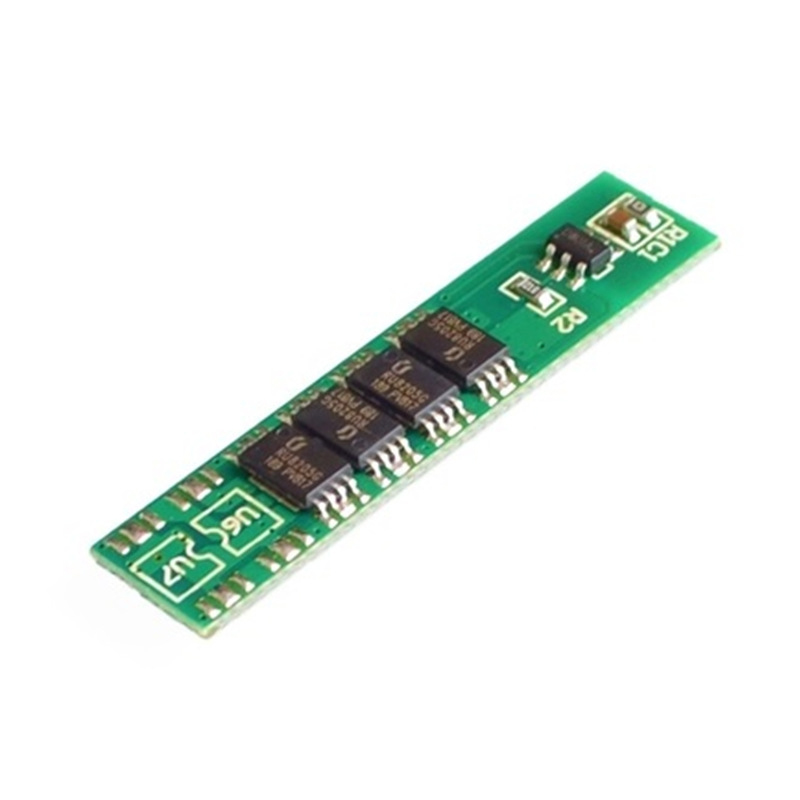

Single 3.7V Lithium Battery Protection Board 3/4/6 MOS 18650 Polymer Protection Board 7.5A Working CurrentItem NO.: 3.7V34MOS
-
Customized Requirements
- Quantity
-
-
- Product Name: Single 3.7V Lithium Battery Protection Board 3/4/6 MOS 18650 Polymer Protection Board 7.5A Working Current
- Item NO.: 3.7V34MOS
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 18650 , Lithium Battery Protection Board , 3.7V , Single , 3/4/6 MOS , Polymer Protection Board , 7.5A
- Creation Time: 2024-03-24
Single 3.7V Lithium Battery Protection Board 3/4/6 MOS

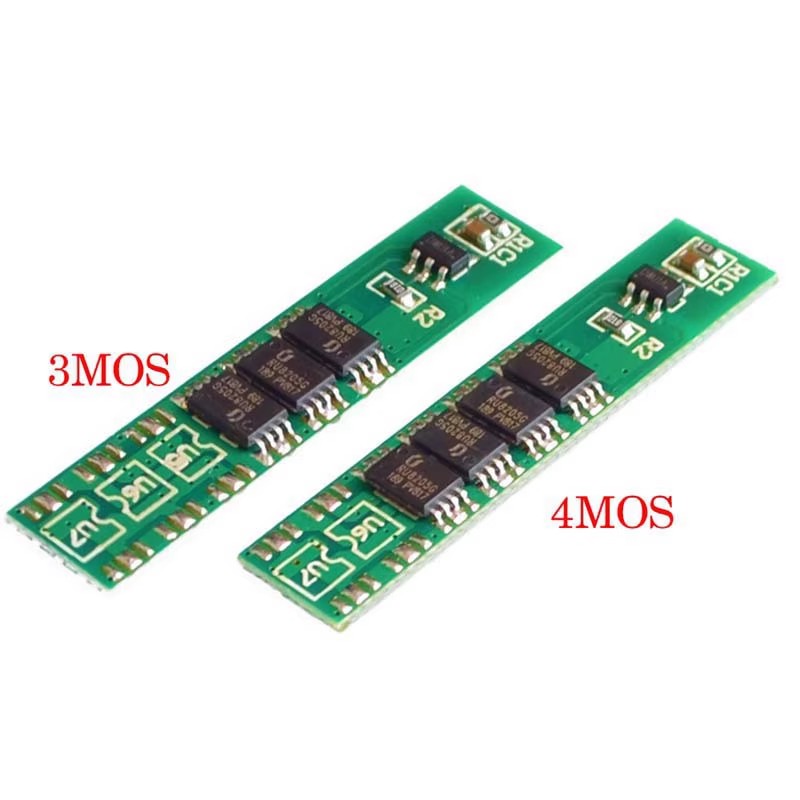

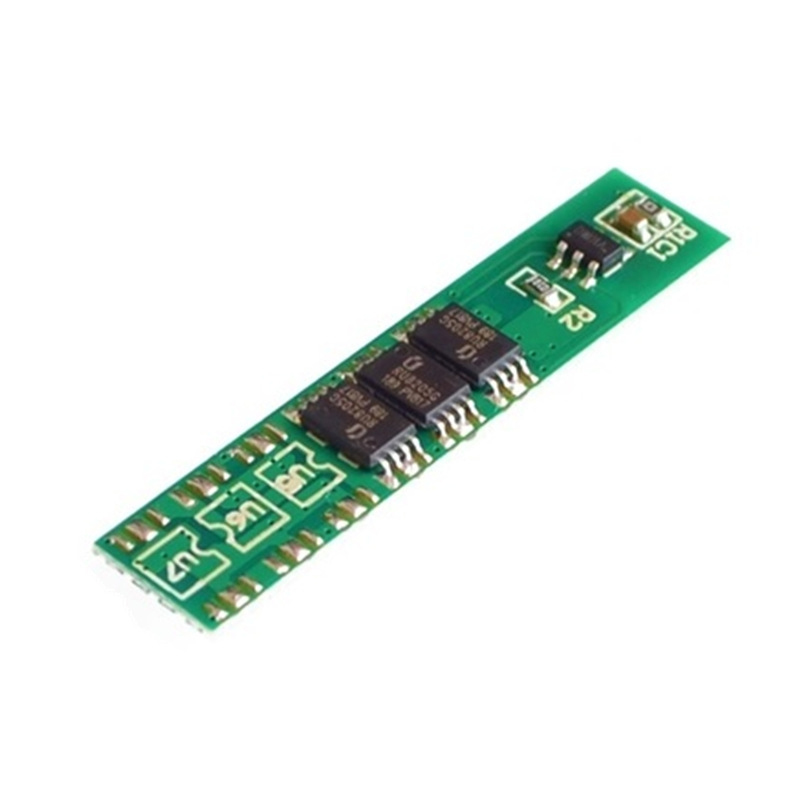

3/4MOS technical parameters:
Overcharge detection voltage: 4.25 ± 0.05V
Overcharge release voltage: 4.23 ± 0.05V
Overdischarge detection voltage: 2.45 ± 0.1V
Upper limit continuous current: 7.5A
Overcurrent detection current: 10A
Charging voltage: 4.2V
Product size: 35 * 7.6 * 2MM
IC components: DW01+8205A * 3/DW01+8205A * 4

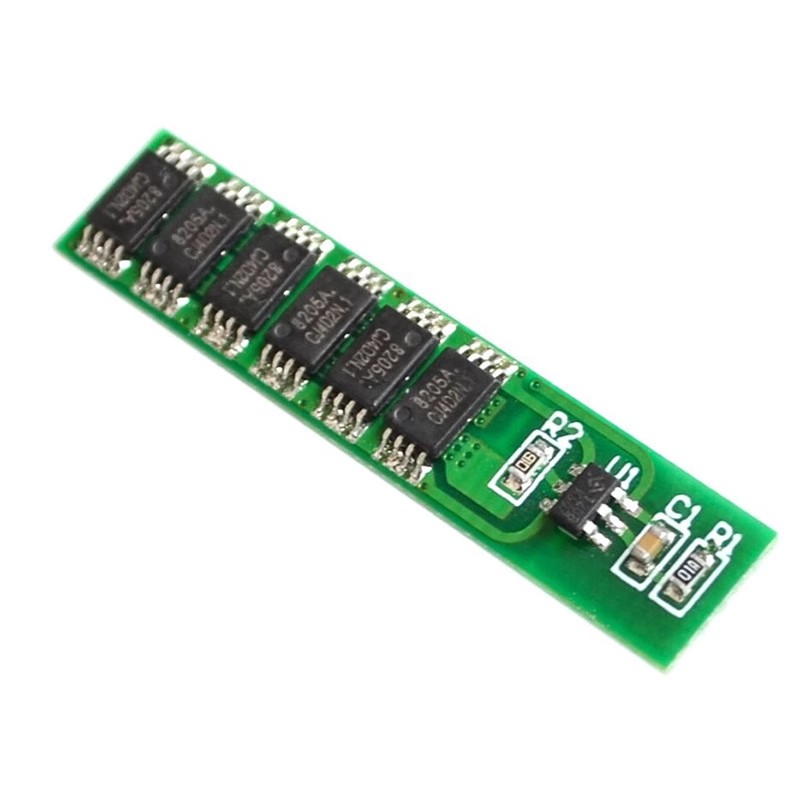

6MOS technical parameters:
Overcharge detection voltage: 4.25 ± 0.05V
Overcharge release voltage: 4.23V ± 0.05V
Overdischarge detection voltage: 2.45 ± 0.1V
Upper limit continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 4.2V
Product size: 35 * 7.4 * 2.2MM
MOS: 8205A * 6
Wiring instructions:
B+is connected to the positive pole of the battery.
B - Connect to the negative electrode of the battery.
P+is the output and input positive pole of the battery pack
P - is the output and input negative pole of the battery pack
