Mini DC Motor PWM Governor 3V6 12 24 35V Speed Control Switch Ultra Small LED Dimmer 5AItem NO.: HW-688
-
Customized Requirements
- Quantity
-
-
- Product Name: Mini DC Motor PWM Governor 3V6 12 24 35V Speed Control Switch Ultra Small LED Dimmer 5A
- Item NO.: HW-688
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 5A , Speed Control Switch , DC Motor PWM Governor , 3V6 12 24 35V , Ultra Small LED Dimmer
- Creation Time: 2024-05-15

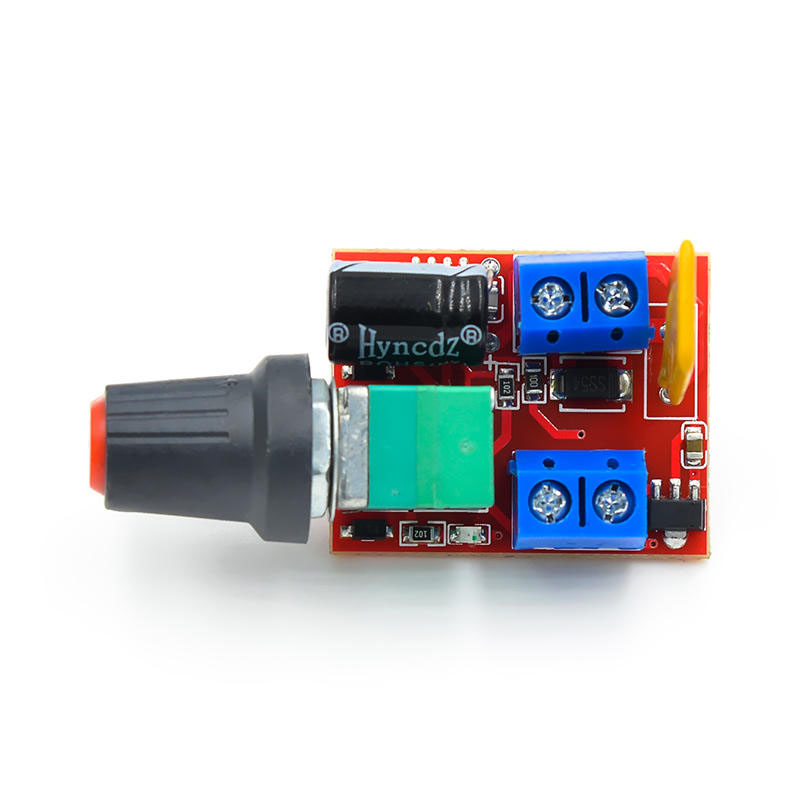

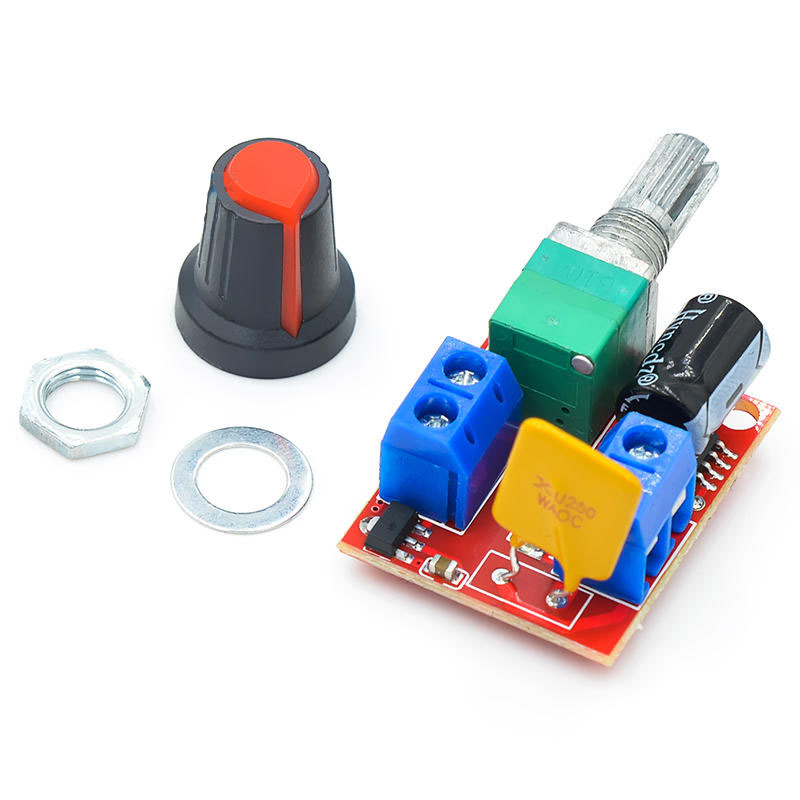

5A Speed Control Switch 3-35V
Product Description:
The new mini wide voltage DC motor speed controller adopts Zui's new low voltage drive technology. Among similar products, the current is as high as 5A and the volume is as small as a 1 yuan coin. It is suitable for a voltage range of 3-35V and is equipped with a self recovery fuse. With 5 years of experience in speed controller design, it is a pocket sized DC speed controller with stable performance and high cost-effectiveness among similar products. It is also suitable for LED dimming.
Equipped with high voltage and high current self recovery fuse, it will automatically disconnect in case of overcurrent. After cooling down for a few seconds after power failure, the fuse will automatically recover, and there is almost no need to replace the fuse
The input voltage selection is divided into two levels. The default is to disconnect the short contact and apply a voltage of 5-35V input. If connecting the short contact, apply a low voltage of 3-15V input. If shipping, the default is to disconnect the short contact and apply a voltage of 5-35V input. If necessary, the low voltage input level can be changed by yourself
(1) Working voltage: DC3V-35V (2) Control power: 90W ()
(3) Static current: 0.015A (in standby mode)
(4) PWM duty cycle: 1%-
(5) PWM frequency: 10kHz
Shell size: 30MM x 24MM wide (excluding handle), total height 15MM
Net weight: 0.015KG
