TSL2584TSV Digital Ambient Light Sensor Module TSL2584 Light Intensity Light Sensor I2C CommunicationItem NO.: TSL2584TSV

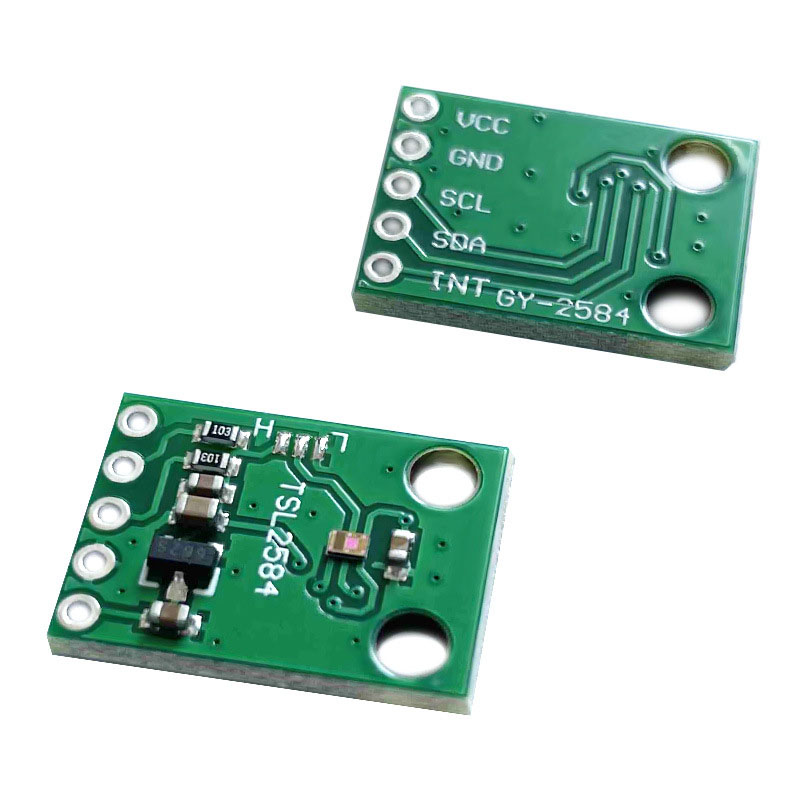

TSL2584TSV Digital Ambient Light Sensor Module

Product Introduction：

The TSL2584TSV is a very-high sensitivity light-to-digitalconverter that transforms light intensity into a digital signaloutput capable of direct I²C interface. The device combines onebroadband photodiode (visible plus infrared), oneinfrared-responding photodiode, and a photopicinfrared-blocking filter on a single CMOS integrated circuit. Twointegrating ADCs convert the photodiode currents into a digitaloutput that represents the irradiance measured on eachchannel. This digital output can be input to a microprocessorwhere illuminance (ambient light level) in lux is derived usingan empirical formula to approximate the human eye response.The TSL2584TSV supports a traditional level style interrupt thatremains asserted until the firmware clears it.

Benefits Features:

● Approximates Human Eye Response

● Dual Diode with Photopic Filter

● Flexible Operation

● Programmable Analog Gain and Integration Time

● Suited for Operation Behind Dark Glass

● 1000000: 1 Dynamic Range

● Low Operating Overhead

● Programmable Upper and Lower Thresholds

● Programmable Persistence Filter

● Low Power

● 3.0 μA Sleep State

● Industry Standard Two-Wire Interface

● I2C Fast Mode Compatible Interface

● Data Rates up to 400 kbit/s

● Input Voltage Levels Compatible with1.8−V Bus

The TSL2584TSV Applications Include:

● Display Backlight Control

● Keyboard Illumination Control

● Printer Paper Detection

● Medical Diagnostics

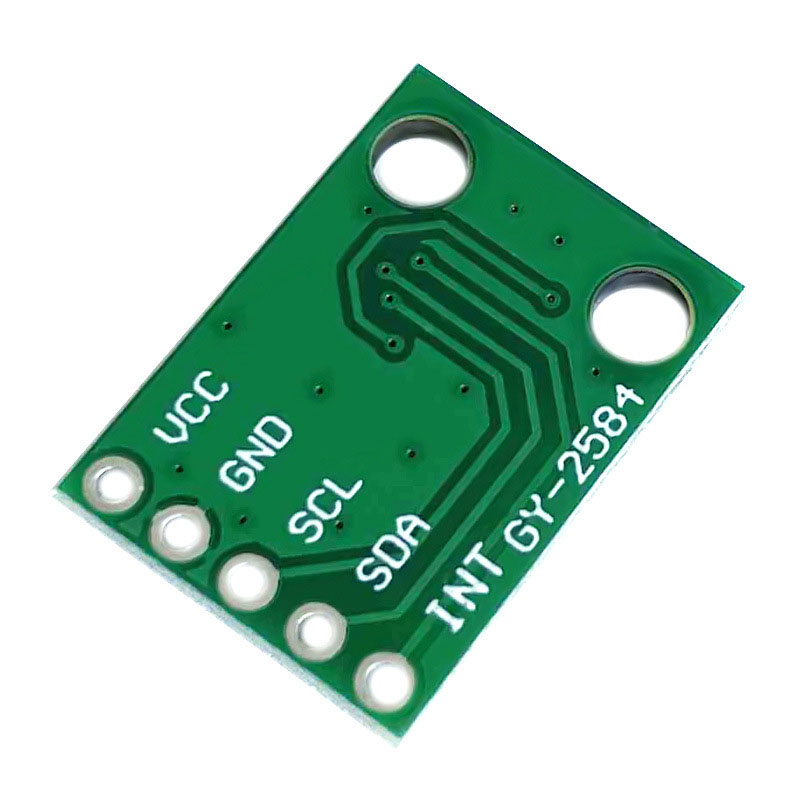

Interface Description:

● VCC: power supply positive (3.3V/5V power input)

● GND: power ground

● SDA: I2C data pin

● SCL: I2C clock pin

● INT: interrupt output pin, not connected
