Customized Requirements
- Quantity
-
-
- Product Name: Touch Switch Module Double Sided Touch Sensor TouchPad 4p/3p Interface
- Item NO.: HW-185
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Touch Switch Module , Double Sided Touch Sensor
- Creation Time: 2024-04-15

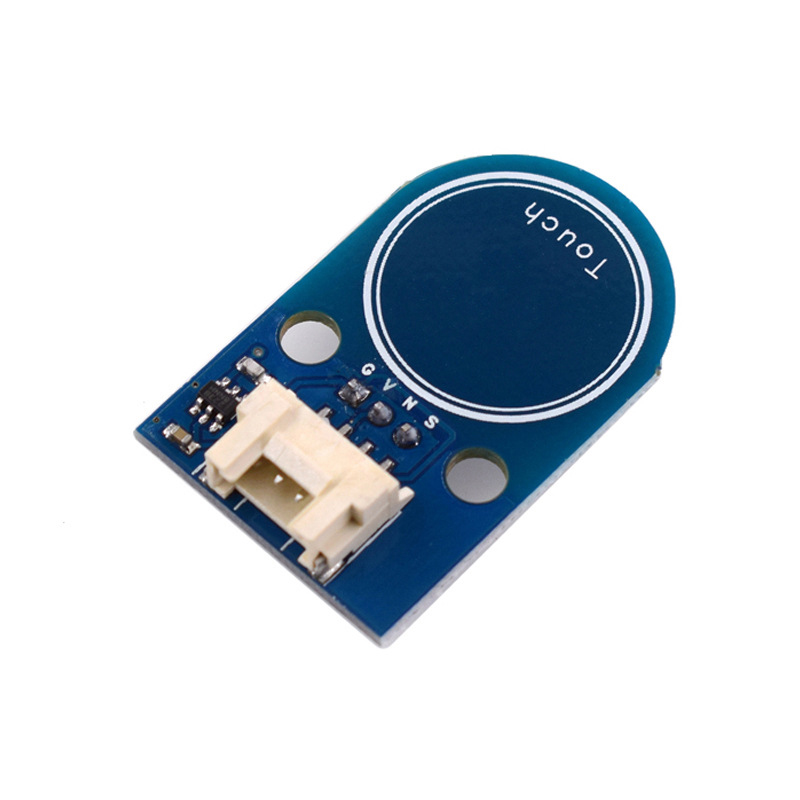

Double Sided Touch Sensor
Product Introduction:
3-wire electronic building block interface, input 5V - GND. The S-pin outputs pulses or levels according to the jumper settings. Depending on the jumper settings, it can be set to sense the touch as a high level output or a high level pulse output.
Product Features:
1.Plug and play, easy to use. It is compatible with the mainstream 2.54 pitch interface and the 4P Grove interface in the market.
2.Using M4 standard fixing holes, compatible with LEGO, makeblock, and other similar M4 standard kits.
Product Specification:
● PCB size: 38.0mm X 24.0mm X 1.6mm
● Working voltage: 3.3 or 5V DC
● Operating voltage: 3.3 or 5V DC
● Compatible interface: 2.54-pitch 3-pin interface and Grove 4-pin interface (1)
Note 1: S represents a digital output port, N represents an idle pin, and V and G represent power and ground. Without operation, the digital output is VDD; When the touch button is pressed, the digital output is 0V.
