RCWL-0516 Microwave Radar Induction Switch Module Human Body Induction Module Intelligent Induction DetectorItem NO.: RCWL-0516
-
Customized Requirements
- Quantity
-
-
- Product Name: RCWL-0516 Microwave Radar Induction Switch Module Human Body Induction Module Intelligent Induction Detector
- Item NO.: RCWL-0516
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: RCWL-0516 , 0516 , Microwave Radar Induction Switch Module , Human Body Induction Module , Intelligent Induction Detector
- Creation Time: 2024-04-12

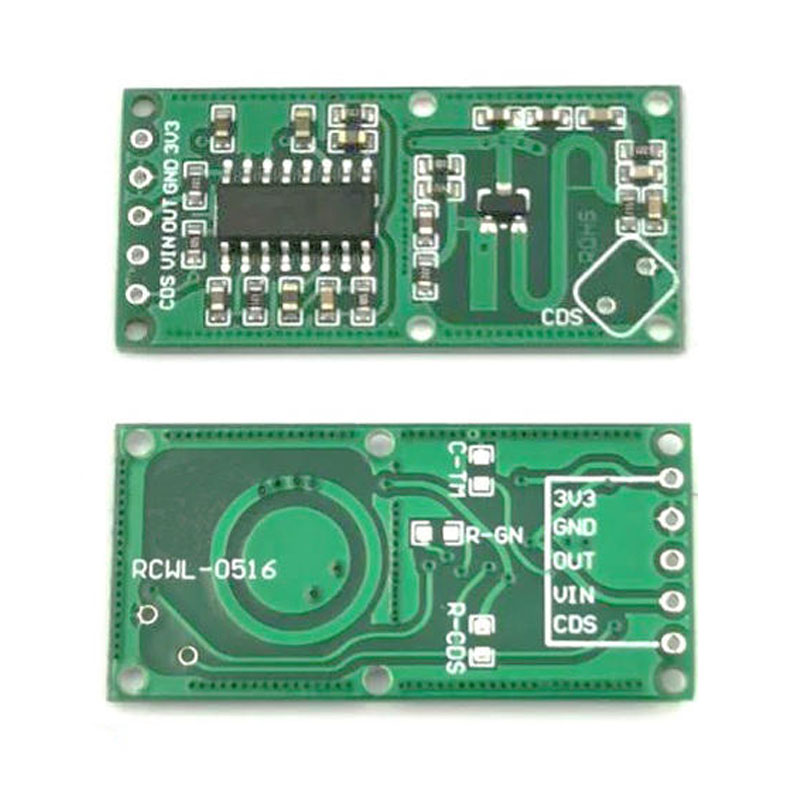

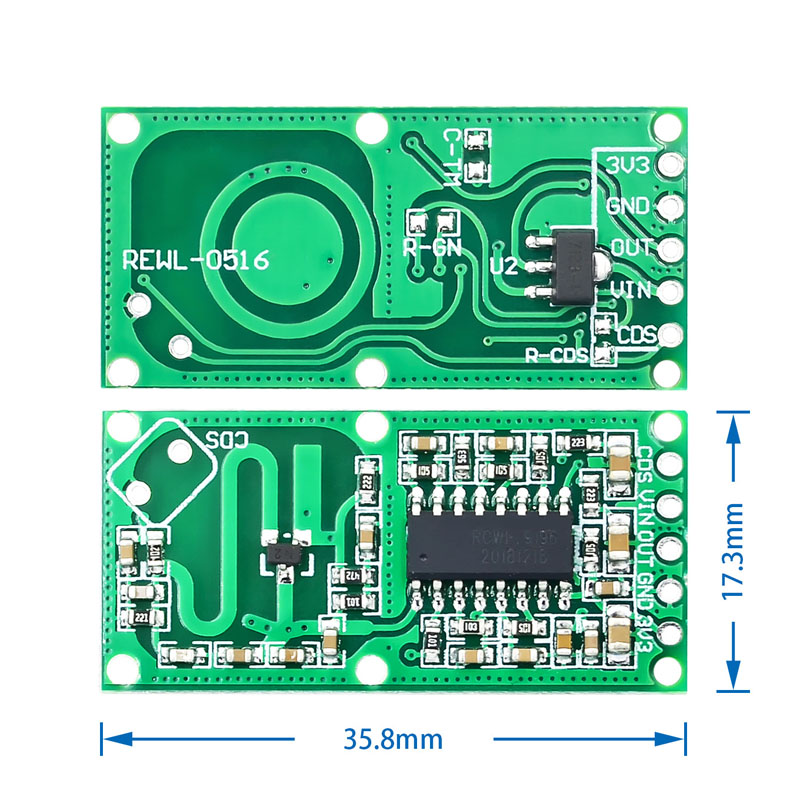

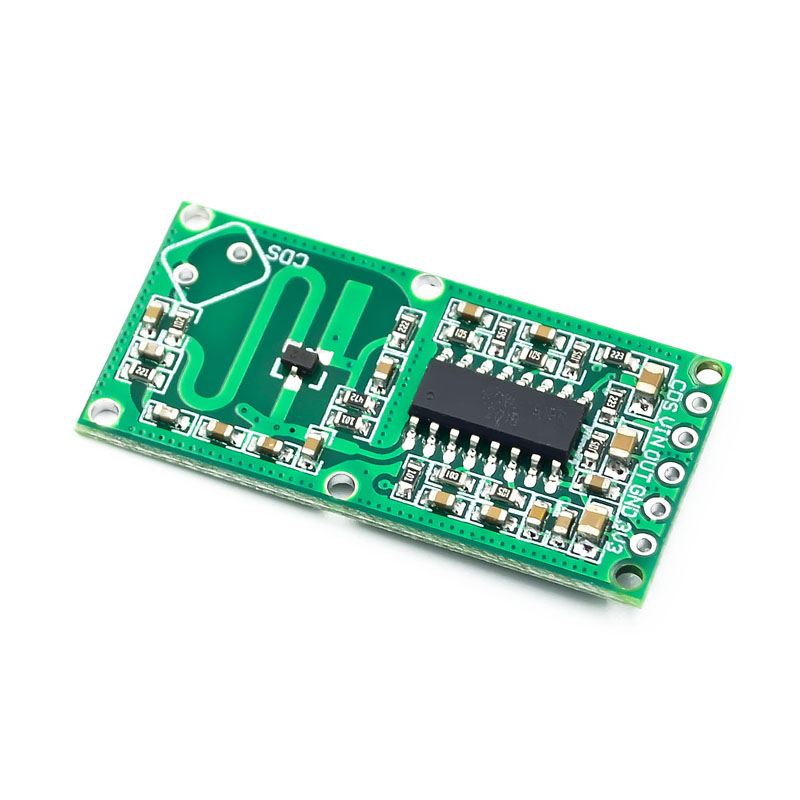

RCWL-0516 Microwave Induction Module
Product Overview:
RCWL-0516 is a microwave induction module that uses Doppler radar technology to detect logistics movement. The module has the characteristics of high sensitivity, long sensing distance, strong reliability, large sensing angle, wide power supply voltage range, etc. It is widely used in various occasions such as human inductive lighting and anti-theft alarm.
Product Features:
1. Using special signal processing control chip RCWL-9196
2. Wide working voltage range: 4.0~28V
3. Compared with traditional infrared induction PIR, it has penetration detection capability
4. Blocking time, distance adjustable
5. Output 3.3V power supply
Product Features(2022 model):
1.Compatible with the old RCWL-0516 model
2.Wide voltage (3.3-25V)
3.Long distance (6-12 meters)
4.Gain and adjustable delay reservation
5.Frequency 2.7G
6.High penetration, can be placed inside the shell
