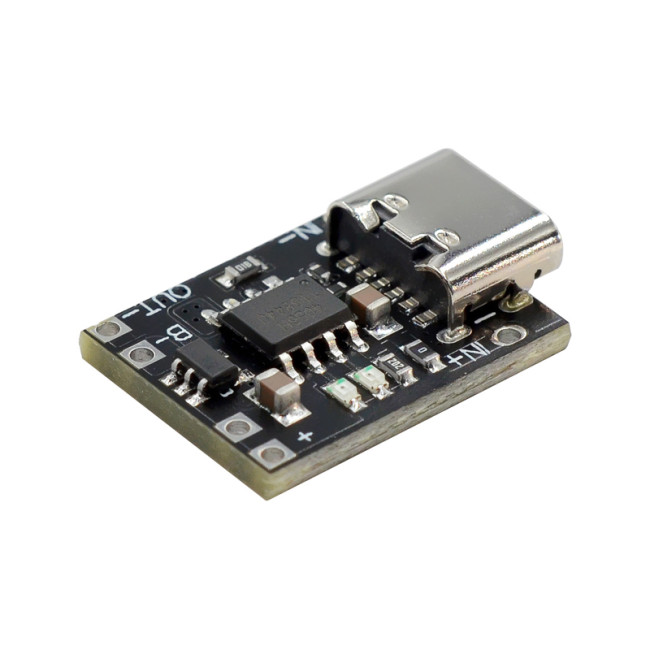

Ultra Small Ternary Lithium Battery Charging Board 1A 3.7V4.2V Charger Module Type-C Interface with Protection BoardItem NO.: 1A3.7V4.2VType-C
-
Customized Requirements
- Quantity
-
-
- Product Name: Ultra Small Ternary Lithium Battery Charging Board 1A 3.7V4.2V Charger Module Type-C Interface with Protection Board
- Item NO.: 1A3.7V4.2VType-C
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Charger Module , Ultra Small Ternary Lithium Battery Charging Board , 1A 3.7V4.2V , Type-C Interface , with Protection Board
- Creation Time: 2024-04-09

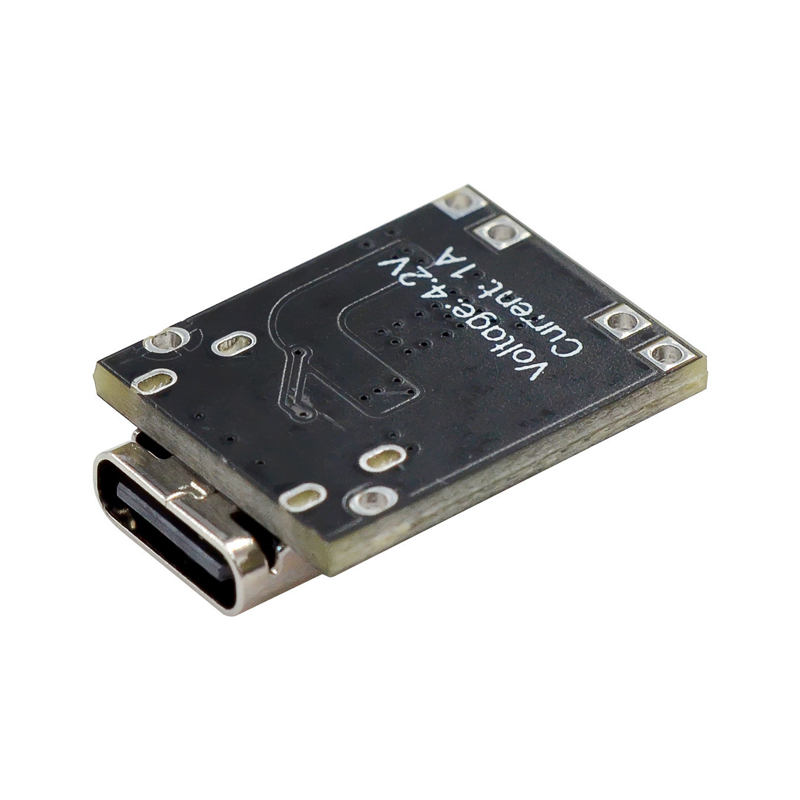

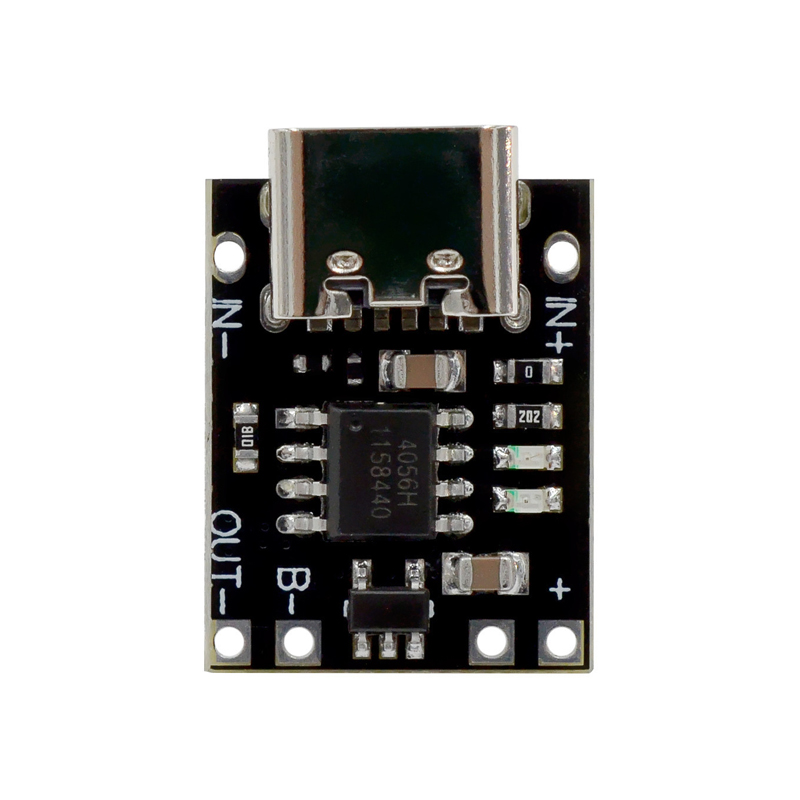

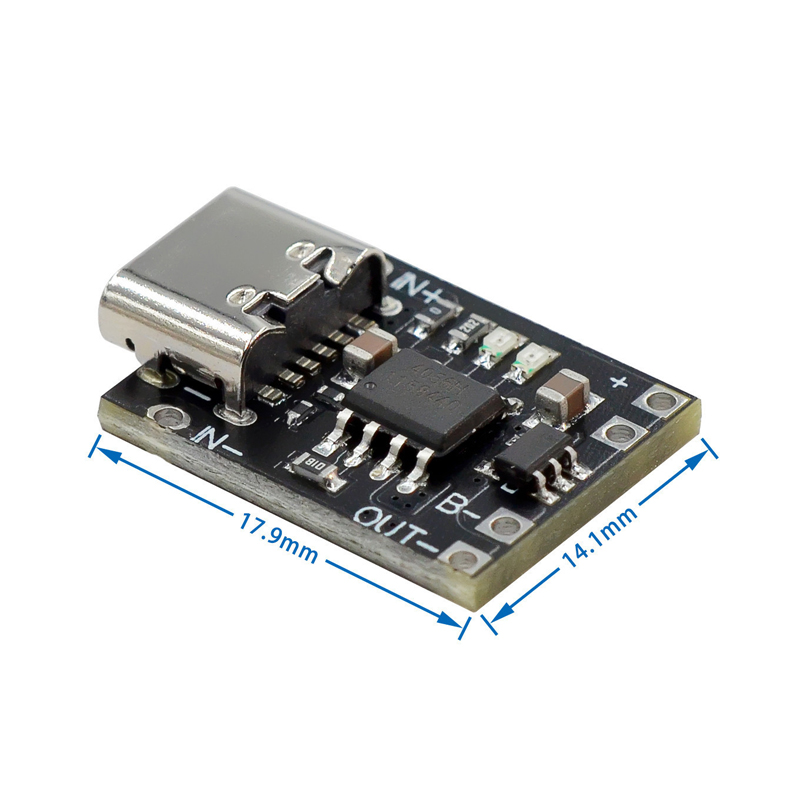

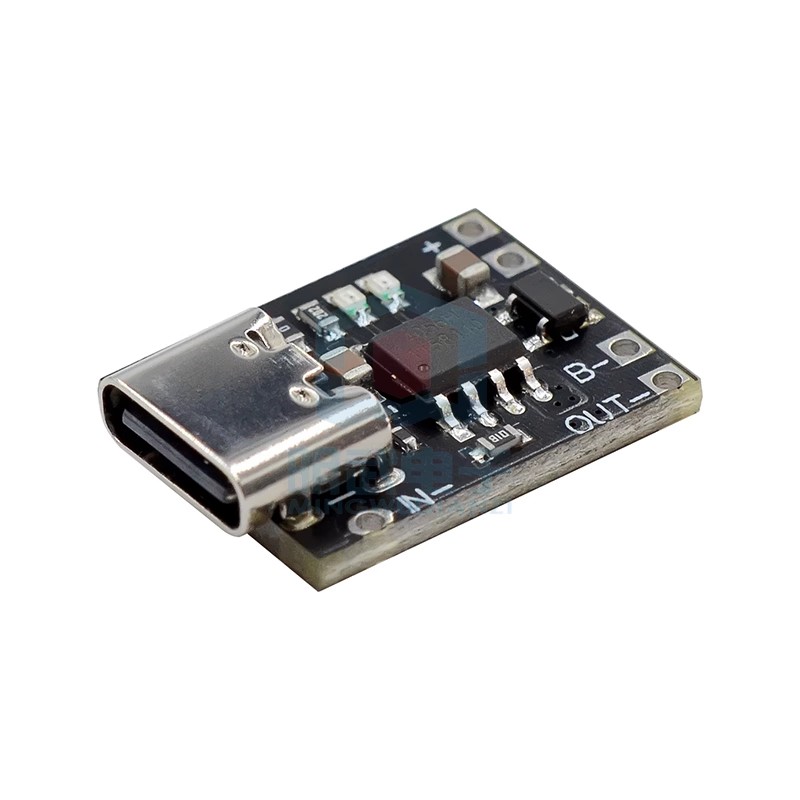

Ultra Small Term Lithium Battery Charging Board
Product Characteristics:
Small volume
Supports Type-C interface power supply and is compatible with most PD fast charging heads
1A high current linear charging
With protective board function
Basic Parameters:
Input voltage range: 5-6V
Output voltage: 4.2V
Charging current: 1A
Function Introduction:
When the charging current drops to 100mA after reaching the final float charging voltage, the charging cycle will be automatically terminated.
When the battery voltage drops below 4.05V (roughly corresponding to 80% to 90% of the battery capacity), the charging cycle resumes.
When the battery voltage is below 2.9V, the battery will be pre charged with a current of 100mA.
Equipped with protective plates, overvoltage protection, overvoltage protection, and overcurrent protection. Overdischarge protection value: 2.4V; Overcurrent protection value: 4A.
The first use requires connecting the power supply to activate the protective board.
