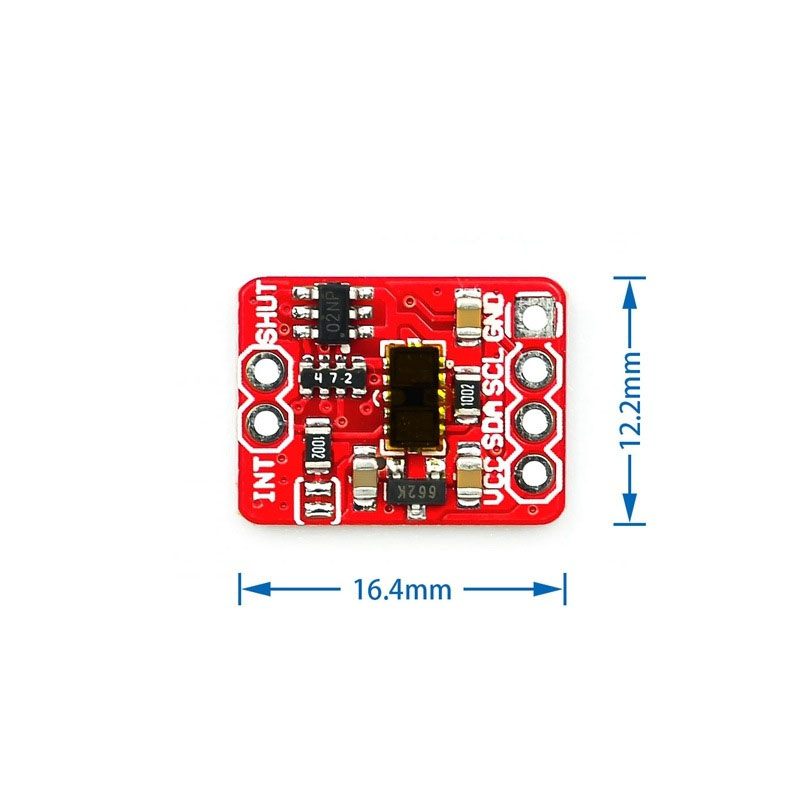

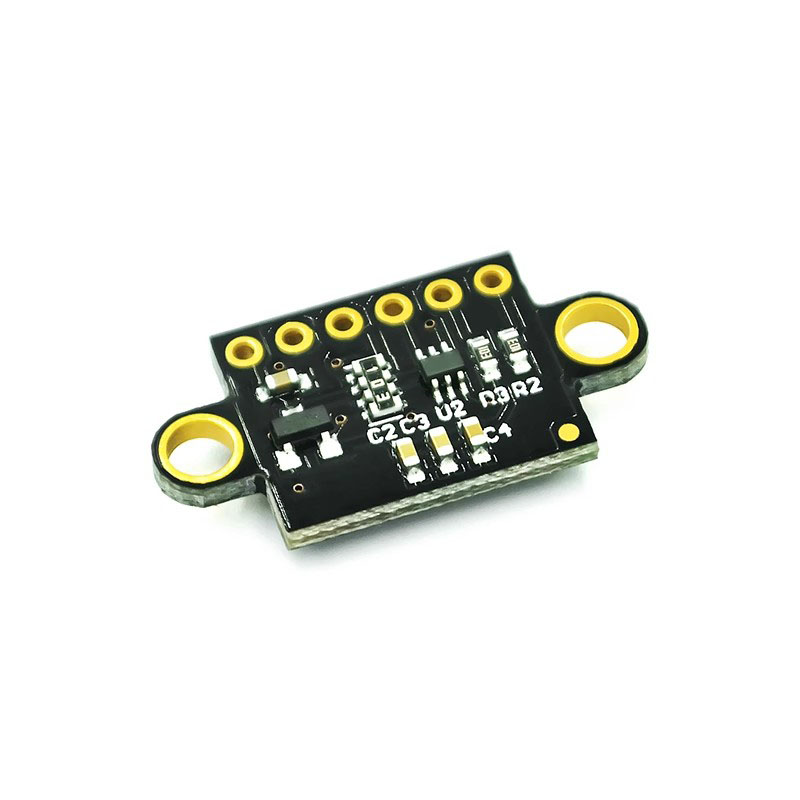

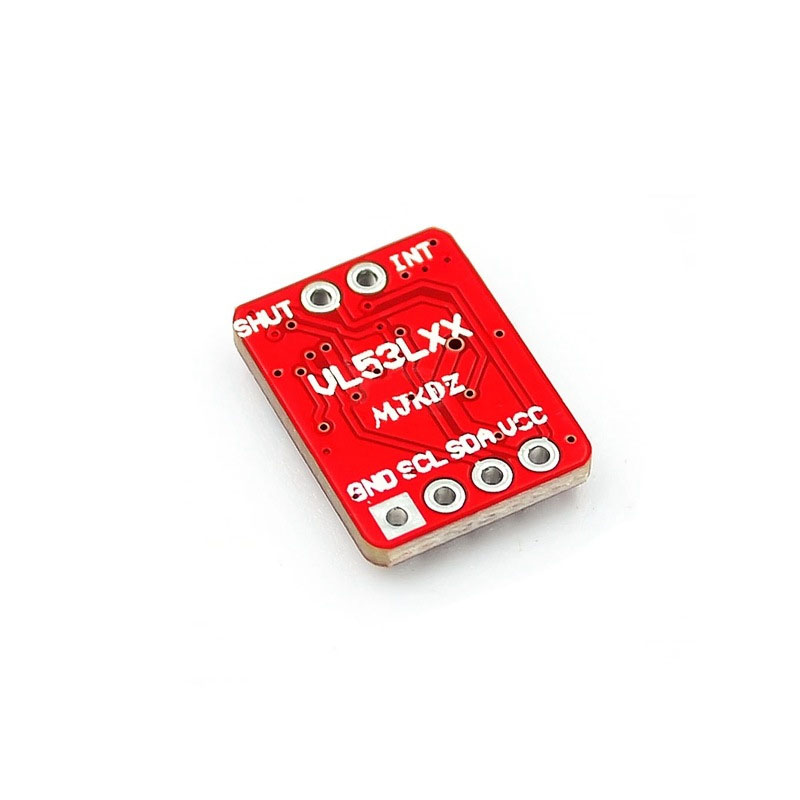

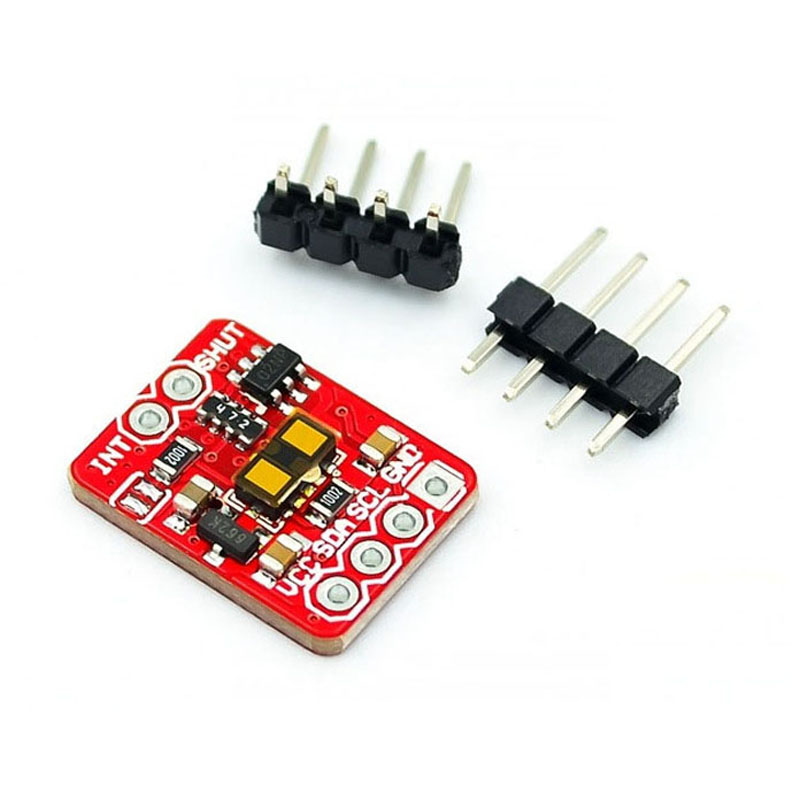

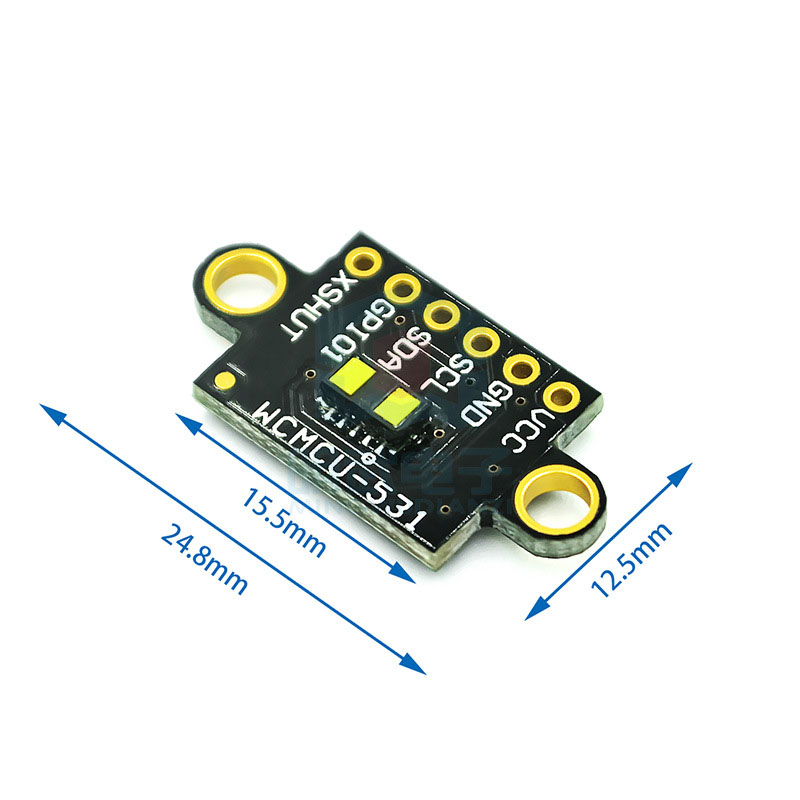

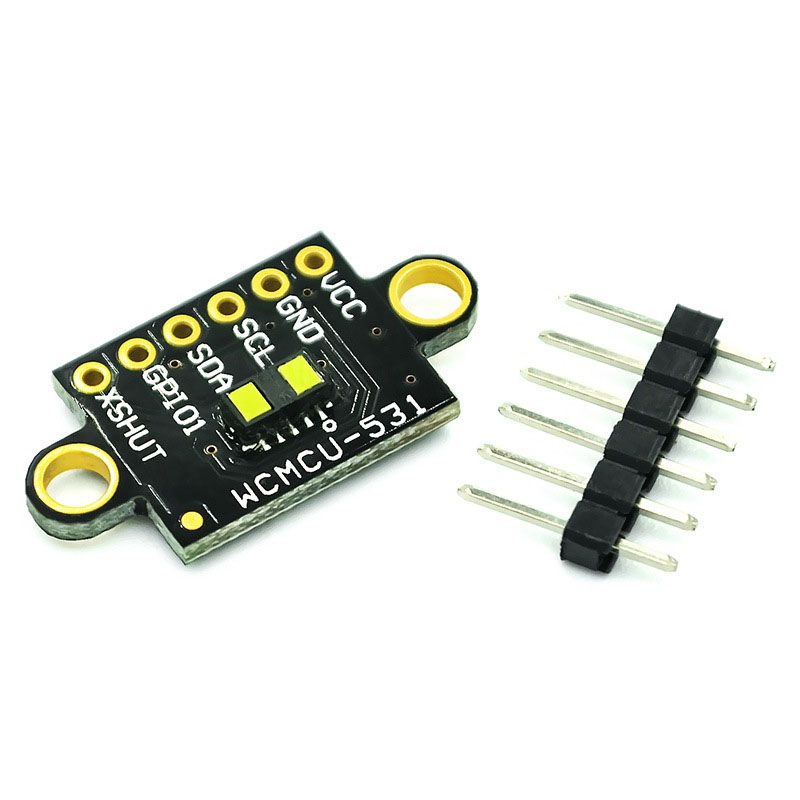

VL53L1X Laser Ranging Sensor Module TOF Time Of Flight Ranging 4m Ranging Black Board Red BoardItem NO.: VL53L1X-4M

US$ 7.57

Model

Quantity: 1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs

Customized Requirements

Quantity: Stock ( 99999990 )

Estimate Shipping Cost

Adding to cart succeed

VL53L1X Laser Ranging Sensor Module TOF Time Of Flight Ranging 4m Ranging Black Board Red Board

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: VL53L1X Laser Ranging Sensor Module TOF Time Of Flight Ranging 4m Ranging Black Board Red Board
- Item NO.: VL53L1X-4M
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: VL53L1X , Laser Ranging Sensor Module , ToF , Time Of Flight Ranging , 4m Ranging
- Creation Time: 2024-04-15
VL53L1X Laser Ranging Sensor Module

Product Information:

VL53L1X is an advanced Time of Flight (ToF) laser ranging sensor. It is a miniature ToF sensor with an accurate measurement range of up to 4 m and a fast measurement frequency of up to 50 Hz. It uses a miniature returnable package, integrates a SPAD receiving array, a 940 nm stealth Class1 laser emitter, physical infrared filters, and optical components, and can achieve ranging performance under various ambient lighting conditions, providing a variety of masking window options. Unlike traditional infrared sensors, the VL53L1X uses STToF technology to measure distance regardless of target color and reflectivity. The size of the ROI can also be programmed on the receiving array, allowing for a reduction in the sensor FoV.

Main Features:

● Fully integrated micro module

● Transmitter: 940 nm stealth laser (Class1)

● SPAD (Single Photon Avalanche Diode) receiving array with integrated lens

● Low power microcontroller running advanced digital firmware

● Pin compatible with VL53L0X range sensor but program incompatible

● Fast and accurate long-distance distance measurement

● Distance measurement up to 400 cm

● Ranging frequencies up to 50 Hz

● Typical Full Field of View (FoV): 27 °

● The programmable area of interest (ROI) size on the receiving array allows for sensor FoV reduction

● Receive programmable ROI positions on the array to provide multi zone operational control of the host

● I2C interface (400 kHz)

● Off and interrupt pins

● Voltage: 3.3-5v

● Communication interface: I2C

● Distance: 4cm-4m
