XH-M548 Bluetooth Dual Channel 120W Digital Power Amplifier Board TPA3116D2 Bluetooth Audio Amplifier BoardItem NO.: XH-M548
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M548 Bluetooth Dual Channel 120W Digital Power Amplifier Board TPA3116D2 Bluetooth Audio Amplifier Board
- Item NO.: XH-M548
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Digital Power Amplifier Board , TPA3116D2 , 120W , XH-M548 , Bluetooth Dual Channel , Bluetooth Audio Amplifier Board
- Creation Time: 2024-05-03

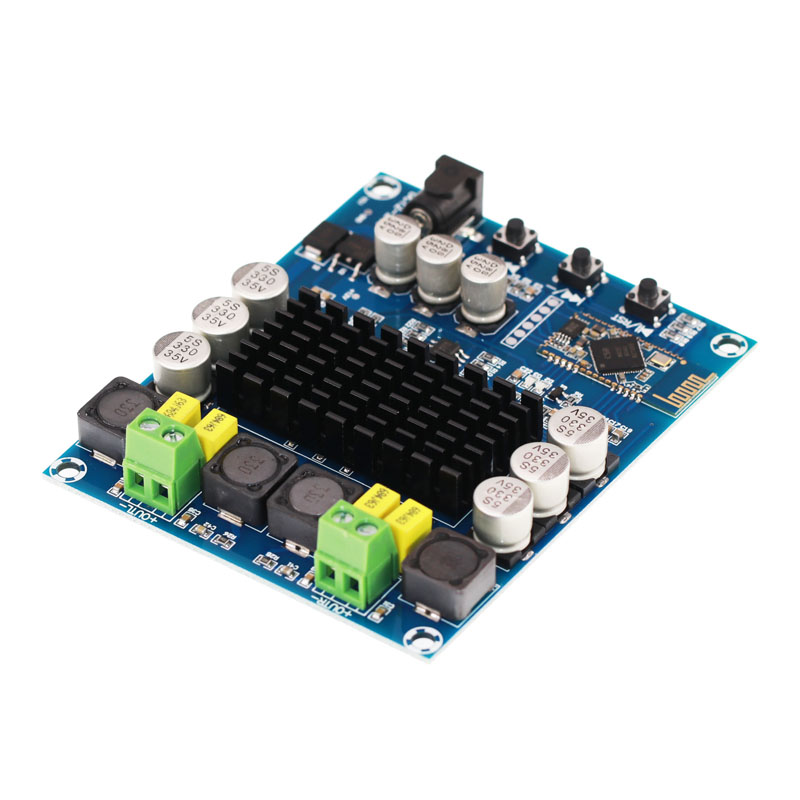

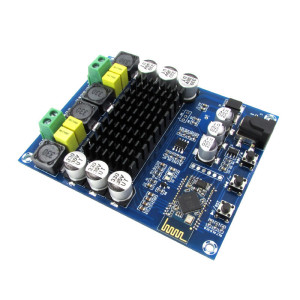

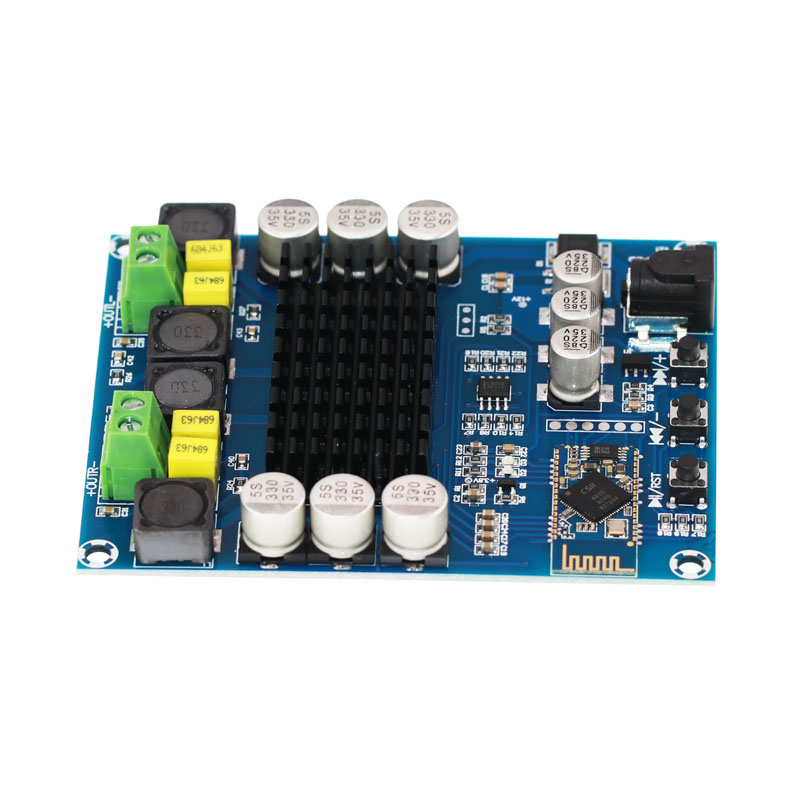

XH-M548 Digital Power Amplifier Board
Product Information:
XH-M548 adopts digital power amplifier chip TPA3116D2 for university class D operation, and integrates Bluetooth module of CSR 8635.4 version. The power amplifier chip has both power efficiency of more than 90% and low idle loss characteristics. Advanced modulation system configuration and advanced modulation system configuration reduce the number of components, and integrate self-protection circuits, including overvoltage, undervoltage, overheating, DC detection and short circuit protection, and heat resistant enhanced packaging, Bluetooth transmission is about 10 meters long. The use environment is not necessary, and the transmission distance is different. If DIY speakers are used, it is better not to use materials that can shield the Bluetooth signal.
Product Parameters:
● Product name: XH-M548 digital power amplifier board
● Chip type: TDA3116D2
● Bluetooth module: BTM836/CSR8635 (version 4.0)
● Transmission distance: maximum 10m (no interference block)

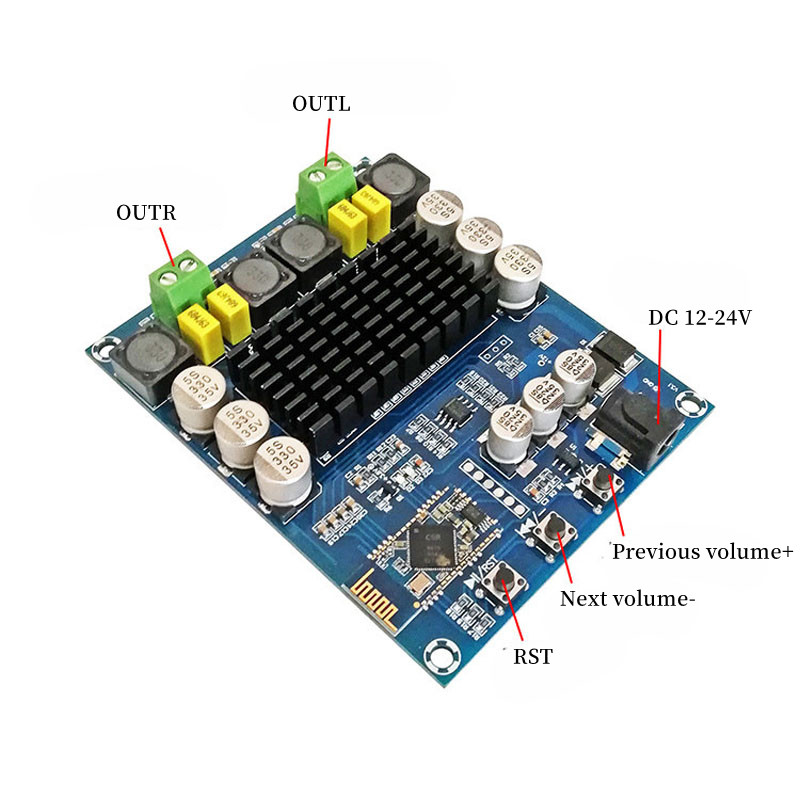

● Supply voltage: DC12-24v
● Supply current: more than 3A
● Output power: 120W * 2
● Number of channels: dual channels (high and low pitch adjustment)

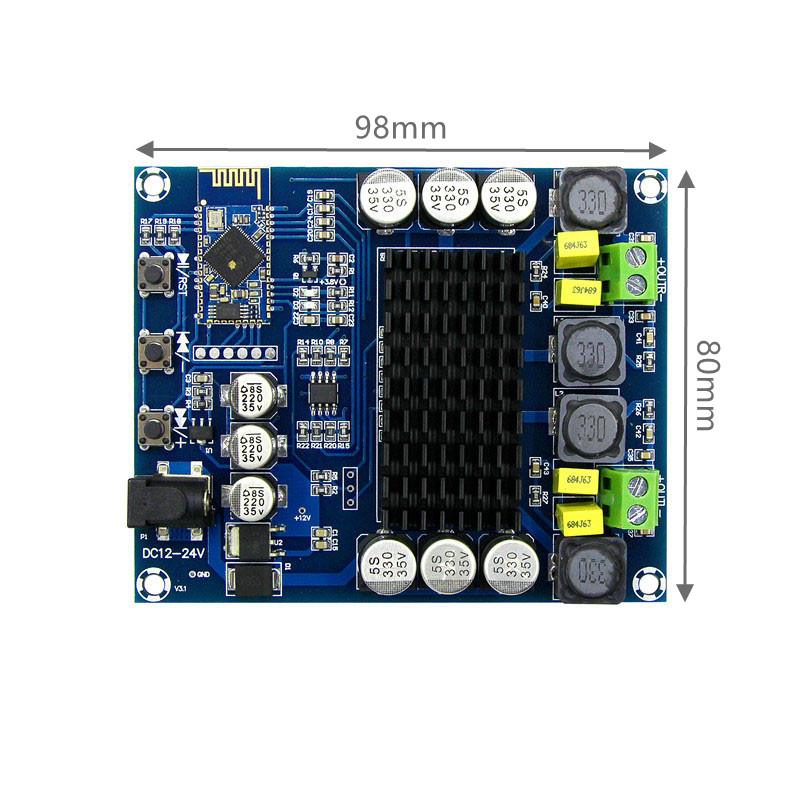

● Product size: 98 * 80 * 18MM
