- Product Name: XL6009 Step-up Module DC-DC Power Module Output Adjustable Super LM2577 4A Current
- Item NO.: MK01716
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 4A , Power Module , DC-DC , XL6009 , Step-up Module , Output Adjustable
- Creation Time: 2024-04-10
XL6009 DC-DC Step-up Module Output Adjustable 4A
Product Description:

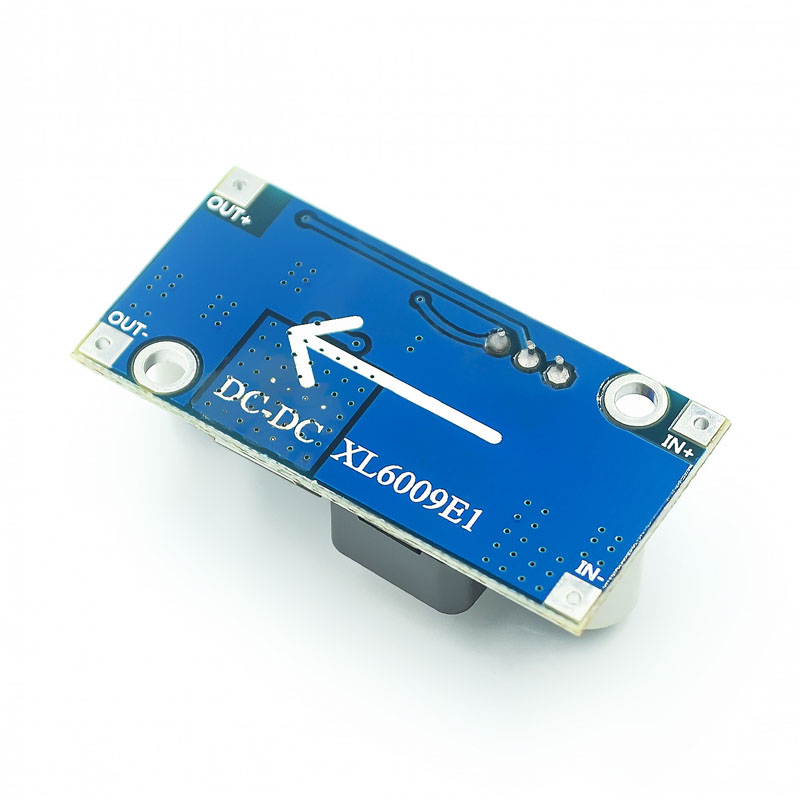

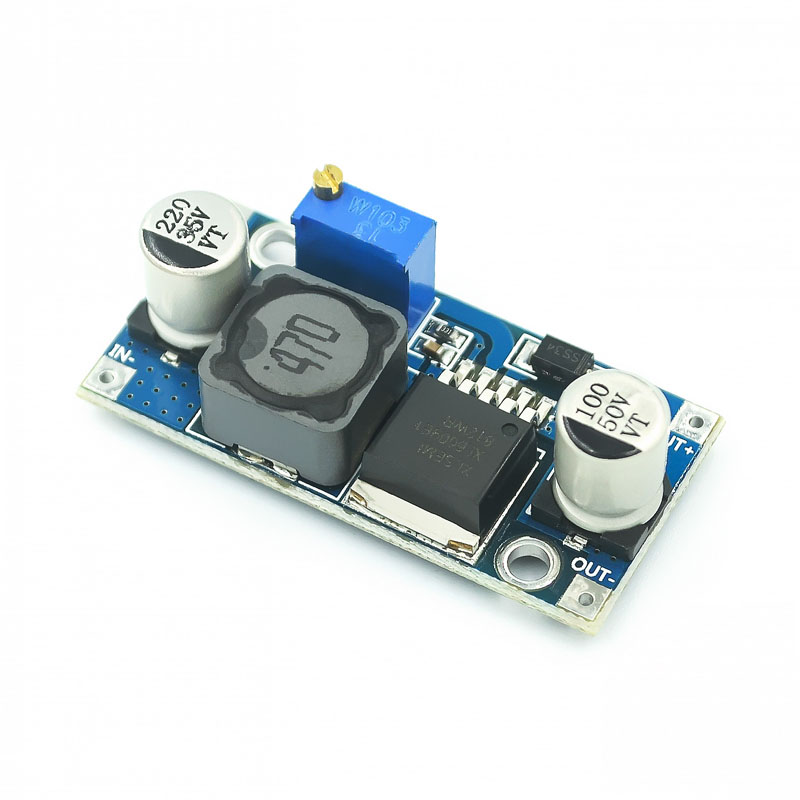

XTW6009 is a high-performance boost (BOOST) module with a 4A switching current. This module uses XL6009E1, a second-generation high-frequency switching technology, as the core chip, with performance far exceeding that of LM2577, the first generation technology. The XL6009 boost module has lower costs and better performance, and the LM2577 module is about to be phased out.
● The ultra wide input voltage is 3V~32V, and the optimal working voltage range is 5~32V;
● Ultra wide output voltage of 5V~35V;
● Built-in 4A high-efficiency MOSFET switch transistor, achieving efficiency up to 94%; (LM2577 current only 3A)
● The ultra-high switching frequency of 400KHz can achieve very good results with a small capacity filter capacitor, with smaller ripple and smaller volume. (LM2577 frequency only 50KHz)
Technical Parameters:
● Model and specification: XTW6009 boost module
● Module nature: Non isolated boost (BOOST)
● Rectification method: asynchronous rectification
● Input range: 3V~32V
● Output range: 5V~35V
● Input current: 4A (maximum), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the no-load current.)
● Conversion efficiency:<94% (the greater the pressure difference, the lower the efficiency)
● Switching frequency: 400KHz
● Output ripple: 50mV (the higher the voltage, the greater the current, and the larger the ripple)
● Load adjustment rate: ± 0.5%
● Voltage adjustment rate: ± 0.5%
● Operating temperature: -40 ℃~+85 ℃

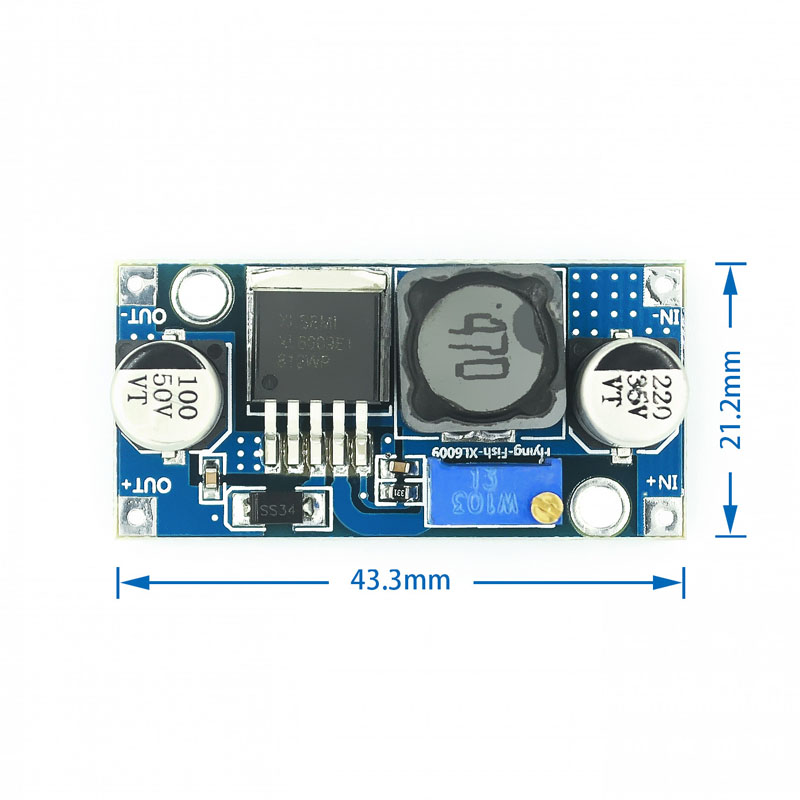

● Outline dimensions: 43mm * 21mm * 14mm (length * width * height)
