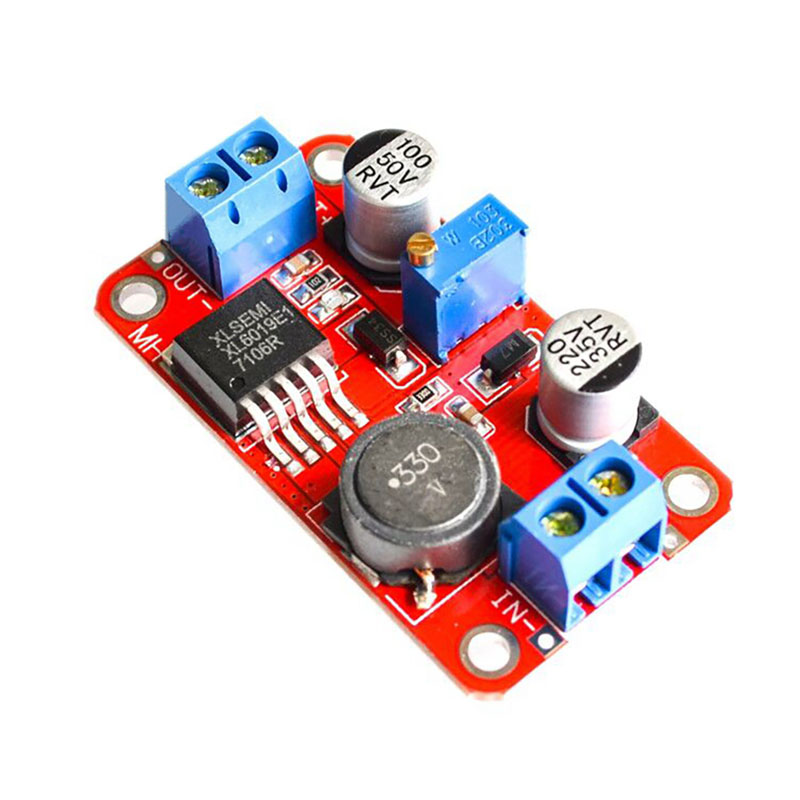

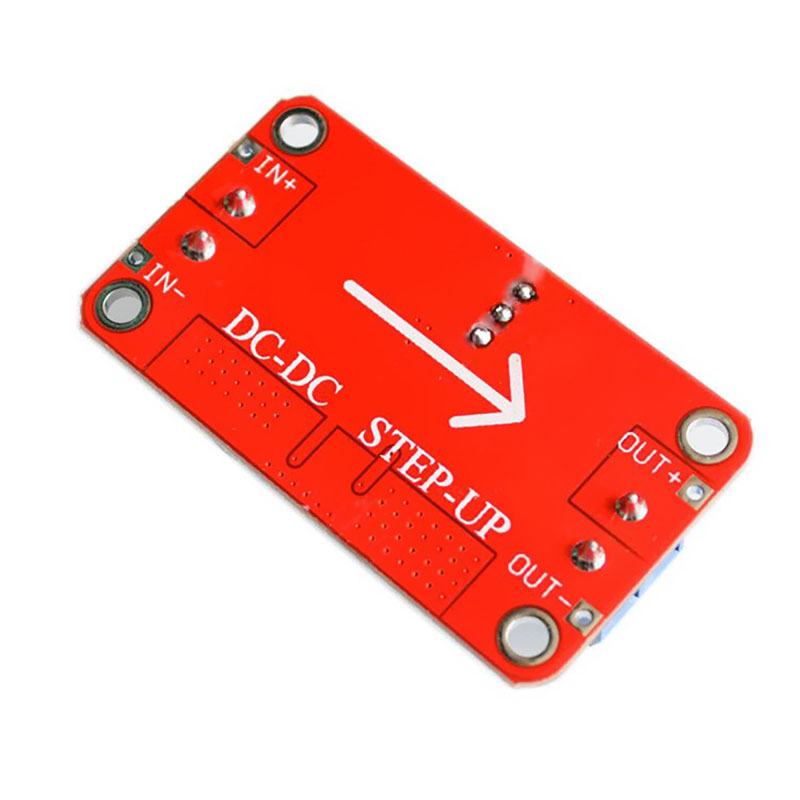

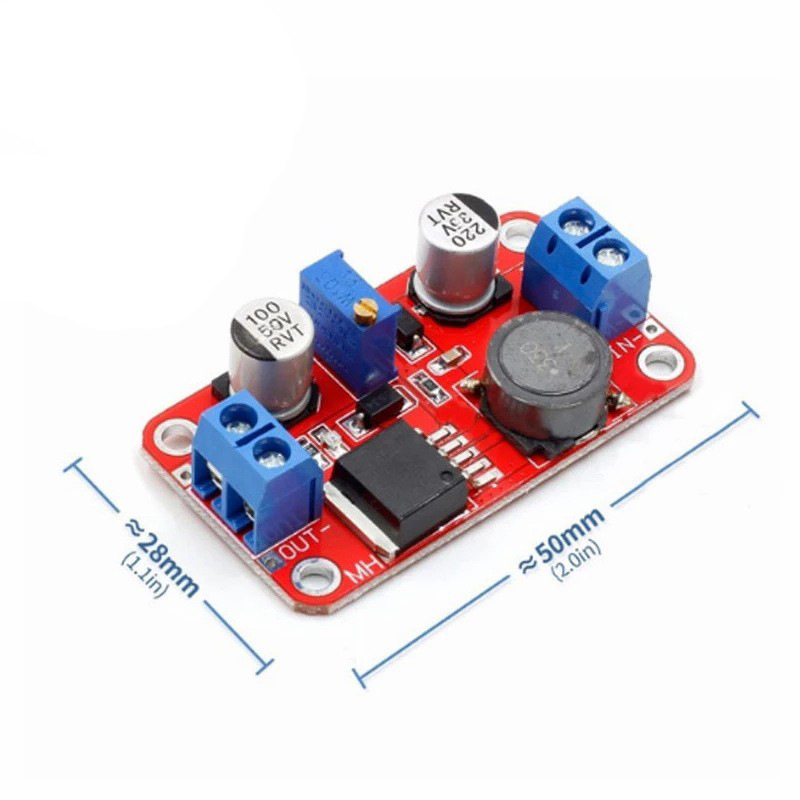

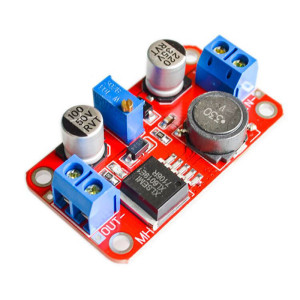

XL6019 DC-DC Adjustable Step-up Power Supply Module 5A Current High Power Super XL6009 LM2577 Upgrade VersionItem NO.: MK00898

XL6019 DC-DC Adjustable Step-up Power Supply Module 5A

Product Parameters:

● Model and specification: XL6019 module

● Module nature: Non isolated boost (BOOST)

● Rectification method: asynchronous rectification

● Input range: Limit value: 3V~40V, recommended value: 3V~35V

● Output range: limit value: 5V~45V, recommended value: 5V~40V (through rotating potentiometer)

● Input current: Limit value: 0-5A, recommended value: 0-3A

● Conversion efficiency: up to 94%

● Switching frequency: 220KHz, second-generation switching power supply technology

● Output ripple: less than 100mV

● Load adjustment rate: ± 0.5%

● Voltage adjustment rate: ± 0.5%

● Operating temperature: Limit value: -40 ℃~+150 ℃, recommended value: -20 ℃~+85 ℃

● Reverse protection: Input 40V anti reverse protection

Product Features:

1. Adopting a conventional BOOST fully integrated constant voltage output scheme, with internal integration of MOSFETs, fewer peripheral devices, and low system cost;

2. Wide voltage range input, with input voltage up to 35V;

3. Adjustable output voltage, up to 40V;

4. Built in over temperature protection and over current protection, a complete set of reliable protection circuits with high reliability;

5. The system conversion efficiency can reach over 90%, making it convenient for thermal design;

6. TO263-5L standard packaging, suitable for boost applications up to 30W.

Module Usage:

1. Connect the power supply (3-35V), the power indicator light is on, and the module is working normally.

2. Adjust the blue potentiometer knob (generally rotate counterclockwise to increase voltage and clockwise to decrease voltage) and use a multimeter to monitor the output voltage until it reaches the required voltage

Precautions:

1. The on-board regulated power supply can adjust the potentiometer just by connecting the input terminal of this module to the power supply, and the output voltage can be adjusted at 5V-30V at will. It is very simple and convenient to supply power for your mobile phone, MP3, MP4, PSP charging and many other devices.

2. It is recommended to use a current of less than 2.5A for long-term work, and add a heat sink (output of over 10W); As it is a boost module, to ensure stable output, please maintain a small 1.5V voltage difference.

3. Power electronic devices. When the device requires 5V-35V power supply and the corresponding voltage power supply is in hand, this module can easily adjust the voltage to the required voltage to solve the problem.

4. System working voltage testing. This module can be used to debug various voltage ranges for testing system working voltage during project development, making it very easy and convenient
