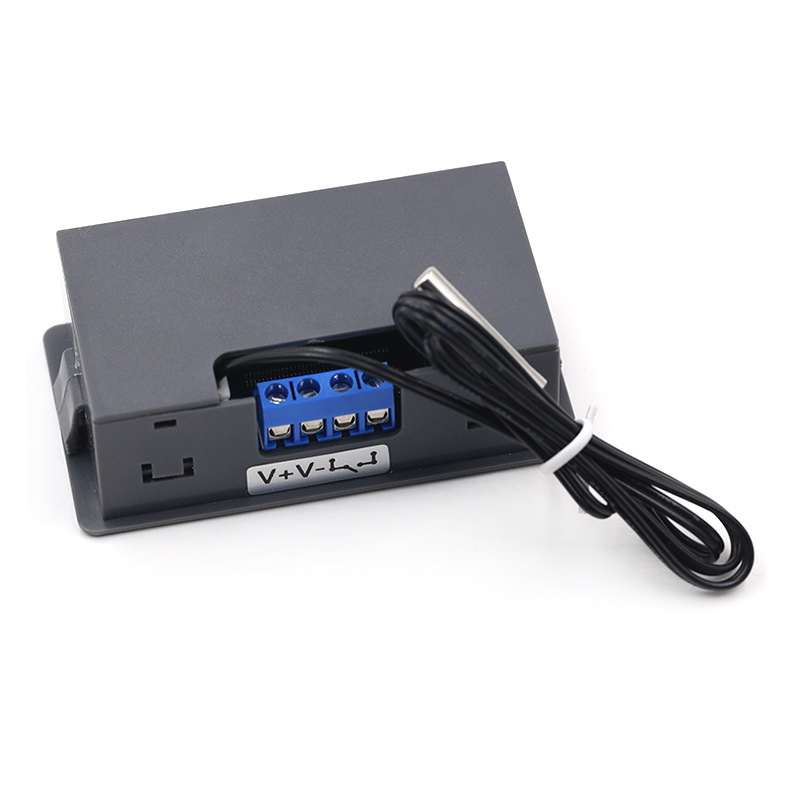

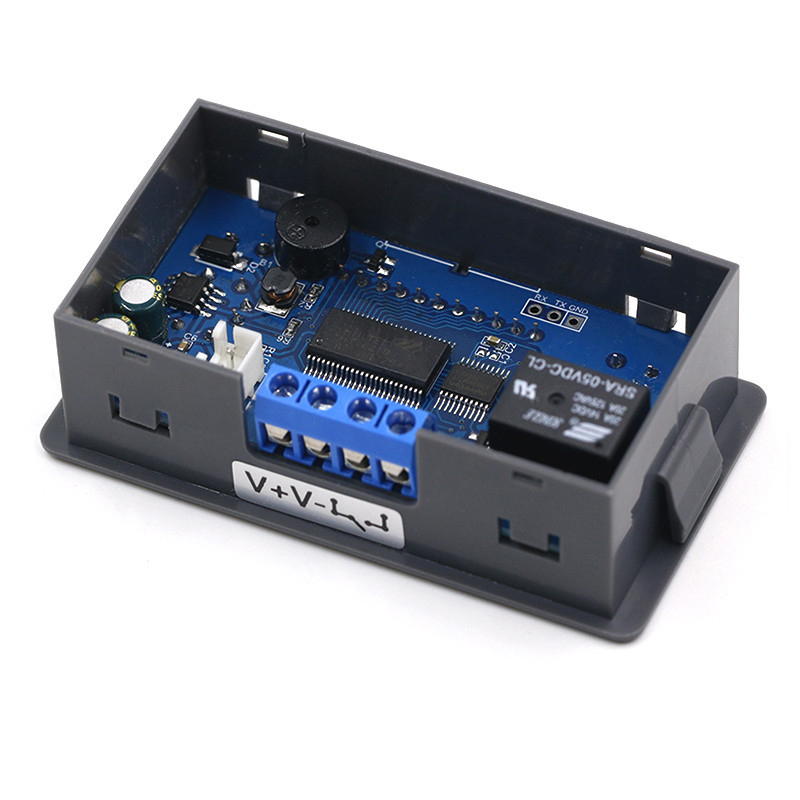

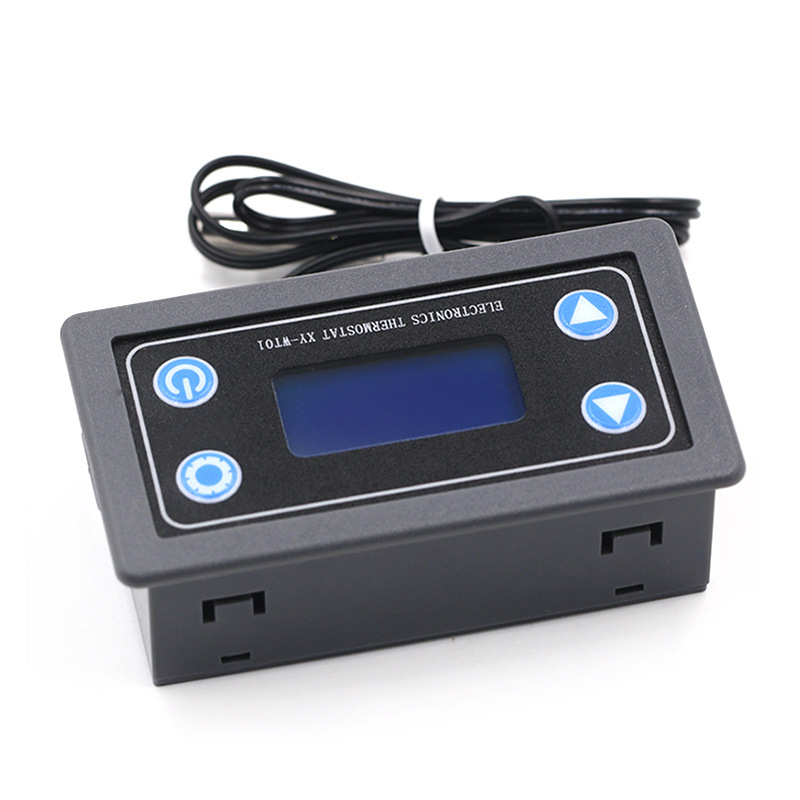

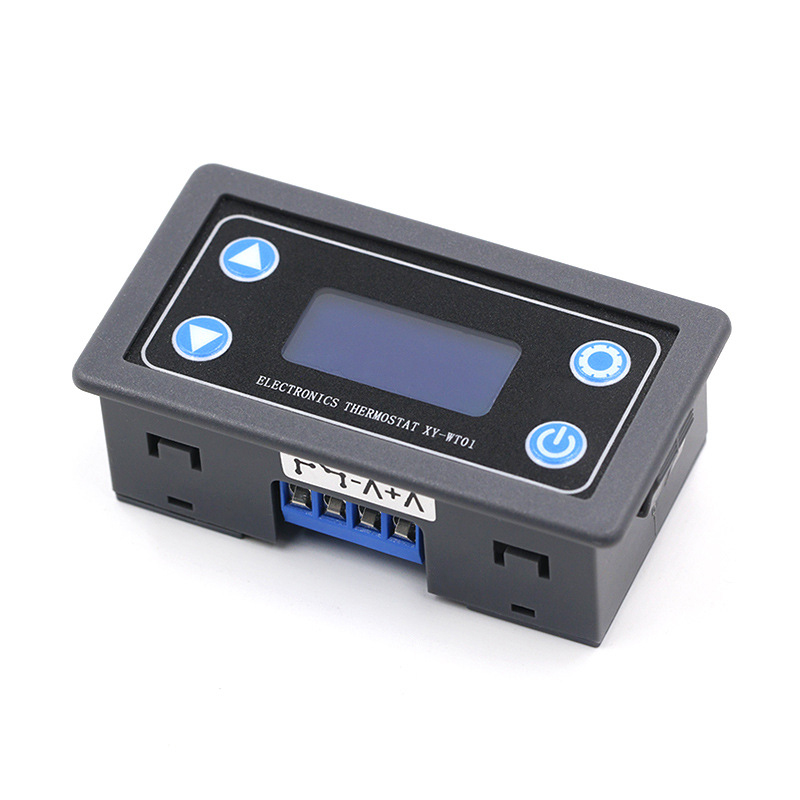

XY-WT01 Digital Temperature Controller Module High Precision Digital Display Refrigeration and HeatingItem NO.: XY-WT01

XY-WT01 Digital Temperature Controller Module

Product Features:

1. Heating mode 'H':

When the detection temperature is ≤ the set temperature - return temperature difference, the relay conducts and the heating equipment starts working;

When the detection temperature is ≥ the set temperature, the relay is disconnected and the heating equipment stops working;

2. Cooling mode 'C':

When the detection temperature is ≥ the set temperature+return temperature, the relay conducts and the refrigeration equipment starts working;

When the detection temperature is ≤ the set temperature, the relay is disconnected and the refrigeration equipment stops working;

3. High temperature alarm function ALA:

When the actual temperature is ≥ the alarm temperature, the system will activate the sound and light alarm, disconnect the relay, and stop the sound and light with any key;

4. Delayed start of OPH:

After completing a normal heating or cooling operation, the system starts timing T. Only when T ≥ OPH can the system proceed with the next round of heating or cooling operation;

5. Temperature correction function OFE (-10.0~10.0 ℃):

If the system works for a long time, there may be deviations. By using this function to correct, the actual temperature=measured temperature+calibration value;

6. Remote parameter reading/setting:

You can set parameters such as start temperature, stop temperature, and temperature correction through UART;

7. Real time temperature reporting:

If the temperature reporting function is enabled, the product will transmit the detected temperature to the terminal through UART at 1 second intervals for easy data collection;

8. Relay Enable (default on):

If the relay is turned off and enabled, the relay remains disconnected;

9. Restore factory settings:

Simultaneously press the STOP and SET keys for more than 3 seconds to restore factory settings;

Working Mode/Setting Temperature/Return Temperature Setting:

1. In the running interface, short press the SET key to enter the quick setting interface;

2. After entering the quick setting interface, switch the parameters to be set (working mode/set temperature/return temperature) by briefly pressing the SET key;

3. Modify parameter values through the UP DOWN key, supporting short/long press;

4. Press and hold SET for more than 3 seconds or for 6 seconds without any button operation, exit the quick setting interface, and save the parameters;

Alarm Temperature/Delay Start Setting/Temperature Correction:

1. On the running interface, press and hold SET for at least 3 seconds to enter the parameter setting interface;

2. After entering the parameter setting interface, switch the parameters to be set by briefly pressing the SET key (alarm temperature/delay start setting/temperature correction);

3. Modify parameter values through the UP DOWN key, supporting short/long press;

4. Press and hold SET for more than 3 seconds or for 6 seconds without any button operation, exit the parameter setting interface, and save the parameters;

How To Turn On The High Temperature Alarm (Default Off):

Enter the parameter setting interface and switch to the alarm parameter ALA interface. Press the STOP key briefly to turn on or off the high temperature alarm function; If the high temperature alarm function is turned off, ALA displays' ---- 'as a reminder;

How To Enable Delayed Start (Default Off):

Enter the parameter setting interface and switch to the alarm parameter OPH interface. Press the STOP key briefly to turn on or off the high temperature alarm function; If the high temperature alarm function is turned off, OPH displays' ---- 'as a reminder;
