XY-WTH1 Temperature and Humidity Control Module Digital Display Word High Precision Dual Output Automatic Temperature and Humidity Control BoardItem NO.: XY-WTH1
-
Customized Requirements
- Quantity
-
-
- Product Name: XY-WTH1 Temperature and Humidity Control Module Digital Display Word High Precision Dual Output Automatic Temperature and Humidity Control Board
- Item NO.: XY-WTH1
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Digital Display , Temperature and Humidity Control Module , Dual Output , Automatic Temperature and Humidity Control Board , XY-WTH1
- Creation Time: 2024-05-10

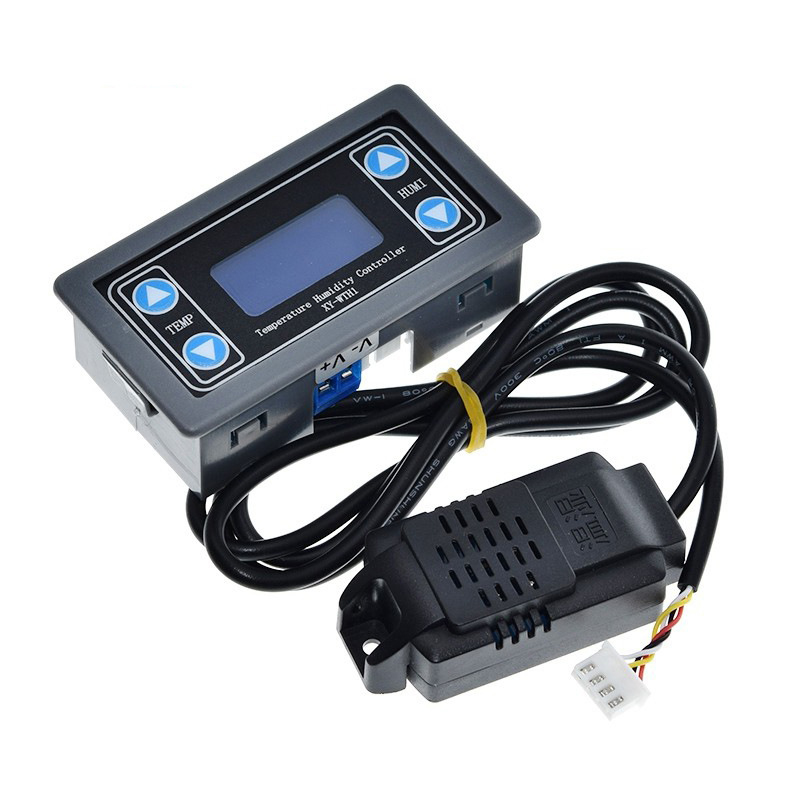

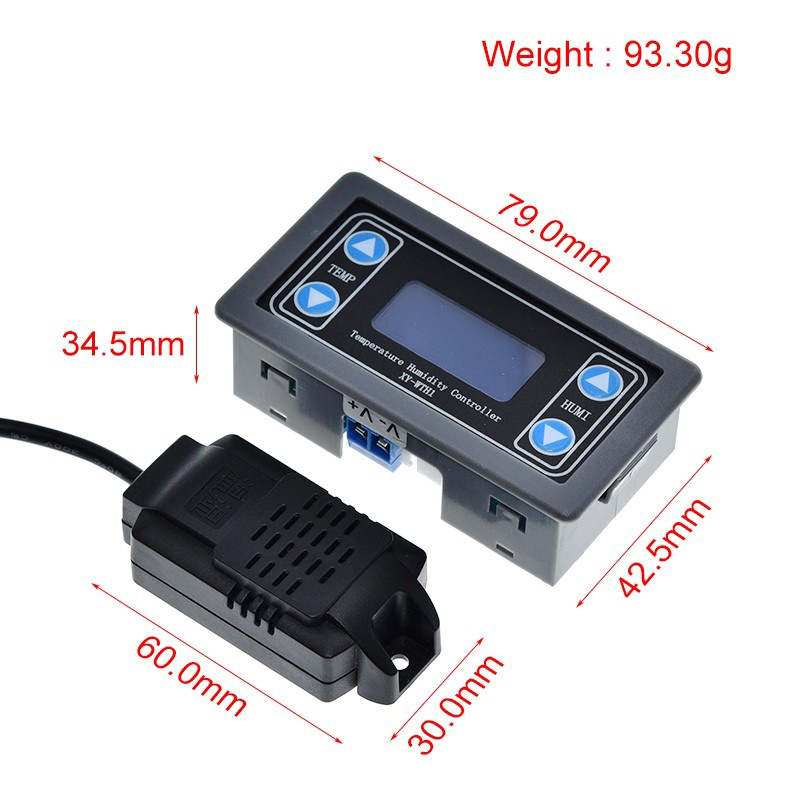

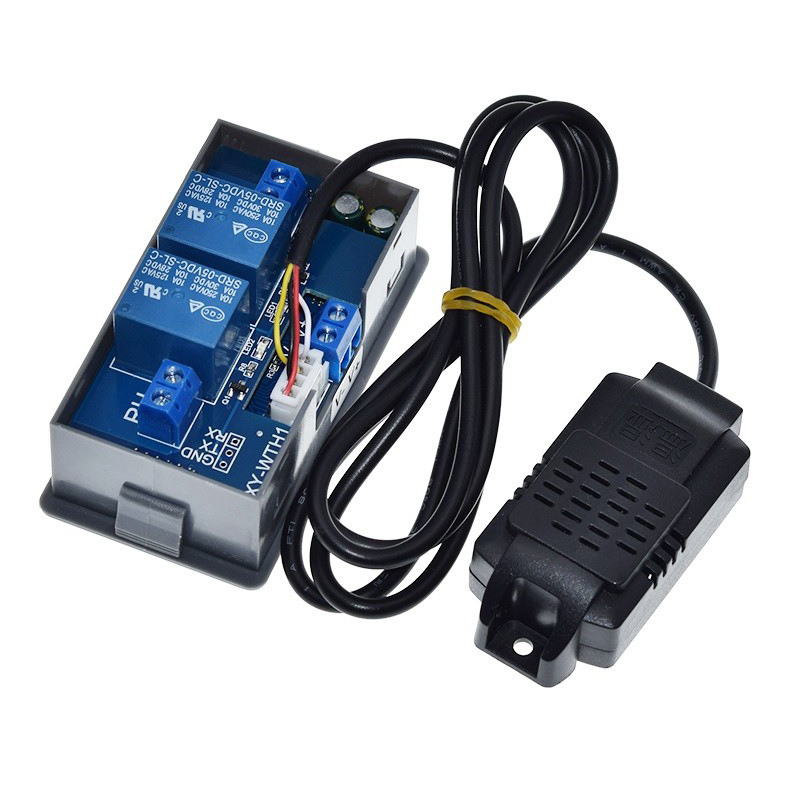

XY-WTH1 Digital Display Temperature And Humidity Control Board
Product Features:
The product functions are mainly classified into two categories: temperature function and humidity function;
The Temperature Function Is As Follows:
1. Automatic recognition of working mode:
The system automatically recognizes the working mode based on the start/stop temperature;
Start temperature>stop temperature, cooling mode 'C'; Start temperature<stop temperature, heating mode 'H';
2. Cooling mode:
When the detection temperature is ≥ the starting temperature, the relay is conductive, the red indicator light is on, and the refrigeration equipment starts working;
When the detection temperature is ≤ the stop temperature, the relay closes, the red indicator light goes out, and the refrigeration equipment stops working;
3. Heating mode:
When the detection temperature is ≤ the starting temperature, the relay conducts, the red indicator light lights up, and the heating equipment starts working;
When the detection temperature is ≥ the stop temperature, the relay closes, the red indicator light goes out, and the heating equipment stops working
4. Temperature correction function OFE (-10.0~10.0 ℃):
If the system works for a long time, there may be deviations. By using this function to correct, the actual temperature=measured temperature+calibration value;
How To Set The Start/Stop Temperature:
1. In the running interface, press and hold the 'TM+' button for more than 3 seconds to enter the startup temperature setting interface. Testing can be done by modifying parameters using the TM+TM - button. After the parameter modification is completed, wait for 6 seconds to automatically exit and save;
2. In the running interface, press and hold the 'TM -' key for more than 3 seconds to enter the stop temperature setting interface. Testing can be done by modifying parameters through the TM+TM - keys. After the parameter modification is completed, wait for 6 seconds to automatically exit and save;
The Humidity Function Is As Follows:
1. Automatic recognition of working mode:
The system automatically recognizes the working mode based on the starting humidity/stopping temperature;
Start humidity>stop humidity, dehumidification mode'd '; Start humidity < stop humidity, humidification mode 'E';
2. Dehumidification mode:
When the detection humidity is ≥ the starting humidity, the relay conducts, the green indicator light lights up, and the dehumidification equipment starts working;
When the detection humidity is ≤ stop humidity, the relay is closed, the green indicator light is off, and the dehumidification equipment stops working;
3. Humidification mode:
When the detection humidity is less than or equal to the starting humidity, the relay is connected, the green indicator light is on, and the humidification equipment starts working;
When the detection humidity is ≥ stop humidity, the relay is closed, the green indicator light is off, and the humidification equipment stops working
4. Humidity correction function RH (-10.0~10.0 ℃):
If the system works for a long time, there may be deviations. By using this function to correct, the actual humidity=measured humidity+calibration value;
How To Set Start/Stop Humidity:
1. In the running interface, press and hold the 'RH+' button for more than 3 seconds to enter the startup humidity setting interface. During testing, parameters can be modified using the RH+RH - button. After the parameter modification is completed, wait for 6 seconds to automatically exit and save;
2. In the running interface, press and hold the 'RH -' key for more than 3 seconds to enter the stop humidity setting interface. Testing can be done by modifying parameters using the RH+RH - keys. After the parameter modification is completed, wait for 6 seconds to automatically exit and save;
Operation Interface Description:

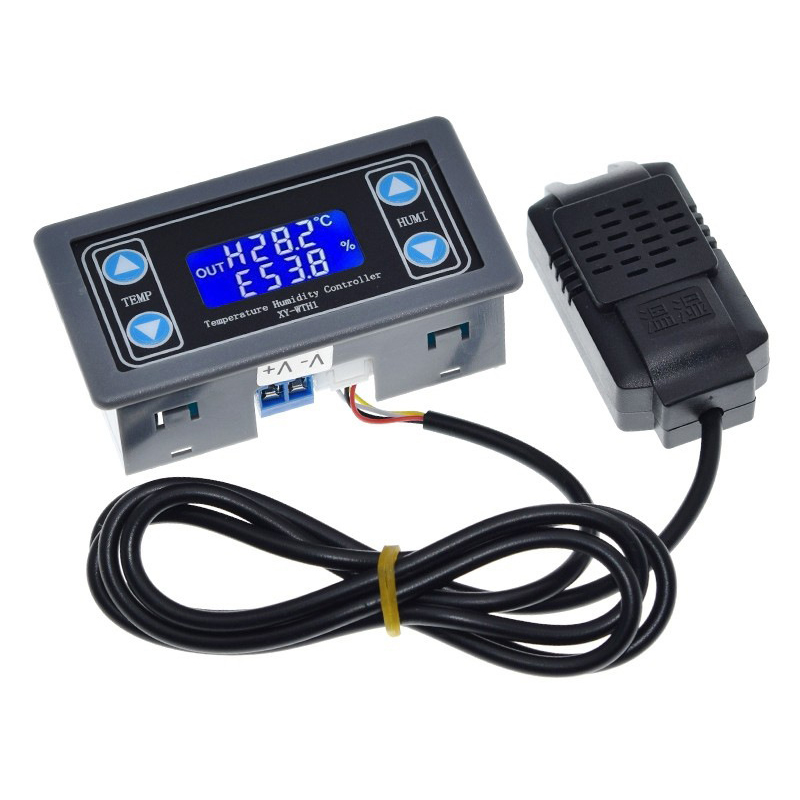

Working mode display. After setting parameters such as starting temperature/humidity and stopping temperature/humidity, the current mode ("H/C", "E/d") will be displayed synchronously in front of temperature/humidity;
If any relay is connected, "OUT" will be displayed in the upper left corner of the interface. If the temperature relay is connected, the temperature working mode "H/C" will flash to indicate a reminder; If the humidity relay is connected, the humidity working mode "E/d" will flash to indicate a reminder;
Other Functions:
1. Remote parameter reading/setting:
Parameters such as starting temperature/humidity, stopping temperature/humidity, and temperature/humidity correction can be set through UART;
2. Real time reporting of temperature/humidity:
If the temperature/humidity reporting function is enabled, the product will detect the temperature/humidity and relay status at 1 second intervals, and transmit them to the terminal through UART for easy data collection;
3. Relay Enable (default on):
If the relay is turned off and enabled, the relay remains disconnected;
How To Modify The Correction Value Of Temperature/Humidity:
1. In the running interface, double-click the 'TM+' button to enter the correction value setting interface; Display the type of correction value in the downlink, and display the specific value in the uplink; (OFE: Temperature correction value RH: Humidity correction value)
2. At this point, press the 'TM -' key briefly to switch between the parameters to be modified, and use the RH+RH - keys to modify the specific values; Support long and short press;
3. After the parameter modification is completed, double-click the 'TM+' button to exit the correction value setting interface and save the data;
How To Turn On/Off The Relay Enable Switch:
In the operation interface, short press the 'TM -' button to turn on or off the temperature relay enable (on: open OFF: close). After returning to the operation interface, if the temperature relay is in the closed state, the temperature symbol '℃' will flash to indicate a reminder.
In the operation interface, short press the 'RH -' button to turn on or off the humidity relay enable (on: open OFF: close). After returning to the operation interface, if the humidity relay is in the off state, the humidity symbol '%' will flash to indicate a reminder.
