ZY SHT20 Temperature and Humidity Sensor Digital Measurement Module I2C Communication 3-5V Power SupplyItem NO.: ZY SHT20
-
Customized Requirements
- Quantity
-
-
- Product Name: ZY SHT20 Temperature and Humidity Sensor Digital Measurement Module I2C Communication 3-5V Power Supply
- Item NO.: ZY SHT20
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Temperature And Humidity Sensor , ZY SHT20 , Digital Measurement Module
- Creation Time: 2024-05-10

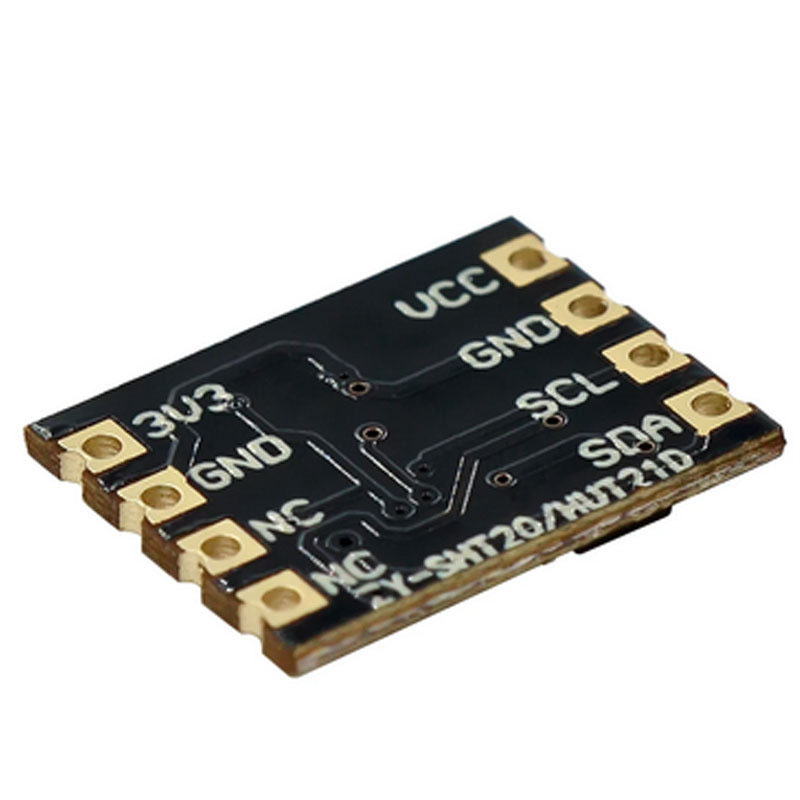

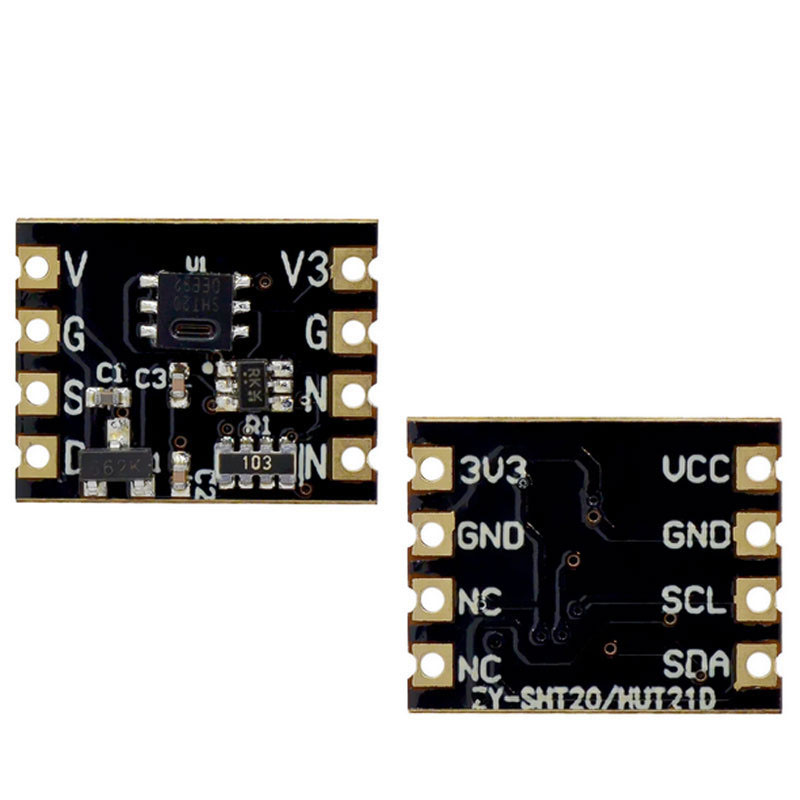

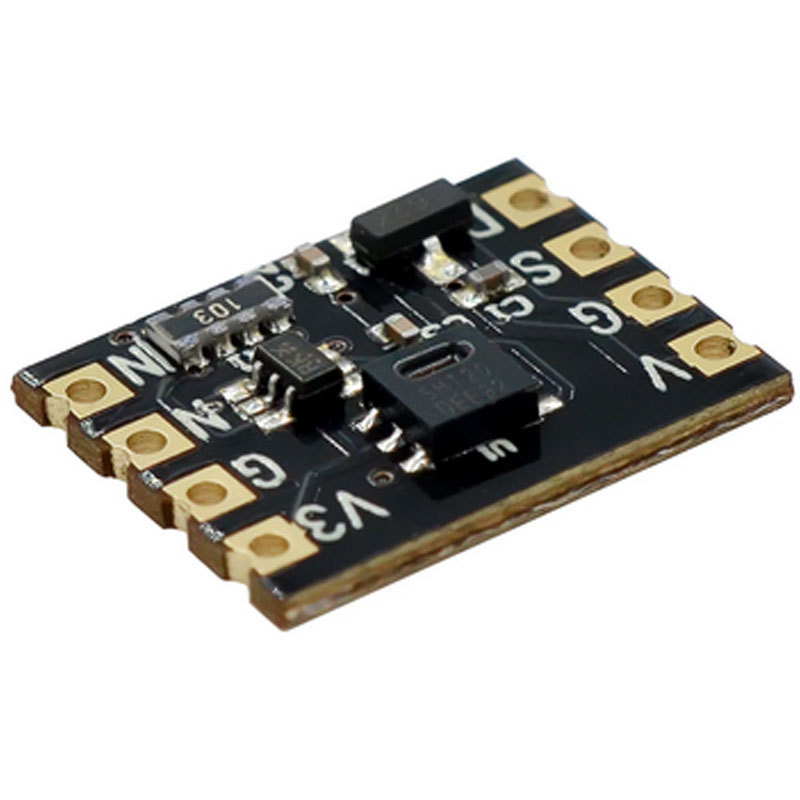

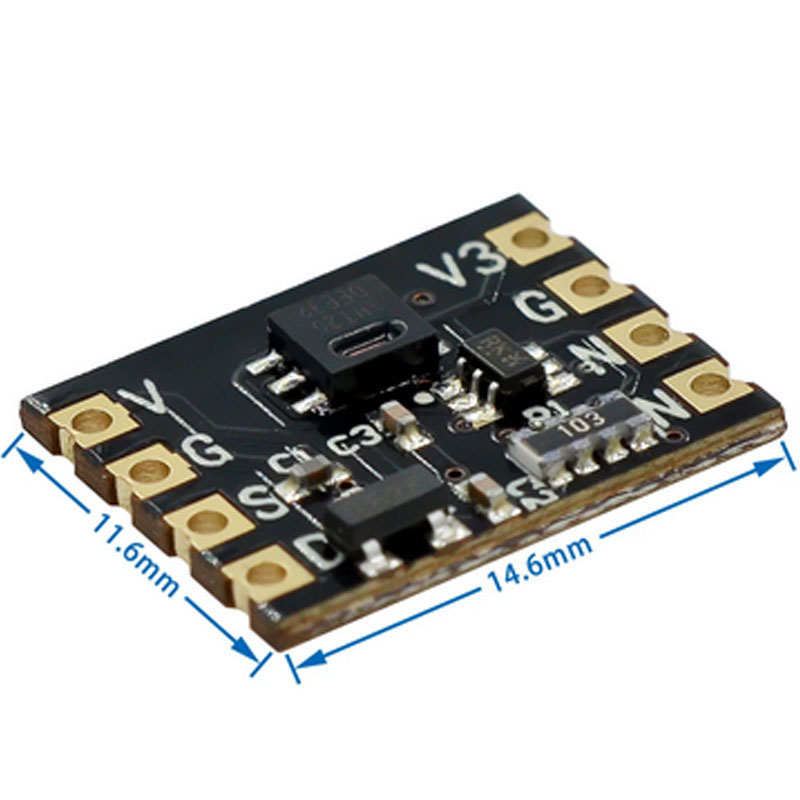

ZY SHT20 Temperature and Humidity Sensor
Product Introduction:
ZY-SHT20 temperature and humidity sensor module is a module based on SHT20 chip, which integrates peripheral LDO, level conversion and I2C pull-up resistor, and expands a gold plated pin hole stamp hole with a double row spacing of 2.54mm, which is convenient for users to weld and expand, and can also be directly pasted into users' products. The module uses I2C communication, and supports wide working voltage. Wrapped in woven tape.
Product Parameters:
● Working voltage: 2.5V~5.5V
● Temperature measurement range: -40~120 ℃
● Temperature accuracy: ± 0.3 ℃
● Humidity measurement range: 0-100% RH
● Humidity accuracy: ± 3% RH
