ZK-5KX Programmable CNC Adjustable Voltage Regulation Constant Voltage and Current Solar Charging 36V/80WItem NO.: ZK-5KX

ZK-5KX Programmable CNC Adjustable Voltage Regulation

Product highlights:

1. LCD can display input/output voltage, output current/output power/output capacity/output time;

2. CNC adjustment, fast, can increase or decrease voltage, output voltage can be adjusted freely from 0.6-36V, and current limit can be adjusted freely from 0-5A;

3. Input end anti reverse connection protection, reverse connection will not burn out;

4. Output end anti backflow, no need to add an additional anti backflow tube when charging the battery;

5. Module can be set to default on/off;

6. Multiple software protection mechanisms and adjustable protection thresholds. When the working parameters of the module exceed the protection threshold, the output will be automatically turned off.

7. Small output ripple, with π - type filtering;

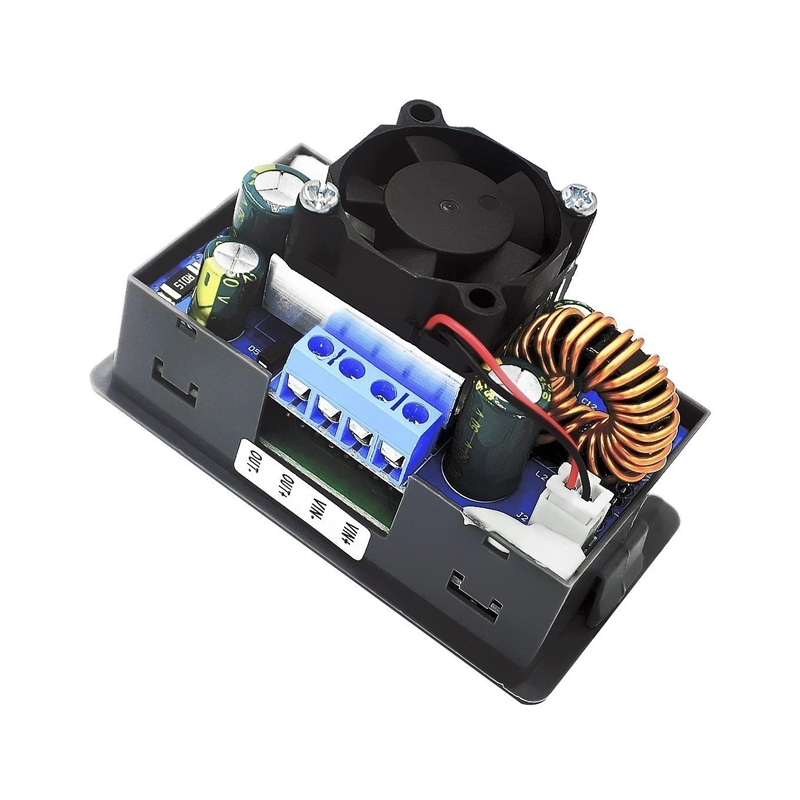

8. Thickened heat sink, two-way ventilation, better heat dissipation effect.

9. Intelligent temperature controlled fan, automatic start stop. When the temperature exceeds 50 degrees or the current exceeds 1A, the fan will automatically start.

Product parameters:

● Input voltage: 6.0-36V

● Output voltage: 0.6-36V

● Output current: Maximum 5A

● Output power: 80W

● Voltage display resolution: 0.01V

● Current display resolution: 0.001A

● Conversion efficiency: around 88%

● Soft start: Yes (there is a possibility of failure when starting modules with high power and load)

● Protection mechanism:

Input anti reverse connection;

Output anti backflow;

Input undervoltage protection (5.8-36V adjustable, default 5.8V)

Output overvoltage protection (0.6-36V adjustable, default 36V)

Output overcurrent protection (0-5A adjustable, default 5A)

Output Overpower Protection (0-80W adjustable, default 80W)

Over temperature protection (adjustable from 80 to 110 ℃, default to 110 ℃)

Time out protection (adjustable from 0 to 100h, default off)

Overcapacity protection (adjustable from 0 to 60Ah, default off)

● Operating frequency: 120KHZ

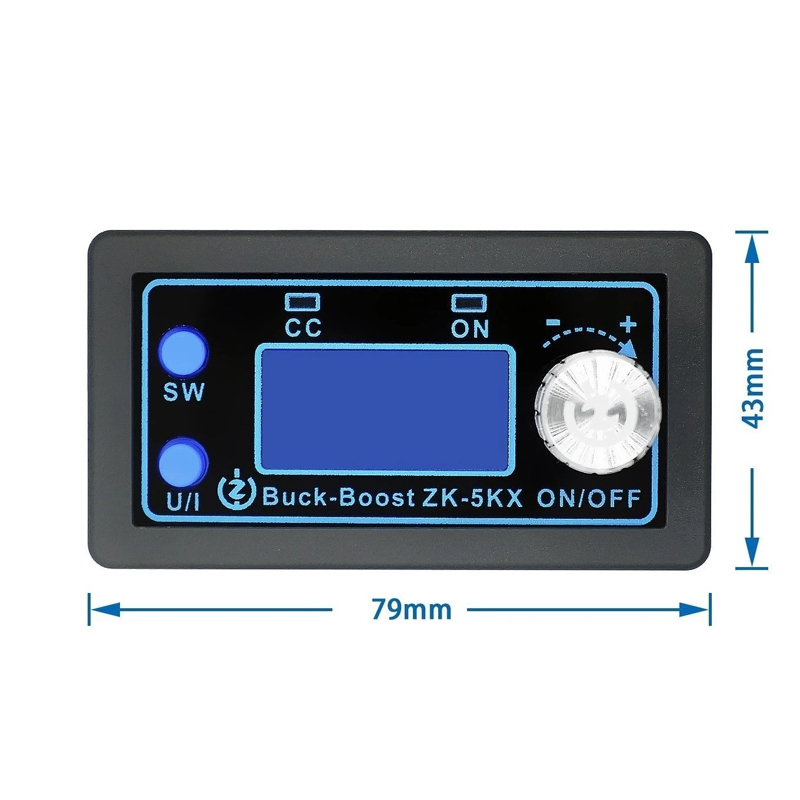

● Dimensions: length * width * height 79mm * 43mm * 48mm

● Weight: 95g
