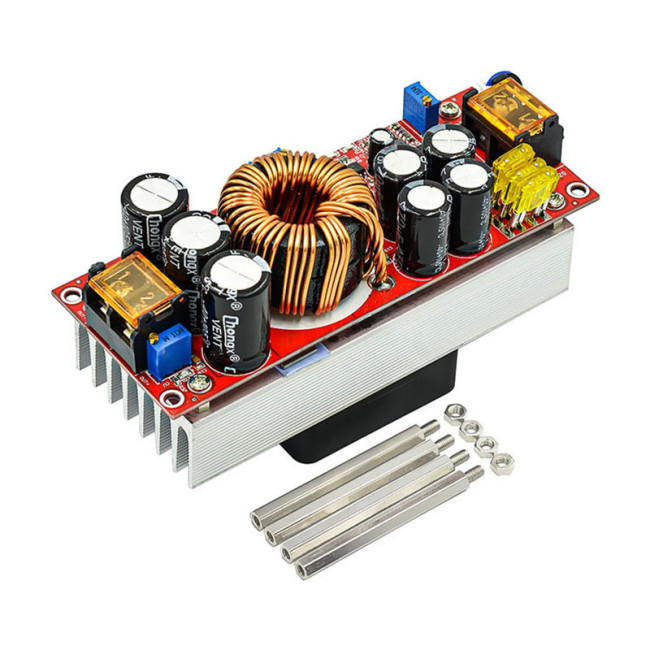

1500W DC-DC Boost Constant Voltage Constant Current Adjustable Power Module 12-60V Boost 12-90VItem NO.: DC1500W

1500W DC-DC Boost Module

Module parameters:

Module model: SZ-BT07CCCV-S

Module Name: 1500W Boost Constant Current Module

Module nature: Non isolated boost module (BOOST)

Input voltage: DC10-60V

Input current: 10-30V input voltage, high current 30A, 31-60V input voltage, high current 25A

Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the higher the static current will increase)

Output voltage: 12-90V continuously adjustable. 12-90V fixed output (for batch customers)

Output current: 20A MAX If it exceeds 15A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)

Constant current range: 0.8-20A (+/-0.3A)

Input anti reverse connection: Yes (150A power MOS anti reverse)

Low battery protection: with (8-50V adjustable) self recovery type

Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 150KHz

Conversion efficiency: 92% -97% (efficiency is related to input and output voltage, current, and voltage difference, with low voltage difference and high efficiency)

Input overcurrent protection: Yes (if the input exceeds 35A, automatic protection will be provided, and the power supply will not be boosted)

Short circuit protection: With (input 30A fuse) dual short circuit protection, it is safer to use.

Input reverse protection: With (150A power MOSFET anti reverse. Can be reversed for a long time)

Installation method: 4 3mm copper pillars

Wiring method: Wiring terminals (please use high current pure copper wire)

Output power:=input voltage * 30A, for example: input 12V * 30A=360W, the maximum power output when input 12V is 360W

Input voltage * 30A, for example: Input 24V * 30A=720W, that is, when inputting 24V, the high power is 720W

Power Description: Due to the high input current of 30A at 10-30V and 25A at 31-60V of this power supply, the output power is related to the input voltage. The higher the input voltage, the greater the power. (Input voltage * input current equals the overall power) For example, the input 12V * 30A power is 360W. The input 24V * 30A power is 720W. When the input voltage is 36V, the input current is 25A, and the high power of the power supply is 900W

Product features:

1. Using wing shaped heat dissipation has a very good heat dissipation effect and a larger output power (the power can reach around 1800W when 48V input is added with a fan).

2. A temperature controlled fan, combined with a liquid supported fan, achieves a very good balance between noise and heat dissipation. When the load is light, the fan does not rotate. When the load is heavy and the temperature reaches around 60 degrees, the fan automatically turns on. It can effectively reduce noise and extend lifespan.

3. The insulation board of the main power tube is made of aluminum oxide, and its thermal conductivity is 10 times that of ordinary insulation pads.

4. Using 100V 210A TO-247 large package power transistor, with large power margin and good dynamic response.

5. Double large-sized iron silicon aluminum magnetic rings, using four 1.2-purity copper enameled wires in parallel, with low heat generation and high efficiency.

6. New design with a conversion efficiency of up to 98.1% (details can be found in the efficiency conversion curve in the data manual below).

7. Brand 3296W multi turn potentiometer with high adjustment accuracy and small drift.

8. Kang copper wire output current sampling, constant current stable with small temperature drift.

9. The undervoltage protection is adjustable, which can effectively protect various batteries and can also be used for solar cells.

10. Equipped with constant current function, it can be used for boosting the voltage of electric scooters, charging batteries, and so on.

11. Input three 20A fuses in parallel to protect against the risk of accidental short circuits in the output.

12. Three indicator lights: undervoltage, overcurrent, power indicator, and clear working status at a glance.

13. Both input and output use high-frequency capacitors, with low output ripple, low heat generation, and long lifespan.

14. MLCC ceramic capacitors have been added to the input and output, resulting in a significant reduction in output ripple, which is approximately 100 millivolts at 48V to 72V 4A.
