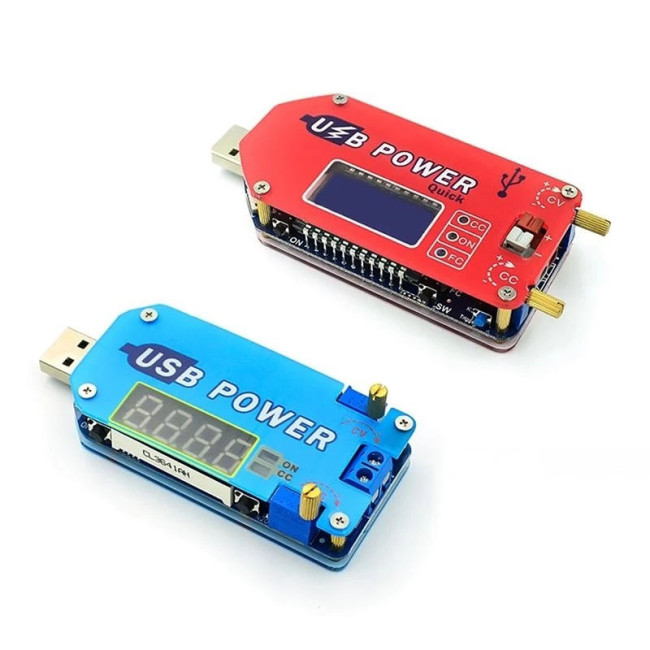

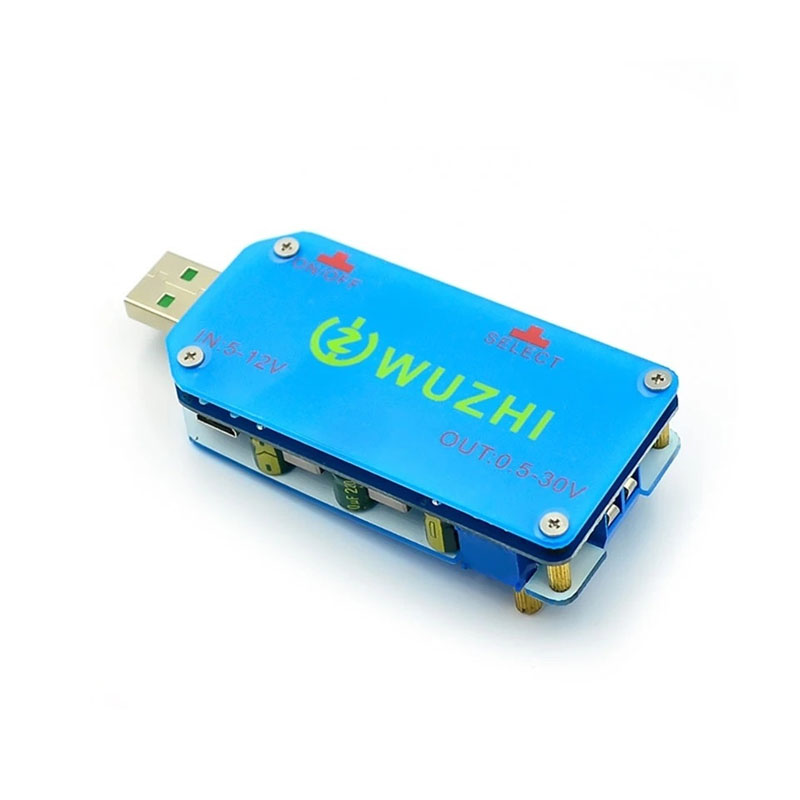

15W USB Adjustable Voltage Regulator Power Supply Charging Module 5V to 3.3V9V12V24V Router DP2/DP3AItem NO.: MK01163

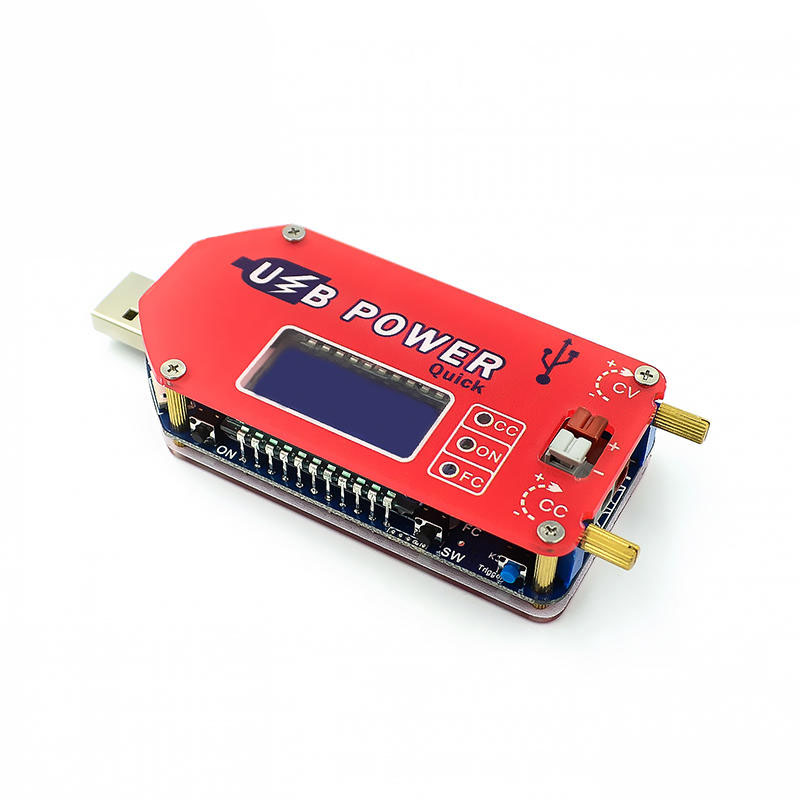

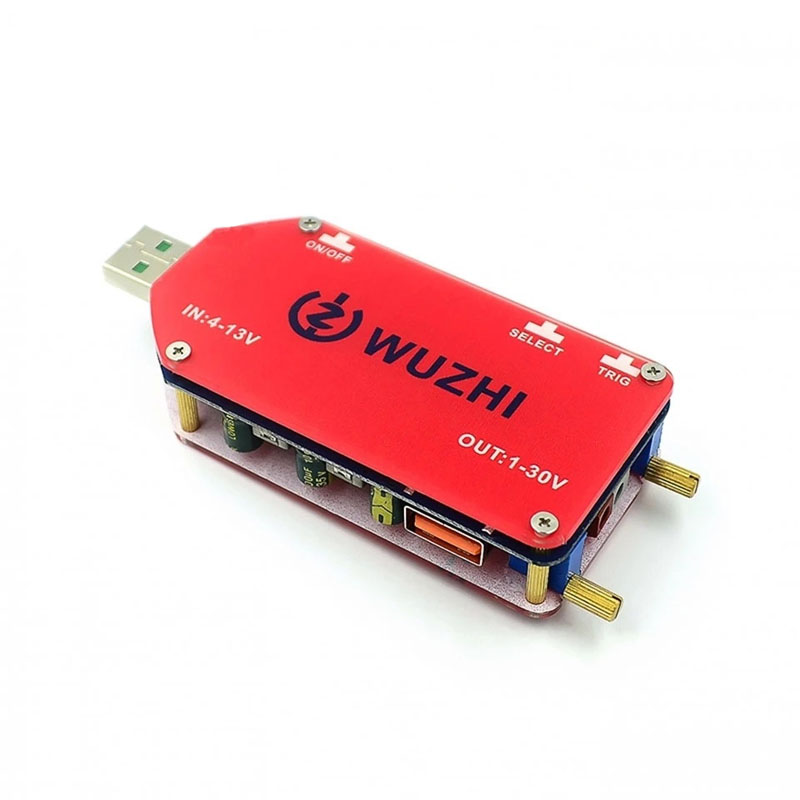

15W USB Adjustable Power Module DP2/DP3A

Application:

High and low power fan governors, USB adjustable desktop small power supply, USB adjustable charging wire, router power backup for power outage prevention, Tmall mobile power base (paired with a power bank), USB adjustable voltage cable, and when combined with a power bank, it can be used as a variable power supply for various mobile purposes, making it very practical.

Using a 5V charging adapter for power supply, the module can only output 15W with an input of 4A or more (considering the voltage drop on the USB line and module conversion efficiency). Ordinary 5V adapters are difficult to achieve, so the module has added a fast charging deception function, which can trick the adapter into outputting high voltage or high current. Pay attention to choosing a charger or power bank that supports the fast charging protocol in order to successfully deceive this product!!!

The Use Of Fast Charging Scams:

1. Press and hold the TRIG button for more than 2 seconds and release it to enter the fast charging protocol selection interface. The LCD screen will display the protocol name.

2. Short press the TRIG key to select QC2.0, QC3.0, AFC, FCP, SCP, AUTO, or OFF. Short press of the ON/OFF or SELECT button can trigger the protocol. If triggered successfully, it will display OK and the FC blue light will be on. Otherwise, it will display Err and the FC blue light will be off.

3. Press and hold the TRIG button for more than 2 seconds to exit the fast charging protocol interface. This protocol will be triggered every time the device is turned on in the future.

4. If you don't know which protocol the charger supports, you can choose AUTO mode, and the module will automatically select deception; If you do not want to use the deception function, you can choose the OFF mode.

Product Highlights:

1. LCD display of input voltage, output voltage, current, power, and capacity statistics, with voltage resolution of 0.01V and current resolution of 0.001A

2. Equipped with USB female output for easy connection to USB interface devices such as USB fans

3. Screw free quick wiring terminal, press type wiring and unplugging, no need to screw, convenient and fast.

4. When setting the current limit value (constant current), there is no need for a short circuit or a multimeter, and the current limit value can be directly displayed

5. Equipped with intelligent fast charging scam to solve the problem of insufficient power supply to the USB input port. Supports mainstream fast charging protocols, QC2.0 3.0, FCP SCP AFC, and can also choose not to deceive or automatically select deception mode.

6. High power 15W, 2A current, suitable for fan speed regulation, desktop power supply, adjustable charger, router power supply, etc.

7. Adjust the output voltage arbitrarily, limit the current to 0-2A (wide input 4-13V, wide output 1-30V, with short circuit protection, short circuit without burning)

8. As a USB charging cable, it can adjust the charging voltage and large charging current at will (with any voltage, constant current, anti backflow, meeting the charging needs of most batteries)

9. Multiple protection (short circuit, overcurrent, over temperature, over power, overvoltage protection, charging anti backflow protection)

Product Parameters:

1. Input voltage: 4-13V (USB male, MicroUSB, TYEPE-C three input interfaces)

2. Output voltage: 1-30V (fast wiring terminal output, USB female output, note that the two are directly connected, carefully check the output voltage before inserting the USB device!)

3. Output current: 0-2A (In constant voltage mode, the output current is adaptive according to the load size and not adjustable. If you set the limit current to 1A, then when the load current is greater than 1A, it will automatically enter constant current mode, with a large output of 1A)

4. Output power: less than 15W (when the output power is greater than 15W, the output will be automatically turned off and OPP will be displayed. After reducing the load power, press the ON/OFF button to solve the problem). When the input current is too large, it may not be able to work for a long time above 10W due to temperature protection.

5. Voltage display: Resolution of 0.01V, factory accuracy of about ± 0.1V, no reserved customer calibration.

6. Current display: Resolution of 0.001A, range of 0-2.2A, factory accuracy of ± 0.0, no reservation for customer self calibration.

7. Power display: 0.00W-15.0W

8. Temperature protection: When the temperature of the power component is higher than 100 ℃, enter OTP protection. After reducing the load power, press the ON/OFF button to solve the problem (long-term operation with a power of less than 10W generally does not enter OT protection. When the input current is greater than 3A, long-term operation may enter over temperature protection, which means there is no 15W. It is recommended to use an adapter with fast charging function)

9. Working current: about 30mA

10. Charging anti backflow: Yes, it can be directly connected to the battery for charging without the need for additional two tubes

11. Short circuit protection: Yes

12. Weight: 67g (net weight of product 44g, packaging box 23g)
