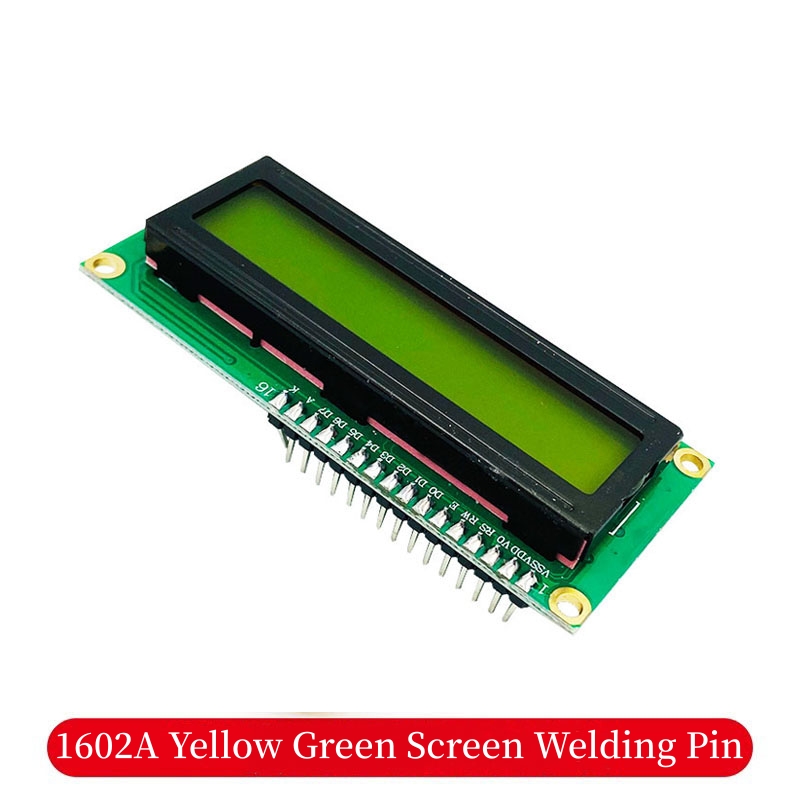

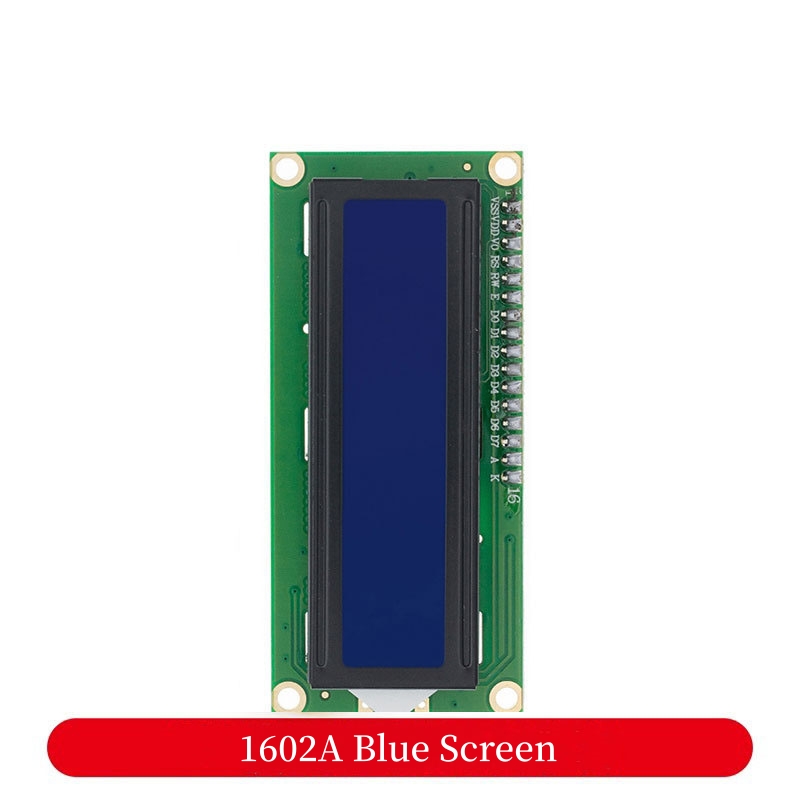

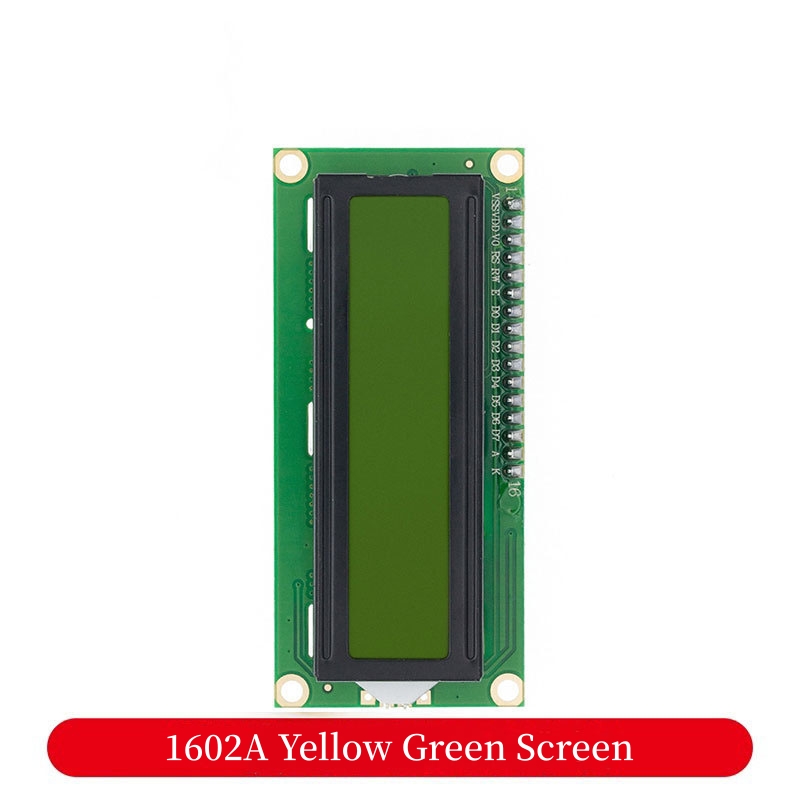

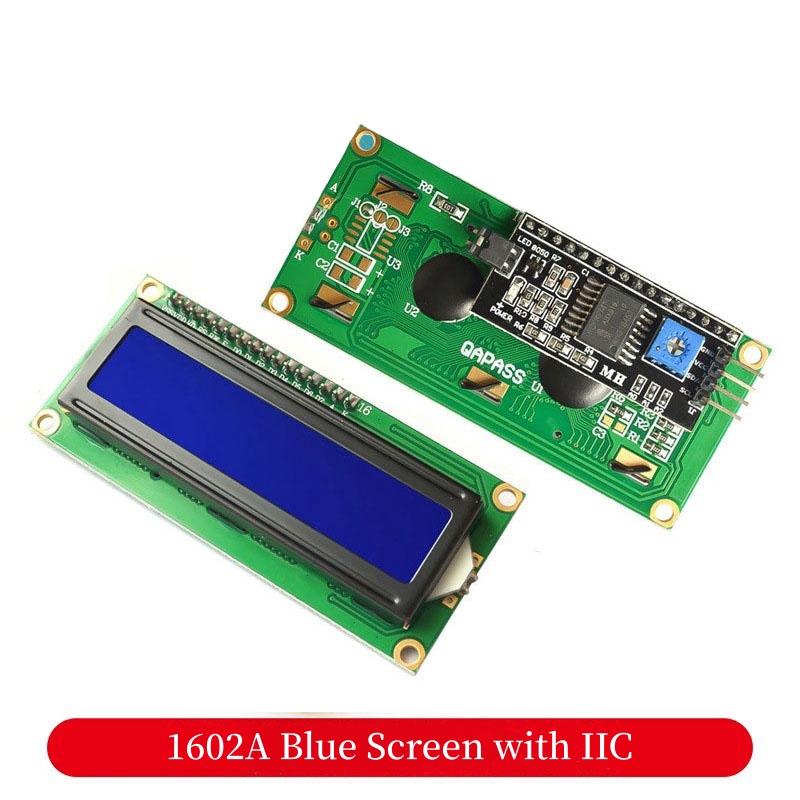

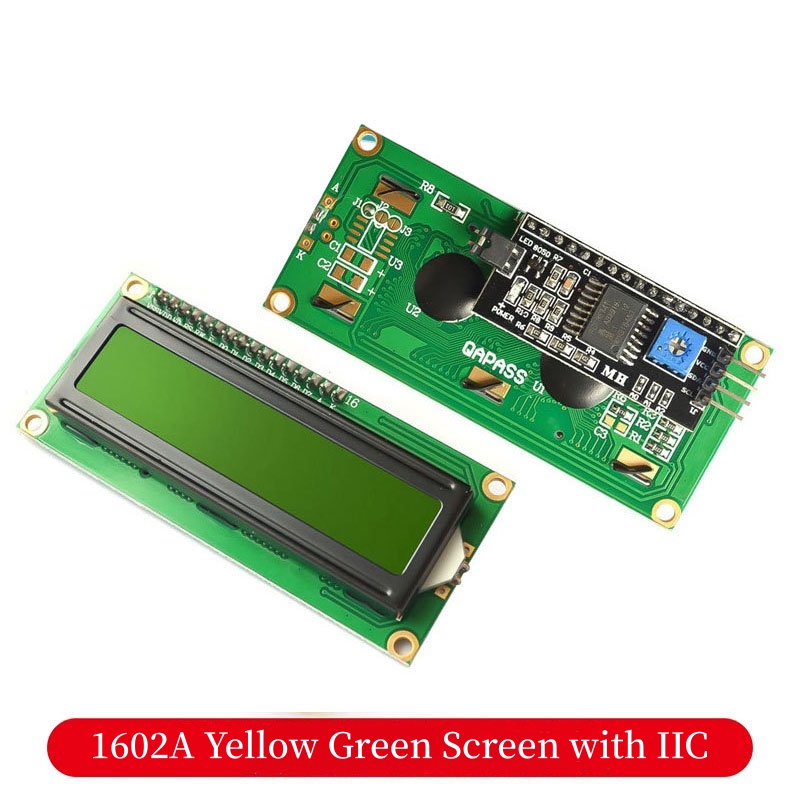

LCD Display Screen 1602A Module 5V White Font With Backlight IICI2C Blue Screen Yellow Green Screen 16*2 Welding Pin ArrangementItem NO.: LCD 1602A
-
Customized Requirements
- Quantity
-
-
- Product Name: LCD Display Screen 1602A Module 5V White Font With Backlight IICI2C Blue Screen Yellow Green Screen 16*2 Welding Pin Arrangement
- Item NO.: LCD 1602A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Display Module
- Tag: 5V , LCD , Display Screen , 1602A , IICI2C
- Creation Time: 2024-03-27

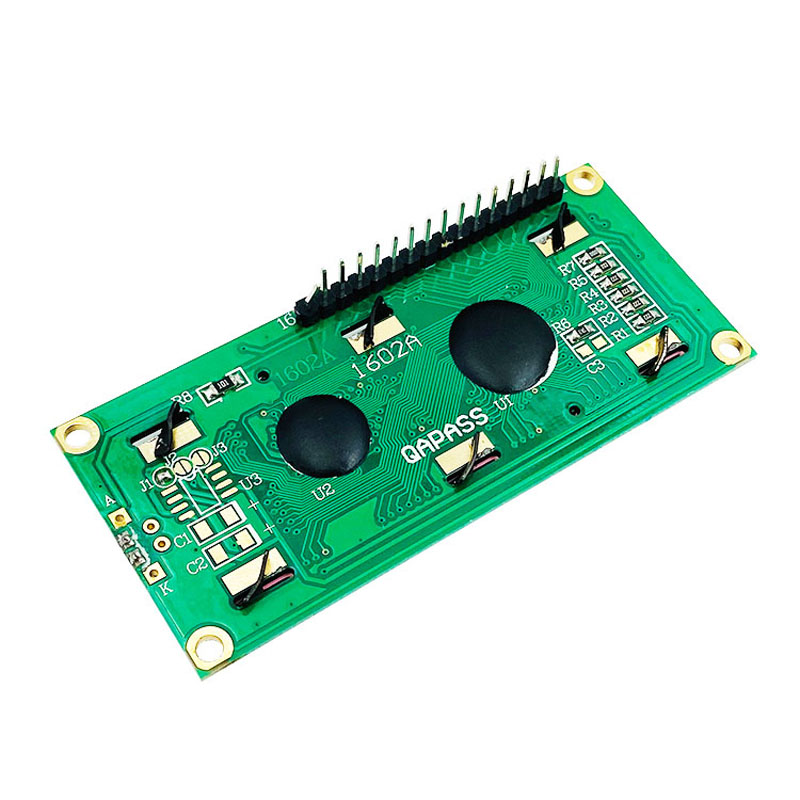

LCD Display Screen 1602A Module
Product Introduction:
The LCD1602A character LCD display module is a dot matrix LCD display module designed specifically for displaying letters, numbers, symbols, etc.
It is divided into 4-bit and 8-bit data transmission methods. Provide 5x7 dot matrix+cursor display mode. Provide a display data buffer DDRAM, a character generator CGROM, and a character generator CGRAM, which can store up to 8 self-defined font data of 5x8 dot matrix graphic characters.
Provide rich command settings: clear display; Cursor return to origin; Display on/off; Cursor on/off; Flashing display characters; Cursor movement; Display shift elements. Provide an internal power on automatic reset circuit. LCD1602A is an environmentally friendly LCD display module.
Parameter Range:
●Logic working voltage (Vdd): 4.8~5.2V
●LCD drive voltage (Vdd Vo): 3.0~5.0V
●Operating temperature (Ta): -20~+70 º C (wide temperature)
●Storage temperature (Tsto): -30~+80 º C (wide temperature)
●Operating current (excluding backlight): 1.7 mA (MAX)
●Operating current (backlight): 24.0 mA (MAX)
1602 LCD Features:

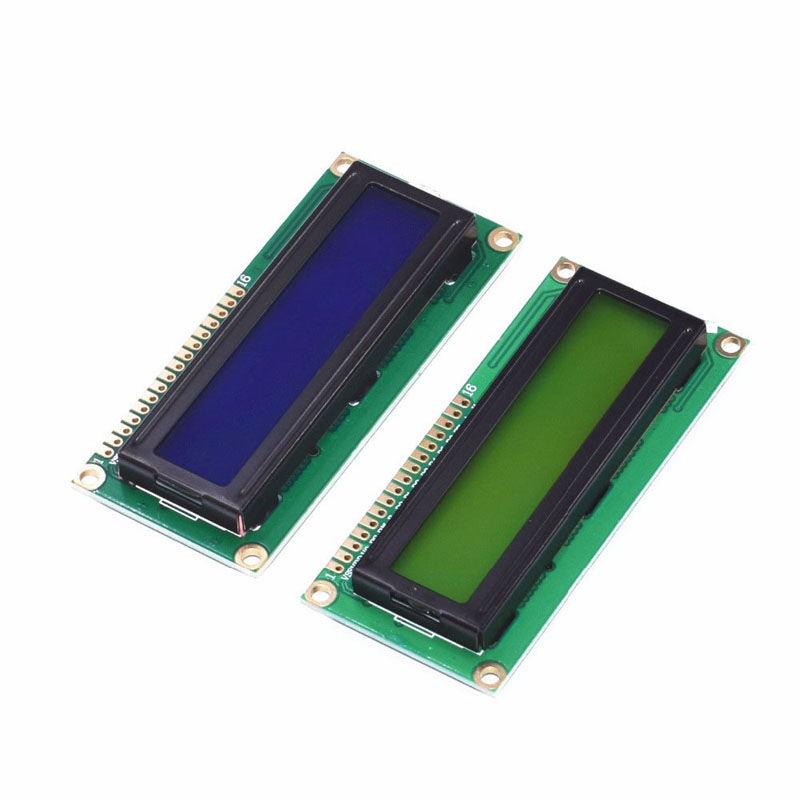

●LCD display module with blue and black light.
●Wide viewing angle and high contrast.
●Built in industry standard HD44780 equivalent LCD controller.
●Commonly used in network devices such as copiers, fax machines, laser printers, industrial testing equipment, routers, and storage devices.
●LCM type: character
●It can display 2 lines X 16 characters.

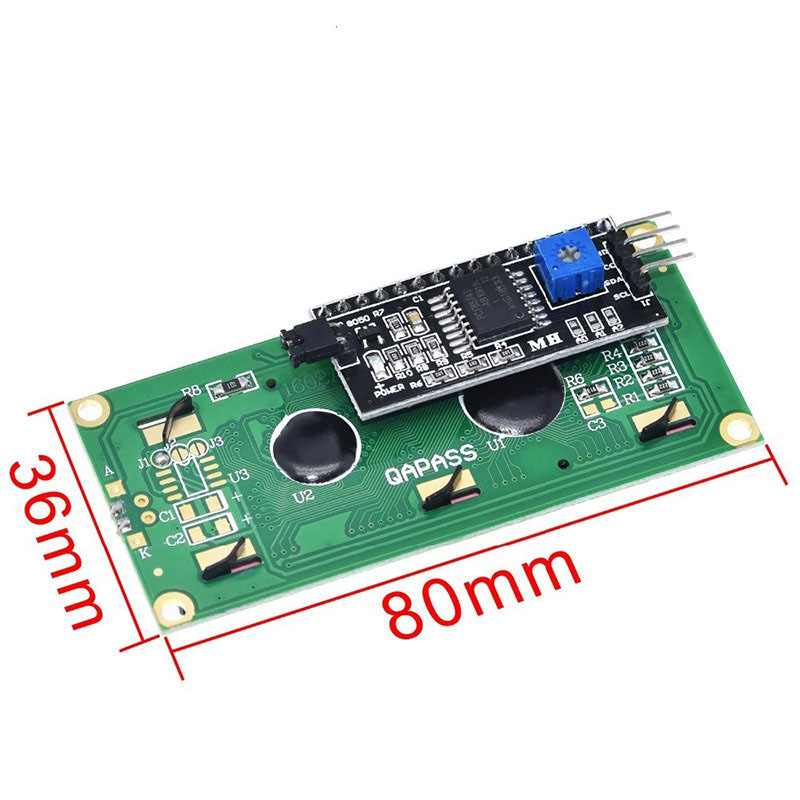

●Module size: 80mm x 35mm x 11mm.
●Display area size: 64.5mm x 16mm
