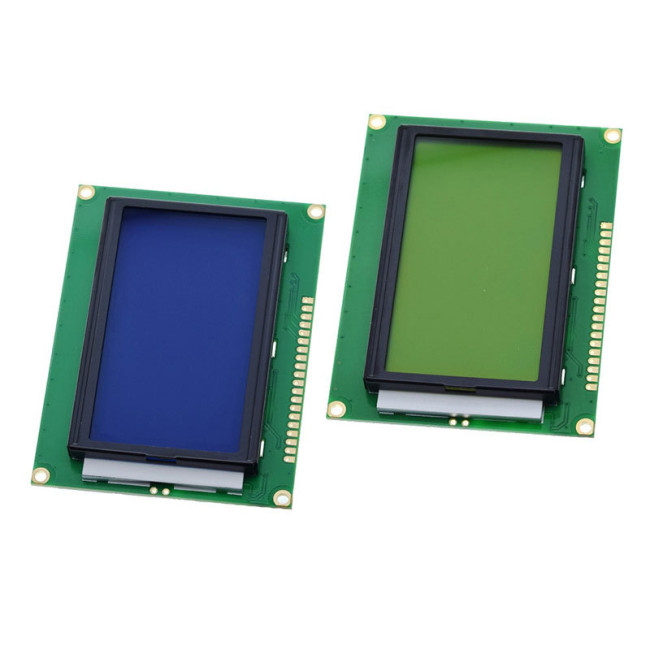

LCD 12864B Blue Screen Yellow Green Screen LCD Display Screen 128*64 With Backlight IIC12C 12864B-5V

LCD 12864B Blue Screen Yellow Green Screen LCD Display Screen 128*64 With Backlight IIC12C 12864B-5VItem NO.: LCD 12864B

US$ 10.71
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
LCD 12864B Blue Screen Yellow Green Screen LCD Display Screen 128*64 With Backlight IIC12C 12864B-5V
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • LCD 12864B Display Screen



    Function Introduction:



    LCD12864 is a dot matrix graphic LCD display module with multiple interface modes of 4-bit/8-bit parallel, 2-wire or 3-wire serial, and contains a national standard level 1 and level 2 simplified Chinese font library; Its display resolution is 128 × 64, with built-in 8192 16 * 16 point Chinese characters and 128 16 * 8 point ASCII character sets. By utilizing the flexible interface mode and simple and convenient operation instructions of this module, a fully Chinese human-machine interactive graphical interface can be formed. Can display 8 × 4 Rows 16 × 16 dot matrix Chinese characters It can also complete graphic display.



    Parameters And Characteristics:



    ● Power supply: VDD 3.3V~+5V (built-in boost circuit, no negative pressure required)

    ● Display content: 128 columns x 64 rows

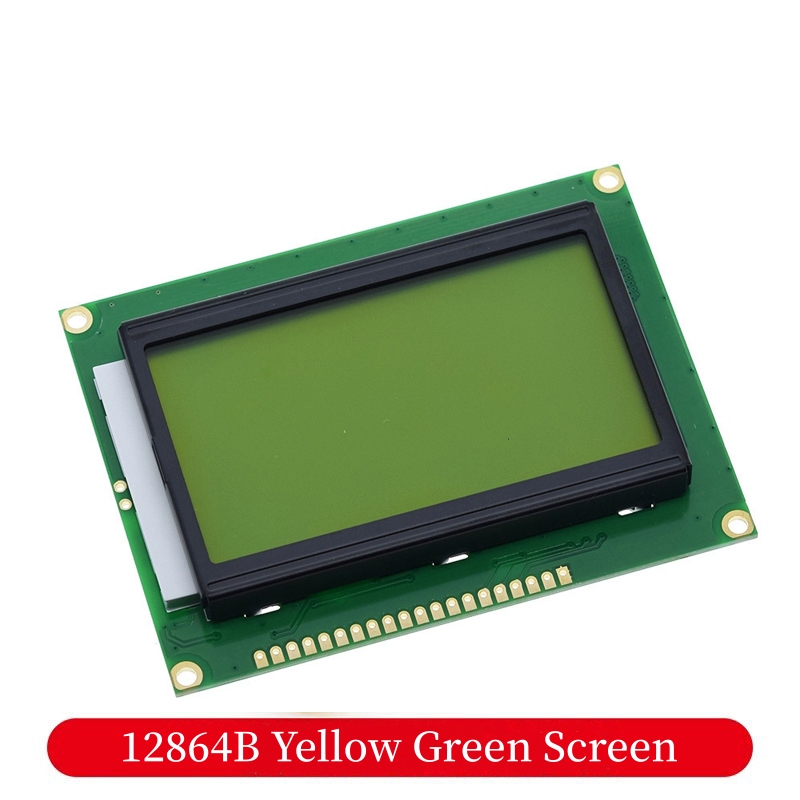

    ● Display color: yellow green/blue screen

    ● Display angle: 6:00 hours direct view

    ● LCD type: STN

    ● Interface with MCU: 8-bit or 4-bit parallel/3-bit serial

    ● Configuration of LED backlight

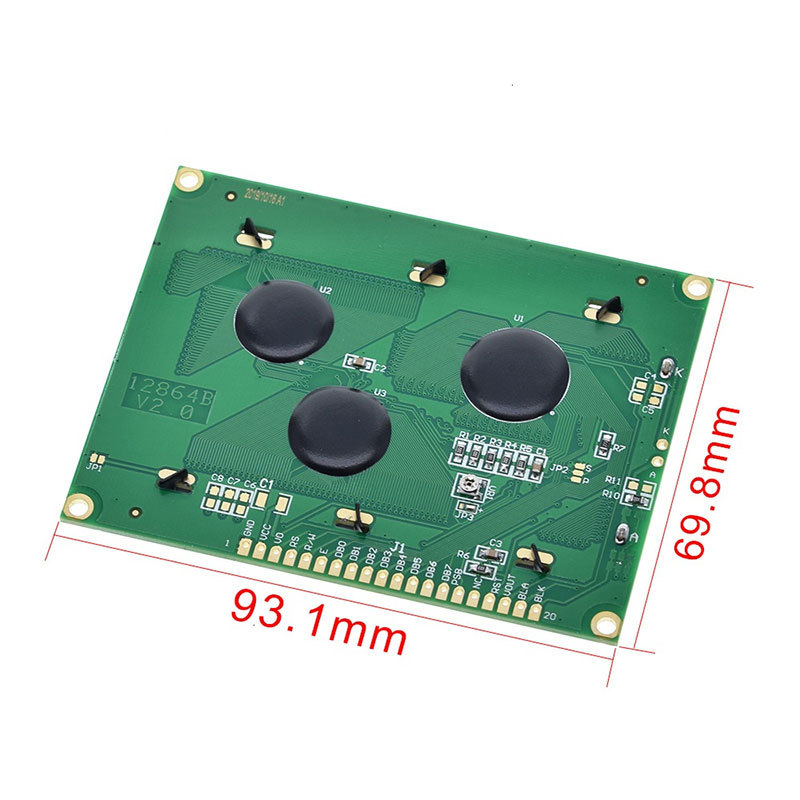

    ● Size: 93x7 0x 12.5mm

    ● Sight size: 73x39mm
