400W DC-DC High-power Constant Voltage and Constant Current Boost Power Module LED Boost Drive Laptop Battery ChargingItem NO.: DC400W
-
Customized Requirements
- Quantity
-
-
- Product Name: 400W DC-DC High-power Constant Voltage and Constant Current Boost Power Module LED Boost Drive Laptop Battery Charging
- Item NO.: DC400W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC-DC , 400W , Constant Voltage and Constant Current , Boost Power Module , LED Boost Drive Laptop Battery Charging
- Creation Time: 2024-05-13

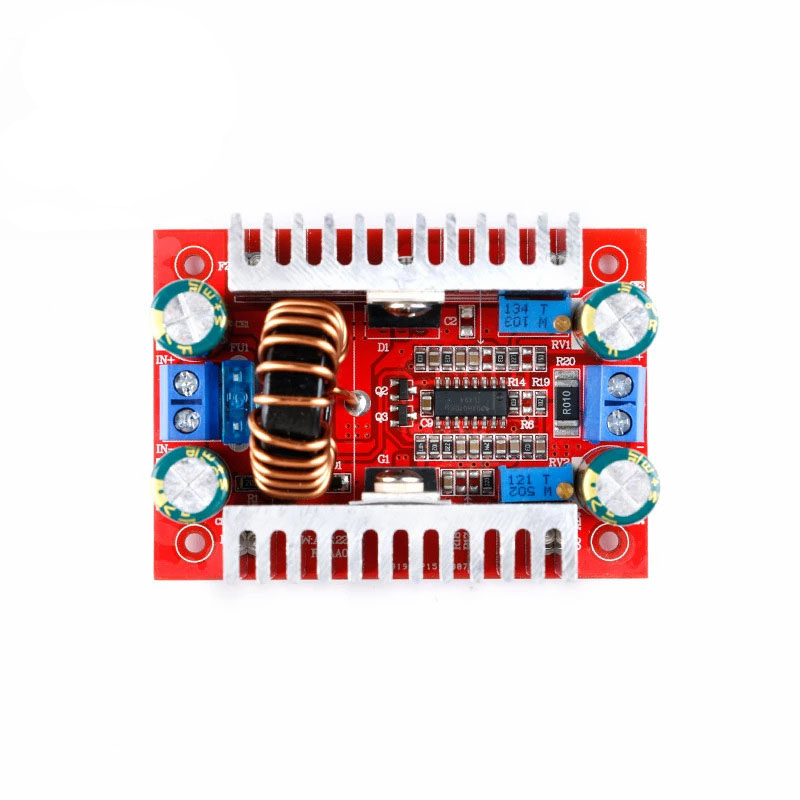

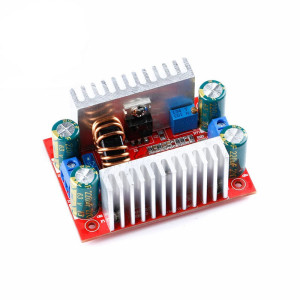

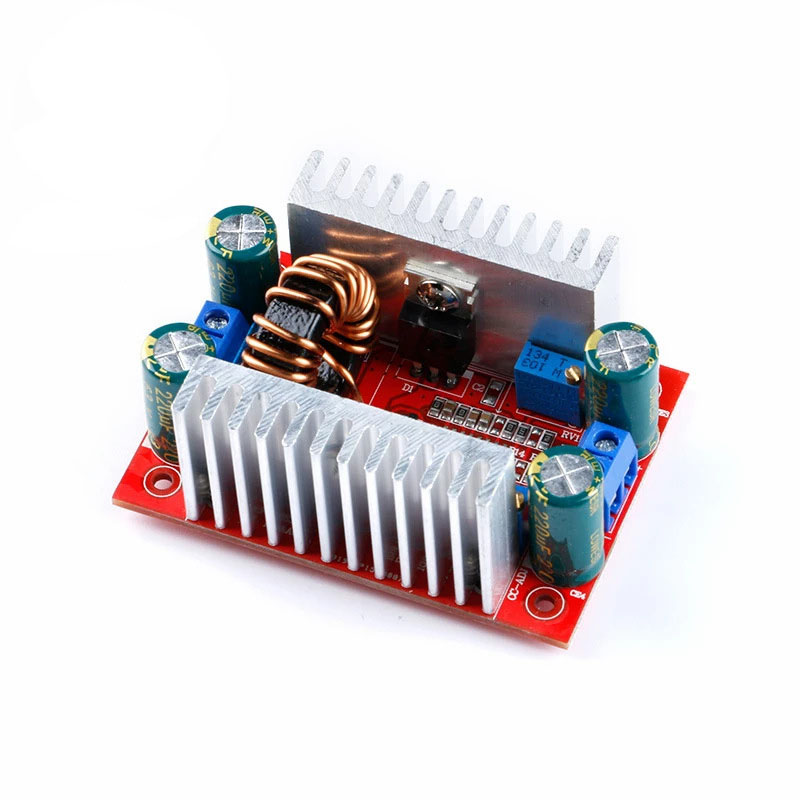

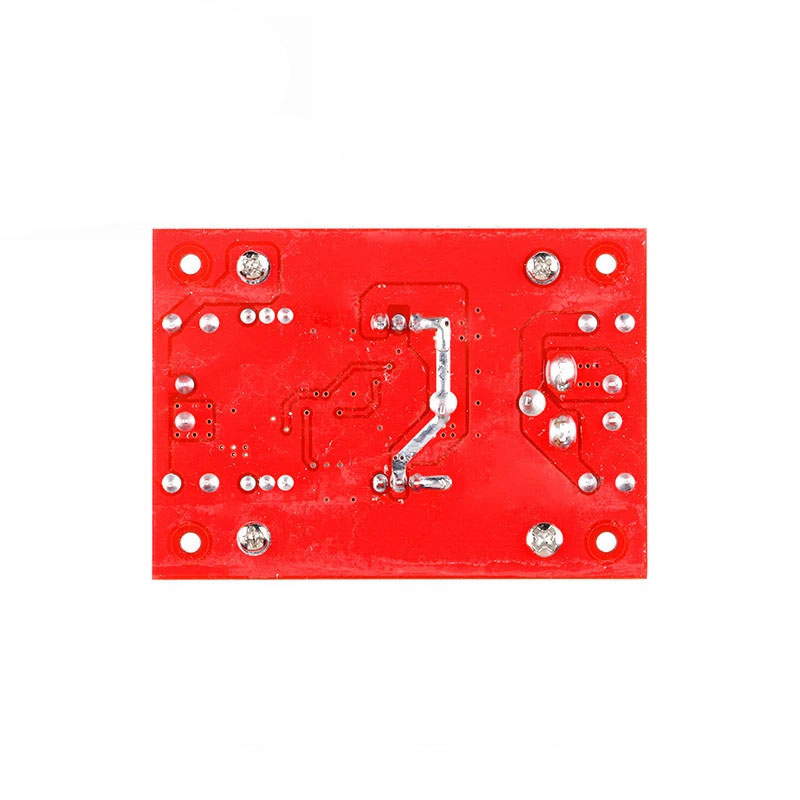

400W DC-DC Boost Power Module
Module parameters:
【 Module Name 】: 400W Boost Constant Current Module
【 Module Nature 】: Non isolated Booster Module (BOOST)
【 Input voltage】: DC8.5V-50V
【 Input Current】: 1 (MAX) If it exceeds 8A, please strengthen heat dissipation
【 Static working current】: 10mA (When 12V rises to 20V, the higher the output voltage, the higher the static current will increase)
【 Output Voltage】: 10-60V continuously adjustable (default output 19V for shipment, please explain to the shopkeeper if other voltages are needed) 12-80V fixed output (for bulk customers)
【 Output Current 】: 12A MAX exceeds 7A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)
【 Constant current range】: 0.2-12A
【 Output Power】:=Input Voltage * 10A, for example: Input 12V *=60W, Input 24V *=120W, Input 36V *=180W, Input 48V *=240W,
【 Working temperature】: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
【 Working frequency】: 150KHz
【 Conversion efficiency】: 96% (efficiency is related to input and output voltage, current, and voltage difference)
【 Overcurrent protection】: Yes (If the input exceeds 1, the output voltage will be automatically reduced, with a certain range of error.)
【 Input reverse protection】: None, (If you need a higher reverse current, please input a diode in series)
【 Installation method】: 4 2.5mm screw holes
【 Wiring Method】: Wiring Output

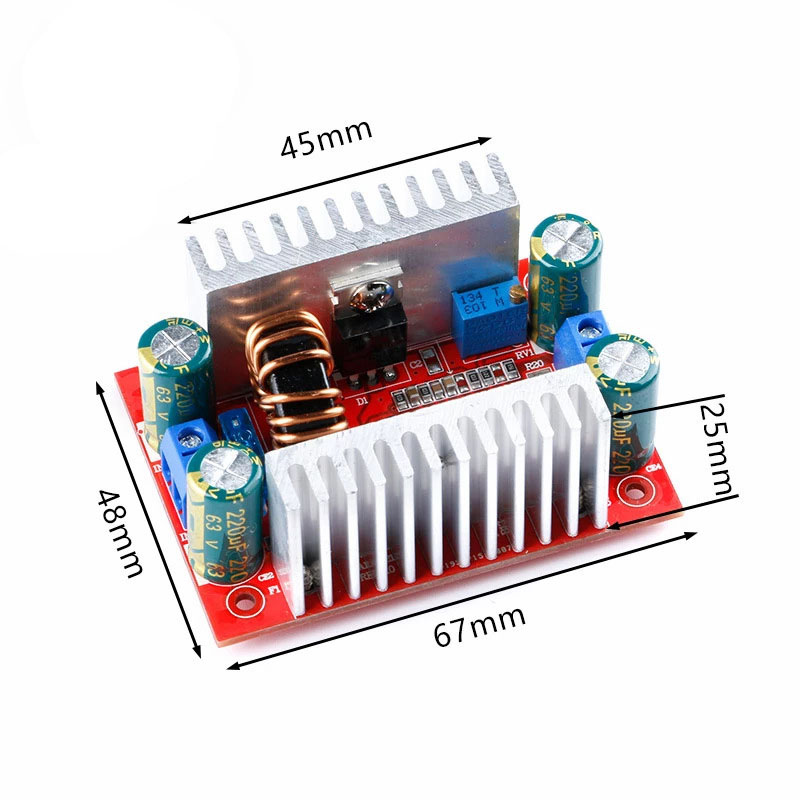

【 Module size】: 67mm in length, 48mm in width, and 28mm in height
【 Module weight】: 60g
