2A Speed Control Switch PWM DC Motor Speed Controller 1.8V 3V 5V 6V 12V Switch Function 1803BKItem NO.: MK00109
-
Customized Requirements
- Quantity
-
-
- Product Name: 2A Speed Control Switch PWM DC Motor Speed Controller 1.8V 3V 5V 6V 12V Switch Function 1803BK
- Item NO.: MK00109
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 2A , Speed Control Switch , PWM DC Motor Speed Controller , 1.8V 3V 5V 6V 12V , Switch Function
- Creation Time: 2024-05-15

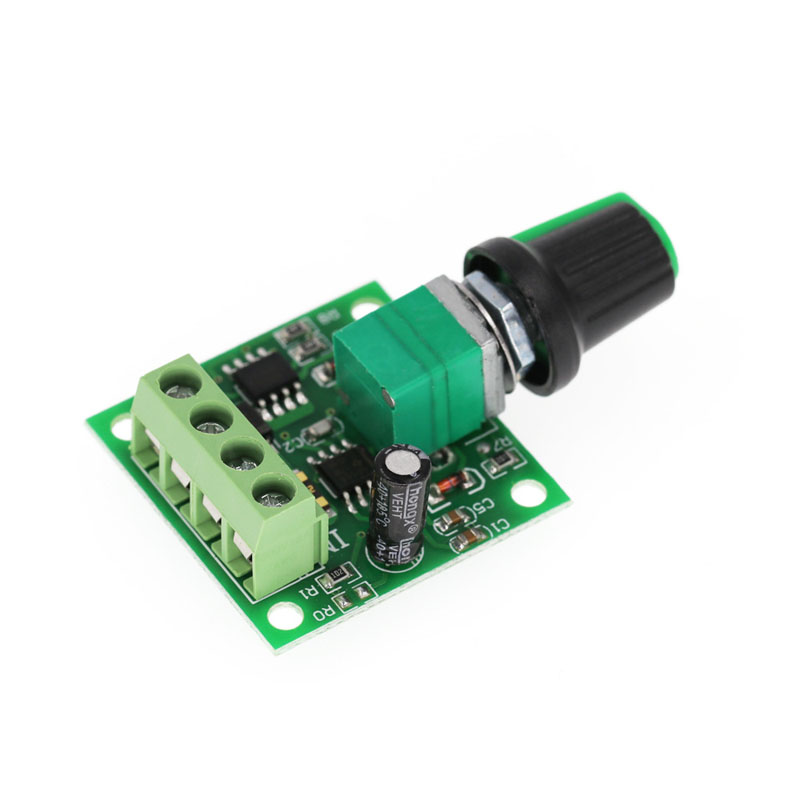

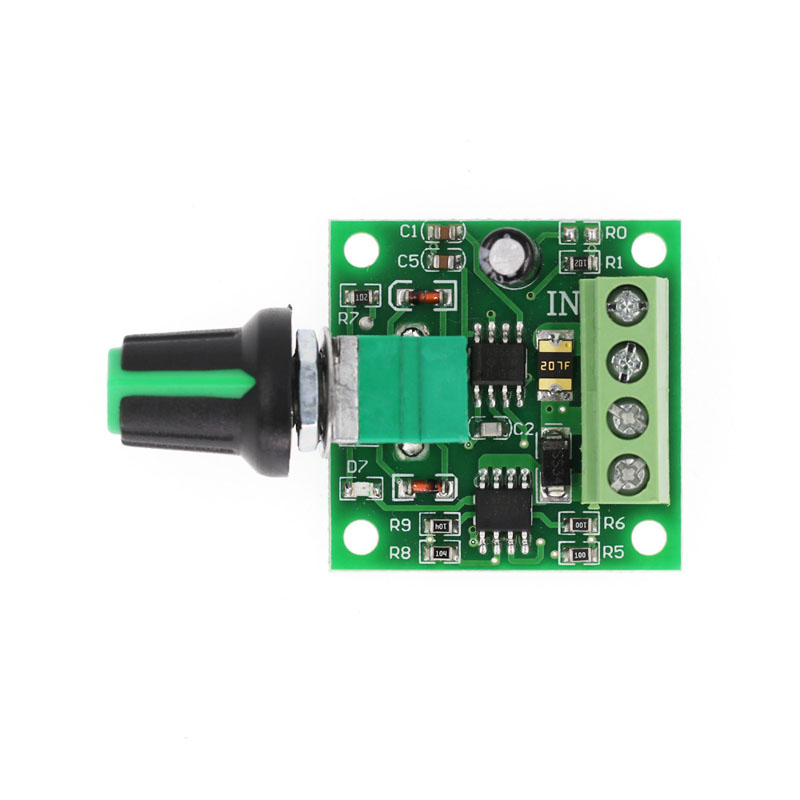

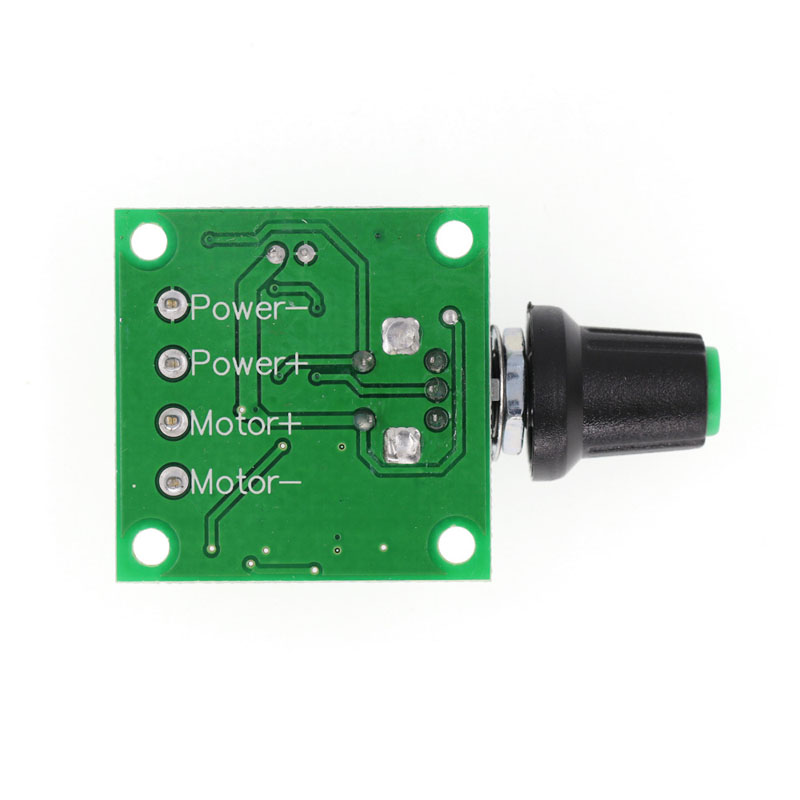

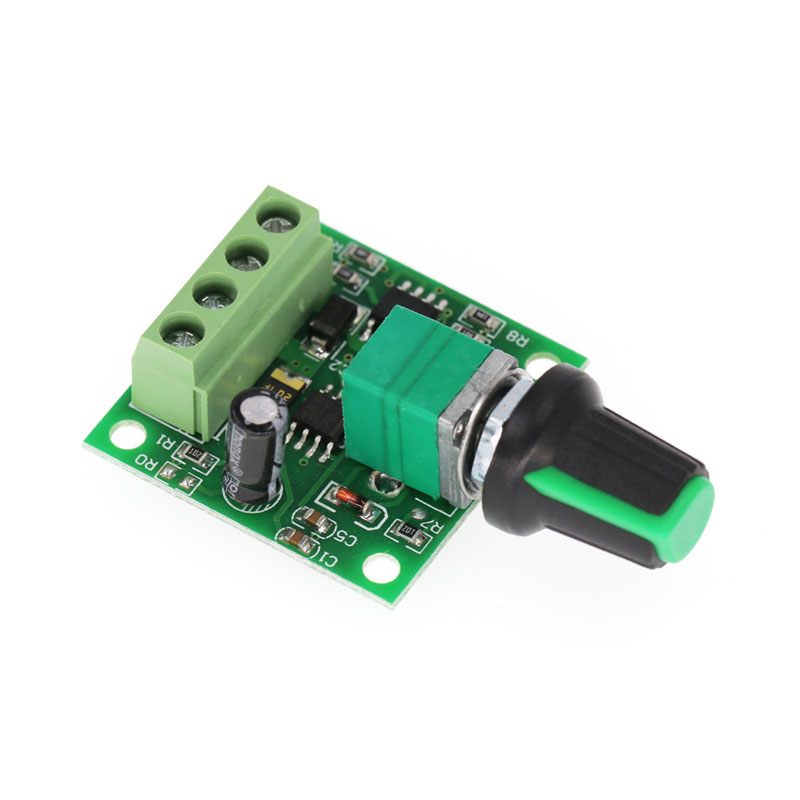

2A Speed Control Switch
Product Features:
● Ultra low voltage DC motor speed regulator
● Within the voltage range of input DC1.8-15V
● Applicable current within 2A
● With switch function
● The product is equipped with a self recovery fuse,
● Automatic disconnection when the current is too high, and automatic recovery of the fuse after cooling, very practical!
● Size: 32mm in length and width * 32mm in height, approximately 14mm
● Net weight: 14g
Special Reminder:
● The DC motor speed regulator should not be directly connected to household 220V AC power, otherwise the consequences of damage will be borne by oneself!
● This is a governor with a maximum current of 2A, with a continuous current greater than 0.5A. The 775 motor and children's car motor cannot be operated, so don't buy them wrong. It is not recommended to supply power greater than 12V, such as a 12V lead-acid battery, which may cause damage to the governor.
