Detail

- Product Name: MFRC-522 RC522 Mini RFID RF IC Card Sensing Module White Card+Keychain Access Control Module
- Item NO.: RC522
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: MFRC-522 , RC522 , RFID RF IC Card Sensing Module , Access Control Module
- Creation Time: 2024-04-17

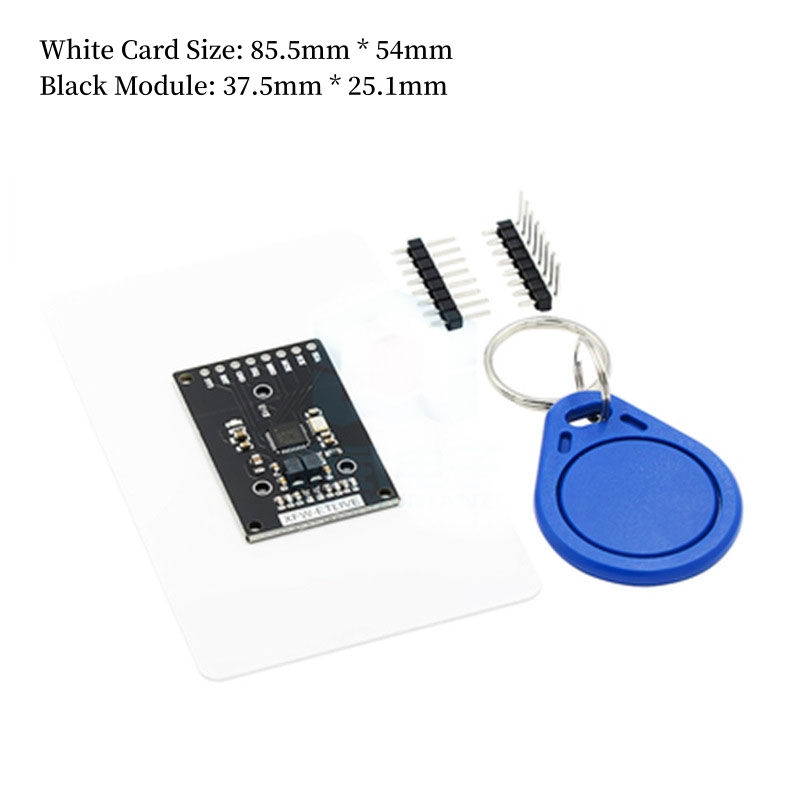

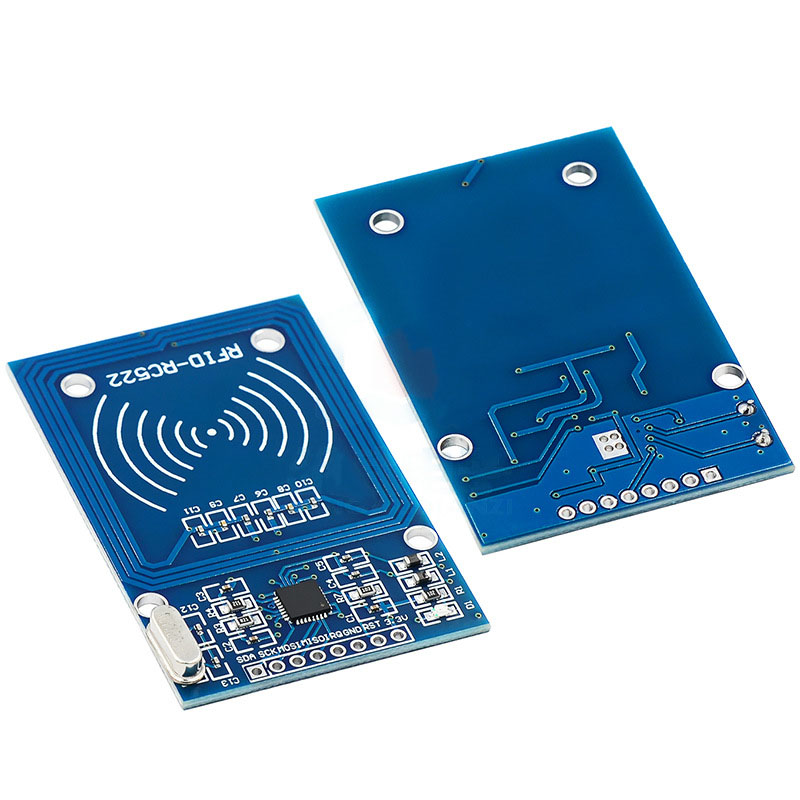

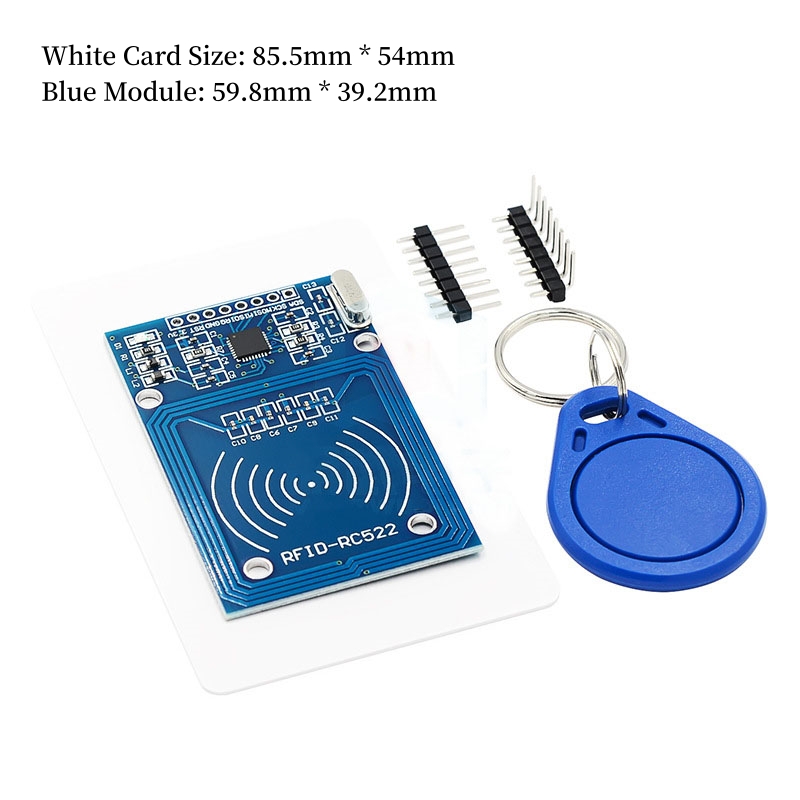

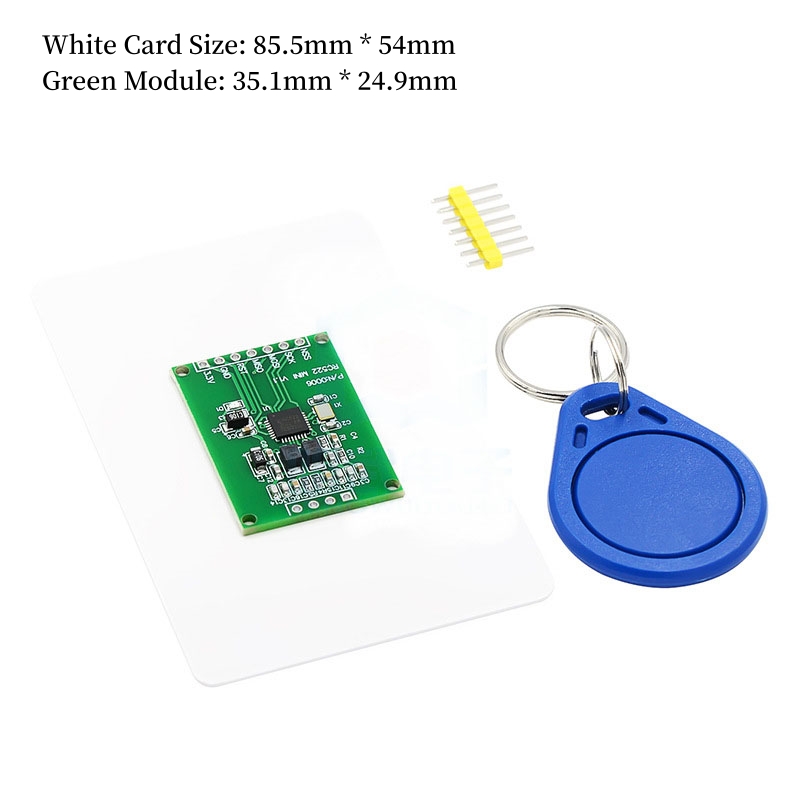

RC522 RFID RF IC Card Sensing Module

Introduction To RC522 Chip:

MF RC522 is a highly integrated read-write card chip used in 13.56MHz non-contact communication. It is a low voltage, low-cost, small size non-contact read-write card chip. It is a good choice for the research and development of intelligent instruments and portable handheld devices

The MF RC522 makes use of advanced modulation and demodulation concepts and fully integrates all types of passive non-contact communication modes and protocols at 13.56MHz. Support 14443A compatible transponder signal. The digital part processes ISO14443A frame and error detection. In addition, it also supports fast CRYPTO1 encryption algorithm to verify MIFARE series products.

MFRC522 supports higher speed non-contact communication of MIFARE series, with bidirectional data transmission rate up to 424kbit/s. As a new member of the 13.56MHz highly integrated read-write card family, the MF RC522 has many similarities with the MF RC500 and MF RC530, as well as many characteristics and differences. The SPI mode is used for communication between it and the host, which is conducive to reducing the connection, reducing the volume of PCB board and reducing the cost.
