Microcontroller RDM6300 ID Card Reader Module RFID RF Module UART Serial Port OutputItem NO.: RDM6300
-
Customized Requirements
- Quantity
-
-
- Product Name: Microcontroller RDM6300 ID Card Reader Module RFID RF Module UART Serial Port Output
- Item NO.: RDM6300
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: Microcontroller RDM6300 ID Card Reader Module , RFID RF Module
- Creation Time: 2024-04-17

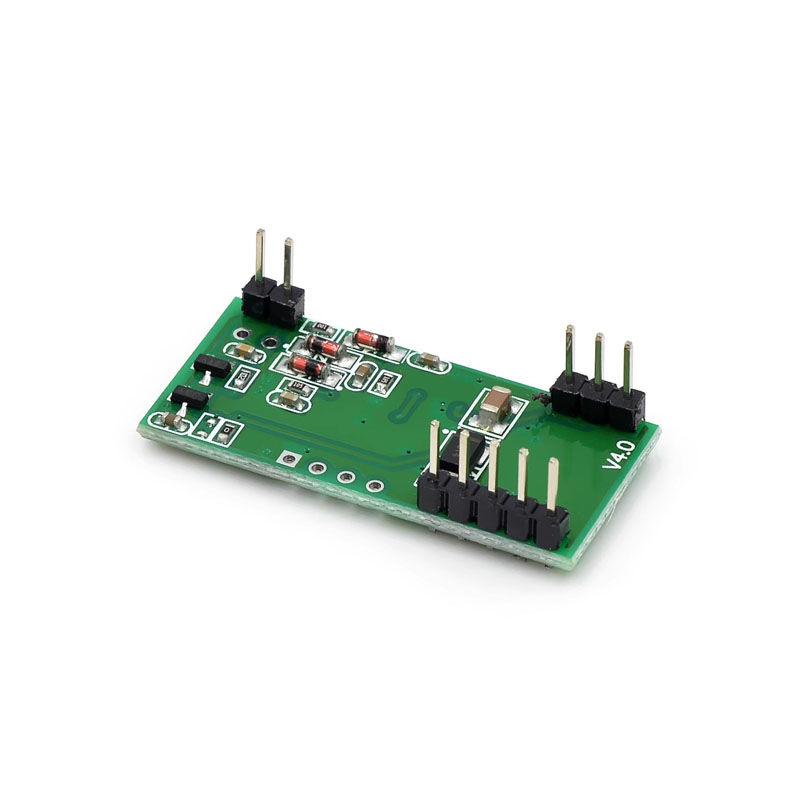

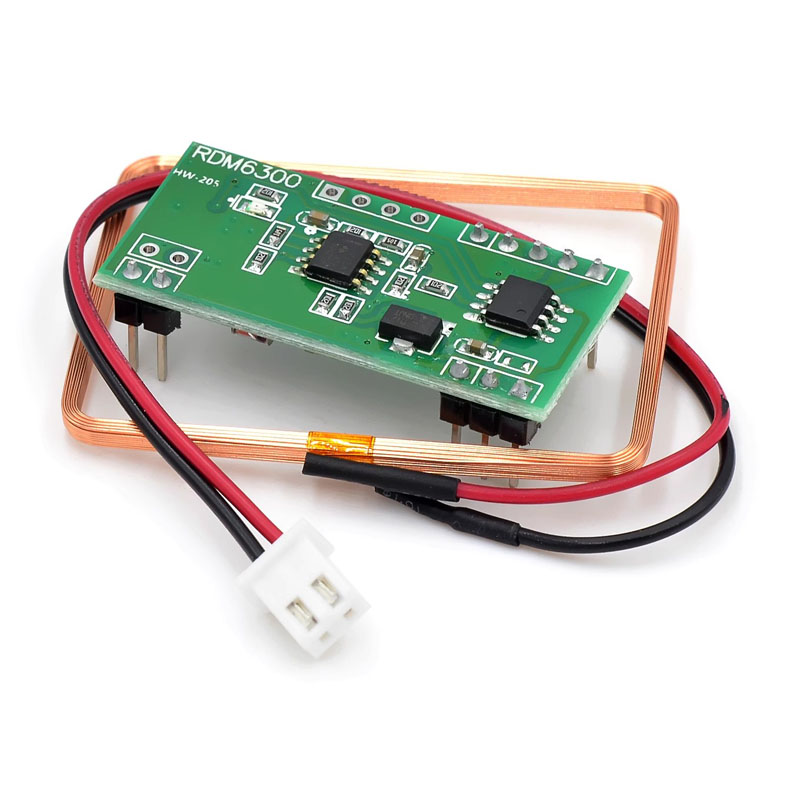

RDM6300 125Khz RFID Read-Write Module
Product Information:
RDM630 series non-contact RF ID card special module uses advanced RF receiving circuit and embedded microcontroller design, combined with efficient decoding algorithm, to complete the data reception of EM4100 compatible ID card. It has the characteristics of high reception sensitivity, low working current, high stability, and is applicable to various RFID applications such as access control, attendance, toll collection, anti-theft, patrol and so on. The maximum card reading distance is 5cm. The coil inductance is 47~68uH.
The RFID card reading supporting module commonly used by foreign users can read 125K EM4100 series RFID cards. The module is convenient to use. After power supply, the serial port is connected to the main board. When an RFID card enters the card reading range, the module will directly send the card number to via UART. Simple access control can be realized by connecting with relay module.
Detailed Parameters:
● Frequency: 125KHz
● Baud rate: 9600
● Interface type: TTL level RS232 format
● Working voltage: DC5V (± 5%)
● Working current:<50mA
● Receiving range: 20~50mm (depending on antenna, card and surrounding environment)
● Working temperature: - 10 ℃~+70 ℃
● Storage temperature: - 20 ℃~+80 ℃
● Maximum relative humidity: 0~95%

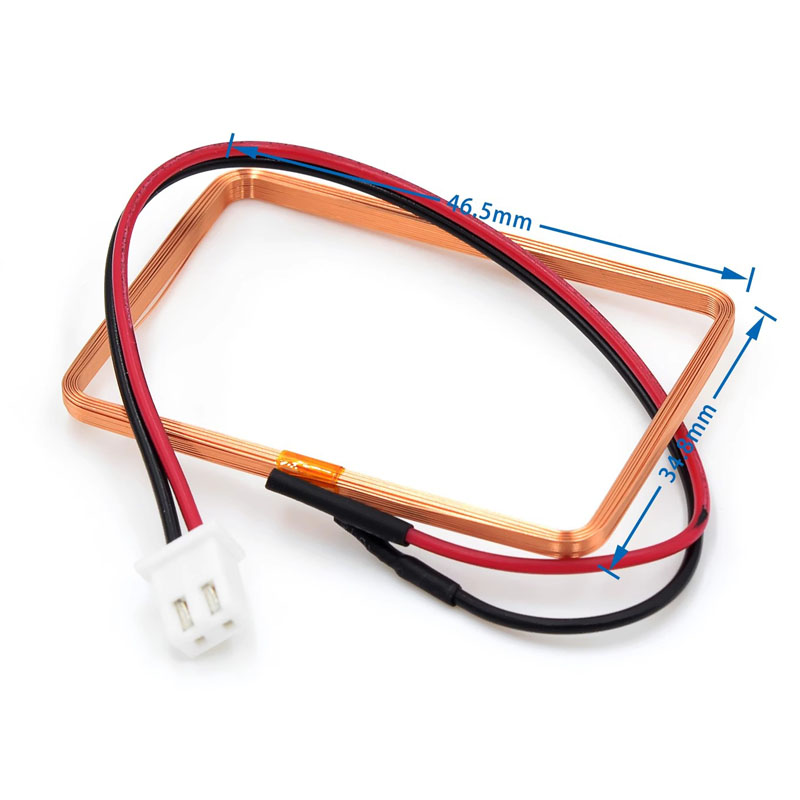

● Coil size: 46mm * 32mm * 3mm

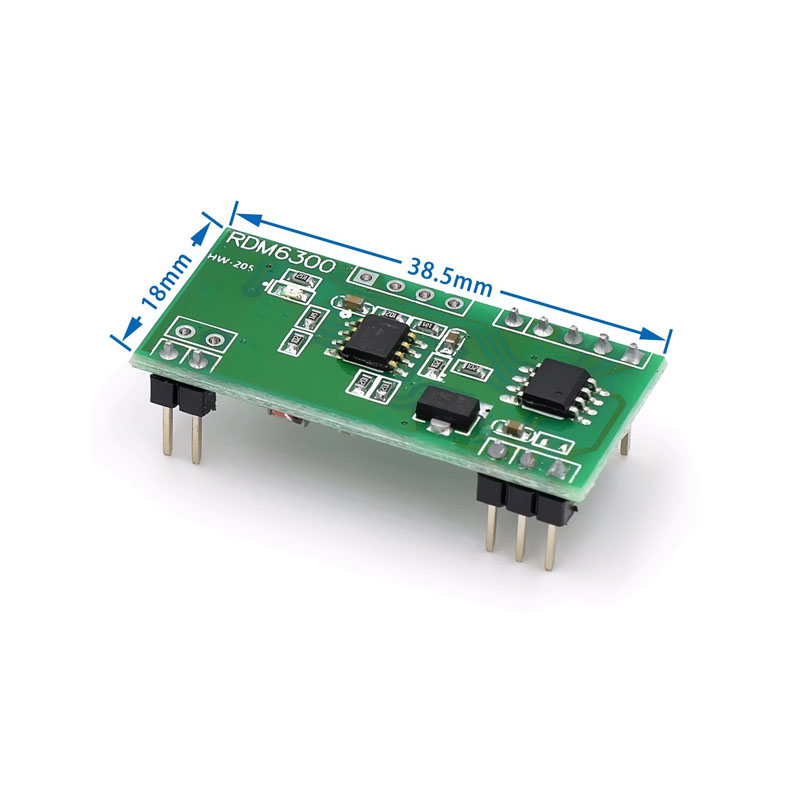

● Module size: 38.5mm * 19mm * 9mm
