- Product Name: GY-30 Digital Light Intensity Module Light Sensor Module BH1750FVI
- Item NO.: GY-30
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: BH1750FVI , GY-30 , Digital Light Intensity Module , Light Sensor Module
- Creation Time: 2024-04-16

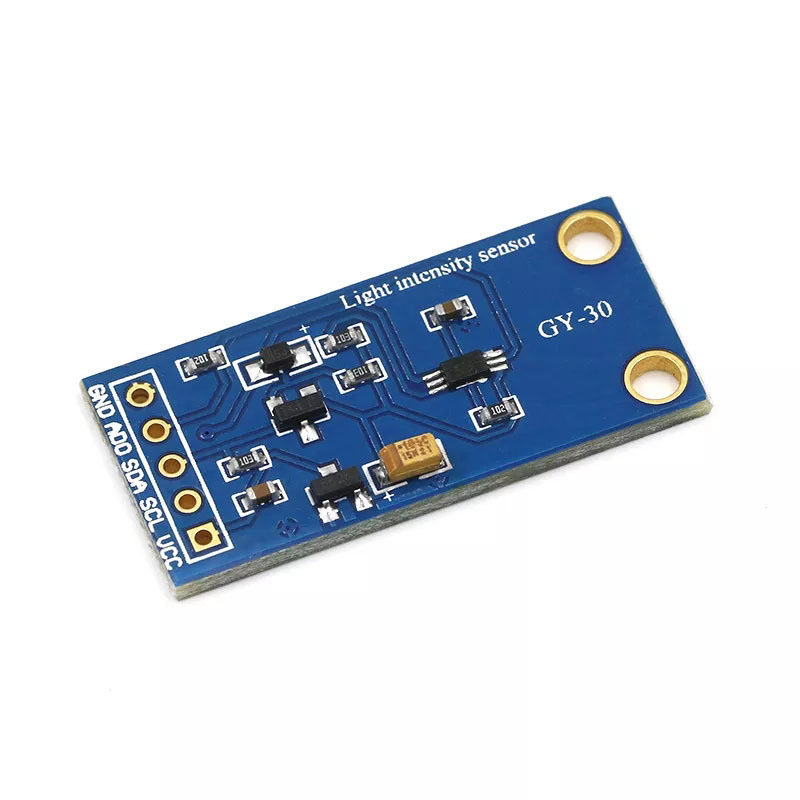

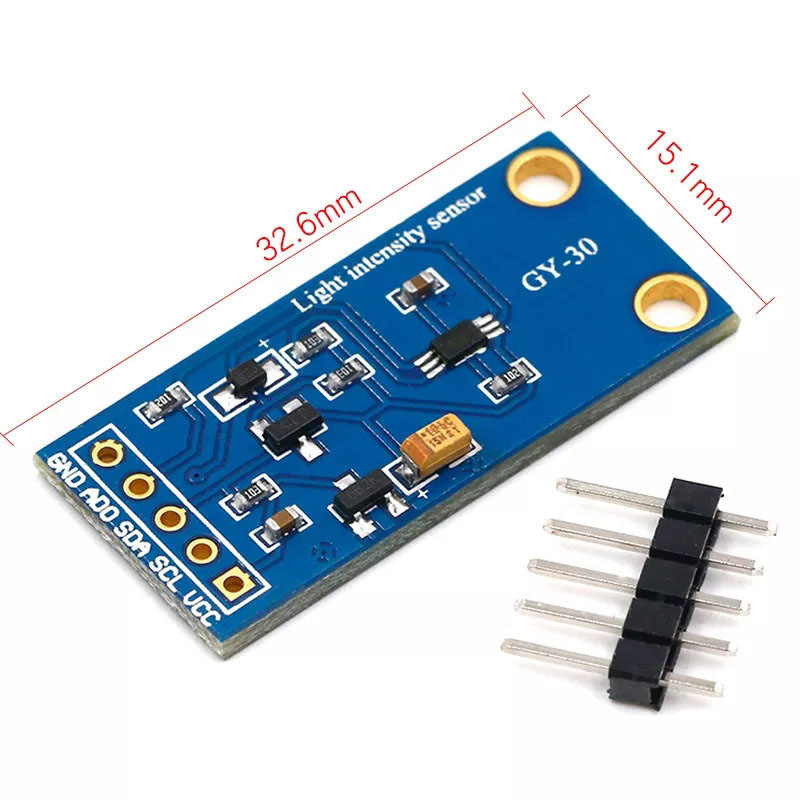

GY-30 Light Sensor Module BH1750FVI
Product Parameters:
● Adopt BH1750FVI chip
● Power supply: 3-5 V
● Illumination range: 0-65,535IX
● Sensor built-in 16bit AD converter
● Direct digital output, omitting complex calculation, omitting calibration, and not distinguishing ambient light sources. It is close to the spectral characteristics of visual sensitivity, and can be used for high-precision measurement of 1 lux for a wide range of brightness
● Standard NXPICC communication protocol
● Communication level conversion is included in the module, which is directly connected with 5V MCU IO

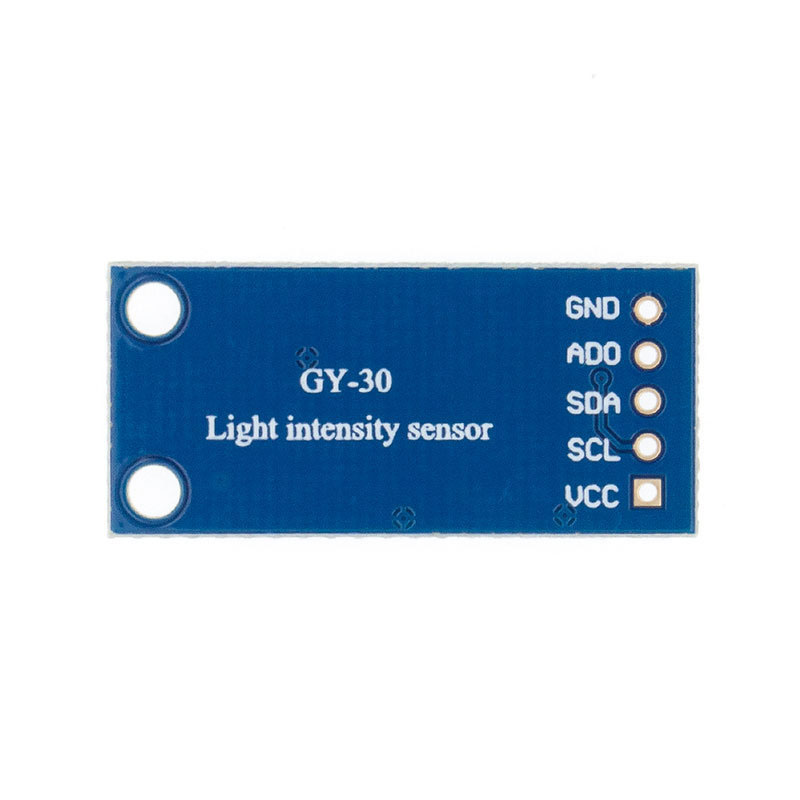

Pin Description:
● VCC: power supply 3-5 V
● SCL: IIC bus clock pin
● SDA: IIC bus data pin
● ADDR BH1750: IIC device address pin
● GND: power ground

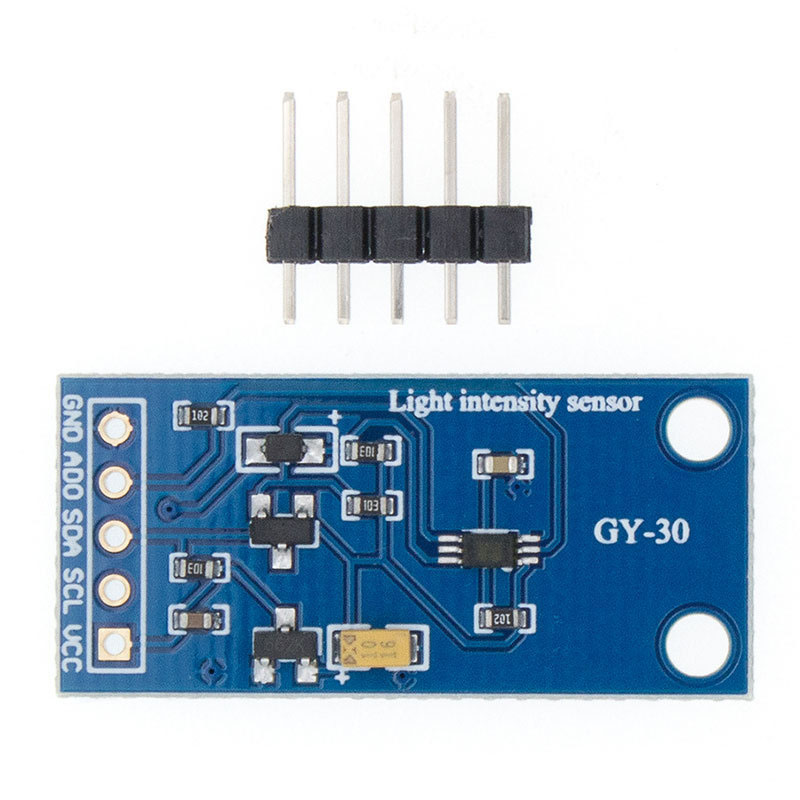

1 Chip BH1750FVI
2 Low power 3.3V regulator (3V-5V power supply compatible)
3-Level conversion (3V-5V system communication compatible)
